1310nm long-distance collimating lens

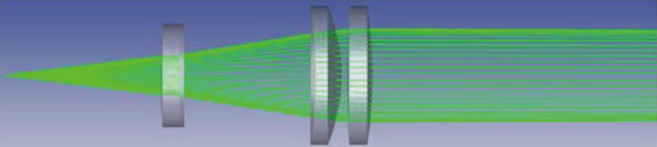

The fiber output can be collimated and shaped for different laser outputs from fiber connections, providing diffraction-limited performance at the designed wavelength with collimation distances up to 200 meters. The design of this series of collimating lenses is compact and unaffected by misalignment. During design, image aberration correction is applied, and a double-lens series with air spacing is chosen for excellent collimation performance. The effective focal length of the double-lens is wavelength-dependent. Therefore, this series of collimating lenses should be used at the designed wavelength for optimal performance.

Product features：Fiber Collimator with FC/APC, FC/PC, or SMA Connectors、 Usable for wavelength range from 405 nm to 1.55 μm、 Simplifies free-space laser-to-fiber coupling、 Double-lens design with aberration correction

Application area：

Unit Price

Please contact customer service for a discounted quote.

Part Number

NIR-CLM-1310-12.9-0.007-95

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing


Beam waist spot diameter: Taken at the 1/e² point of the Gaussian beam, calculated using the theoretical value for single-mode fiber at each wavelength.
Far-field divergence angle of the beam: The input uses single-mode fiber for each wavelength, with the divergence angle calculated according to the theoretical value of a Gaussian beam at the 1/e² point.
Tolerance: + 0.01° / 0.0°

Technical Parameters

Central Wavelength	Lens Coating Wavelength	Beam Waist Diameter (at 1/e²)	Beam Divergence Angle (Far Field)	Effective Focal Length	Numerical Aperture (Lens)	Fiber Type	Transmittance
405nm	400-700nm	10.2mm	0.005°	66.5mm	0.19	405HP	>95%
450nm	400-700nm	13.7mm	0.004°	68.4mm	0.18	405HP	>95%
520nm	400-700nm	14.2mm	0.003°	70.3mm	0.18	460HP	>95%
635nm	400-700nm	14.5mm	0.004°	72.1mm	0.17	630HP	>95%
780nm	650-1050nm	14.2mm	0.004°	73.3mm	0.17	780HP	>95%
850nm	650-1050nm	14.9mm	0.004°	73.7mm	0.17	780HP	>95%
980nm	650-1050nm	15.0mm	0.005°	74.2mm	0.17	980HP	>95%
1064nm	1050-1650nm	15.2mm	0.005°	74.5mm	0.17	980HP	>95%
1310nm	1050-1650nm	12.9mm	0.007°	75.1mm	0.17	SMF-28e	>95%
1550nm	1050-1650nm	14.2mm	0.008°	75.6mm	0.17	SMF-28e	>95%
1650nm	1050-1650nm	14.5mm	0.008°	76.0mm	0.17	SMF-28e	>95%
