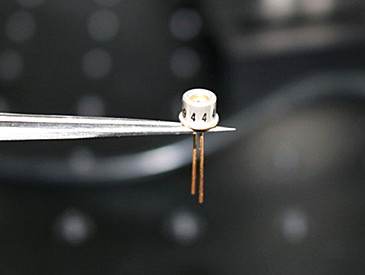

905nm 600W high peak power pulse laser with 8nm spectral width TO56 (for laser rangefinder)

The pulse semiconductor laser module of LD-PD is a 905nm InGaAs/GaAs strain quantum well laser tube that can be driven separately in the 45A version. The laser has a current injection width of 200 microns and a chip height of 10-480 microns. We now offer 9mm packaging, 5mm packaging, and 18F fiber coupling packaging for laser diode packaging design and assembly processing technology. The rise and fall time of quantum well laser design is less than 1ns, but the driving circuit layout and packaging inductance play a dominant role and should be designed accordingly.

Product PN#	product name	Center wavelength	Peak power	Other parameters
PL-QWLD-600-TO56	905nm high peak power pulsed semiconductor laser with spectral width of 8nm 600W	905nm	600W		Add Inquiry

905nm High Peak Power Pulse Laser 35/75W (High Voltage Testing Field)

The SPL-PL90-3 ST pulsed semiconductor laser module of AOS Fiber is a 905nm InGaAs/GaAs strain quantum well laser tube that can be driven separately in the 45A version. The laser has a current injection width of 200 microns and a chip height of 10-480 microns. We now offer 9mm packaging, 5mm packaging, and 18F fiber coupling packaging for laser diode packaging design and assembly processing technology. The rise and fall time of quantum well laser design is less than 1ns, but the driving circuit layout and packaging inductance play a dominant role and should be designed accordingly.

Product PN#	product name	Center wavelength	Peak power	Other parameters
SPL-PL90-3 ST	905nm high-power pulse laser	905nm	75W		Add Inquiry
SPL-PL90-ST	905nm standard power pulse laser	905nm	35W		Add Inquiry

1030/1064nm Ultra Short Nanosecond Pulse Seed OEM Laser Source 300mW

Ultra short nano pulse seed laser driver is an ideal choice for driving 14 pin butterfly packaged laser modules, suitable for applications with pulse widths less than 1ns. Applications include material processing, time-resolved spectroscopy, LIDAR, etc. The driving circuit is provided by a single 5V power supply. All other required voltages are generated on the circuit board through efficient power conversion. The driver provides a bidirectional proportional integral derivative controller (PID) thermoelectric cooler controller (TEC) with a current of 3A and a voltage of 4.2V. The DFB laser diode equipped with LD-PD inc 1020-1083nm can achieve ultrafast output with a pulse width of 1-10 ns and a peak power of 300mw.

Product PN#	product name	Center wavelength	Pulse width	Peak power	Repetition frequency
OP-1030-PM-300-ns	1030nm nanosecond ultra short pulse seed laser polarization maintaining output	1030nm	1-10 ns	300mW	6MHz	Add Inquiry
OP-1064-HI-300-ns	1064nm nanosecond ultra short pulse seed laser single-mode output	1064nm	1-10 ns	300mW	6MHz	Add Inquiry
OP-1064-PM-300-ns	Polarization maintaining output of 1064nm nanosecond ultra short pulse seed laser	1064nm	1-10 ns	300mW	6MHz	Add Inquiry
OP-1053-PM-300-ns	1053nm nanosecond ultra short pulse seed laser polarization maintaining output	1053nm	1-10 ns	300mW	6MHz	Add Inquiry

25W 1550nm high peak power pulse laser with a spectral width of 15nm (for laser rangefinder)

Xiaoxiao Photon's pulsed semiconductor laser is a high brightness CVLL 1550nm pulsed laser diode with a power output of up to 75 watts. CVLL devices are highly suitable for most distance measurement applications that require "eye safe" operation.

Product PN#	product name	Center wavelength	Peak power	Other parameters
CVLL350-CL90	1550nm high peak power pulsed laser with a spectral width of 15nm and 25W	1550nm	25W		Add Inquiry

1550nm high peak power pulsed fiber laser 1W (DTS, LiDAR)

The high peak power pulse light source for eye safety developed by Xiaoxiao Photon. The product has high electro-optical conversion efficiency, small nonlinear effects and ASE, and a wide operating temperature range. It is suitable as an emission light source for solid-state laser Lidar.

Product PN#	product name	Center wavelength	Output power	Other parameters
PL-FIBER-1-D4-110-SA	1550nm high peak power pulsed fiber laser (solid-state laser Lidar emission source)	1550nm	1W		Add Inquiry

1625nm high-power pulsed laser diode module

The SCW 1632-350R and SCW 1631F-350R laser diode modules are high-power 1625 nm RWG F/P laser diodes, packaged in a 14 pin butterfly and DIL configuration. The laser diode is optically coupled with the SMF fiber tail, and includes a thermoelectric cooler and an electrically isolated temperature sensing thermistor. The SCW 1632-350R and SCW 1631-F-35R laser diode modules are specifically designed for optical testing equipment applications that require high peak pulsed light power and comply with RoHS standards.

Product PN#	product name	Center wavelength	Spectral width	Optical power	Other parameters
SCW 1632-350R	1625nm high-power pulsed laser diode module (350mW)	1625nm	10nm	350mW		Add Inquiry

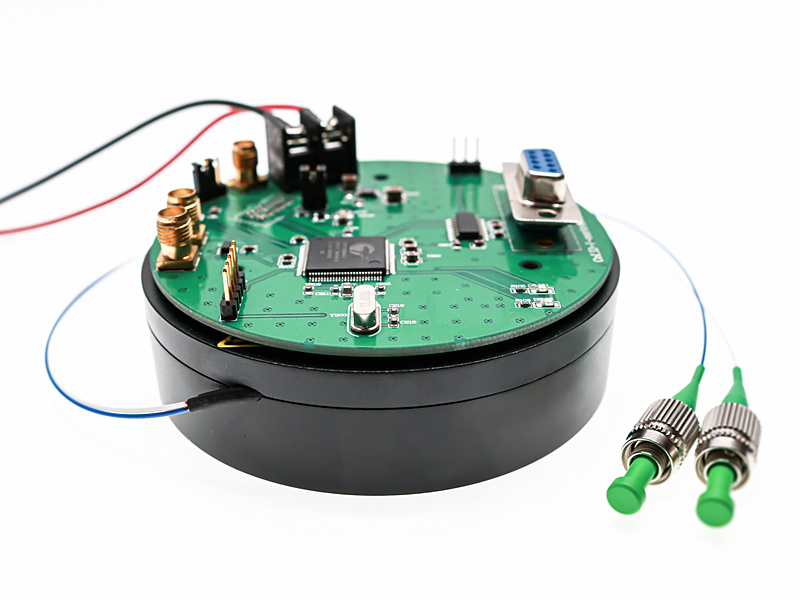

1550nm highly integrated polarization maintaining pulse light source (modular) 1.2 μ J

Xiaoxiao Photon's 1550nm pulse polarization maintaining light source is a pulsed fiber laser designed for short-range coherent Doppler wind lidar applications. The uniquely designed single frequency narrow linewidth seed source is technically recognized, with a linewidth less than 3KHz. When combined with an acousto-optic modulator, the 1550nm pulse light source produces a high turn off ratio pulse signal>100dB, an output polarization extinction ratio>18dB, and a single pulse energy of 1.2 μ J. It is an ideal light source for sensing applications such as laser radar.

Product PN#	product name	Center wavelength	Pulse width	Peak power	Other parameters
MP-PS-CW-O-FT-FL-CT-module	1550nm highly integrated polarization maintaining pulse light source module (1.2uJ)	1550nm	200ns	6W		Add Inquiry

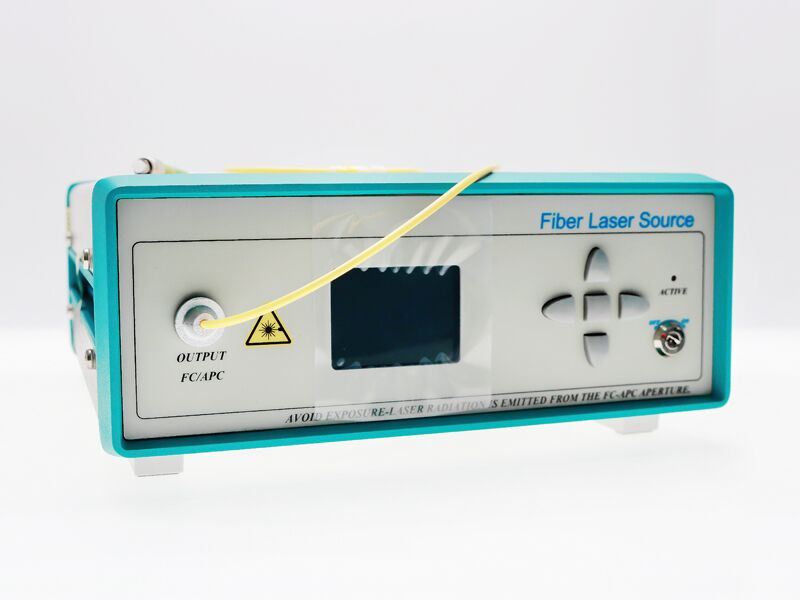

1550nm desktop high integration polarization maintaining pulse light source (1.2 μ J)

Xiaoxiao Photon's 1550nm pulse polarization maintaining light source is a pulsed fiber laser designed for short-range coherent Doppler wind lidar applications. The uniquely designed single frequency narrow linewidth seed source is technically recognized, with a linewidth less than 3KHz. When combined with an acousto-optic modulator, the 1550nm pulse light source produces a high turn off ratio pulse signal>100dB, an output polarization extinction ratio>18dB, and a single pulse energy of 1.2 μ J. It is an ideal light source for sensing applications such as laser radar

Product PN#	product name	Center wavelength	Pulse width	Peak power	Other parameters
MP-PS-CW-O-FT-FL-CT	1550nm desktop high integration polarization maintaining pulse light source (1.2uJ)	1550nm	20ns	6W		Add Inquiry

Miniature pulsed fiber laser 1535nm

This product is a 1550nm miniature pulse fiber laser developed by Xiaoxiao Shanghai Photon for human eye safety. It has high electro-optical conversion efficiency, low ASE, low power consumption, nonlinear effect noise, and a wide temperature working range. This product is suitable for use as an emitting light source for laser surveying and ranging.

Product PN#	product name	Center wavelength	Peak power	Repetition frequency	Other parameters
LSP-FLMP-1535-04-mini	1535nm Miniature Pulse Fiber Laser	1535nm	700W	0.5 MHz		Add Inquiry

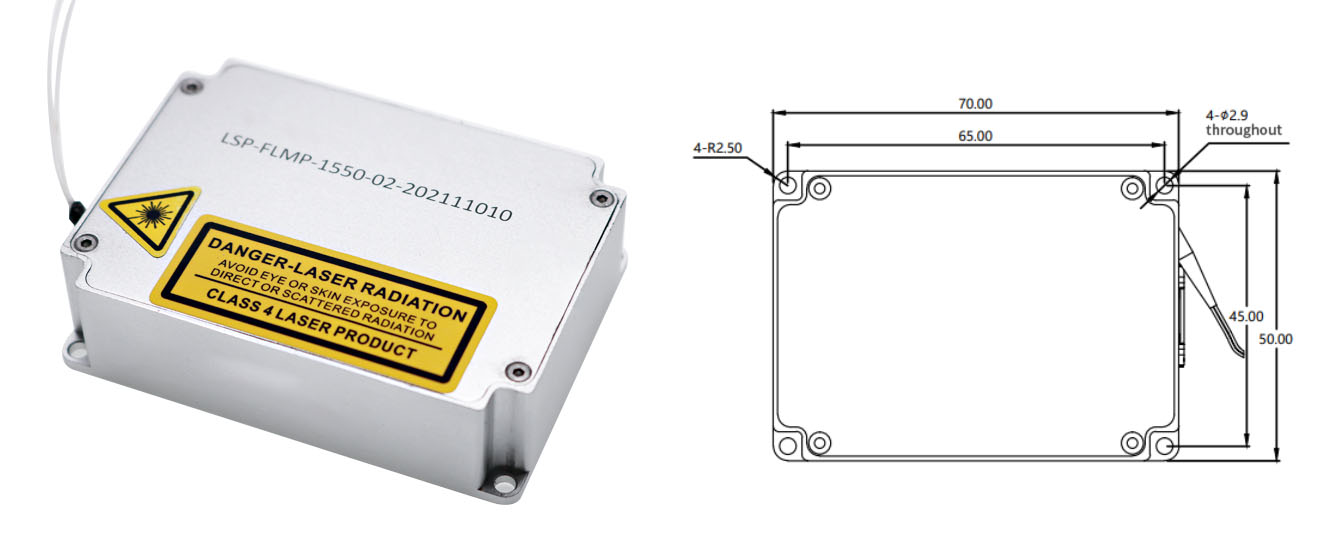

Small pulsed fiber laser 1535/1550nm

This product is a 1.5 μ m pulsed fiber laser light source developed by Xiaoxiao Shanghai Photon for eye safety. The product can generate high peak power output, has high electro-optical conversion efficiency, low ASE and nonlinear effect noise, and a wide temperature working range. It is suitable for use as an emitting light source for LiDAR.

Product PN#	product name	Center wavelength	Peak power	Repetition frequency	Other parameters
LSP-FLMP-1535-02	1535nm small pulsed fiber laser	1535nm	1.5kW	0.5 MHz		Add Inquiry
LSP-FLMP-1550-02	1550nm small pulsed fiber laser	1550nm	1.5kW	0.5 MHz		Add Inquiry

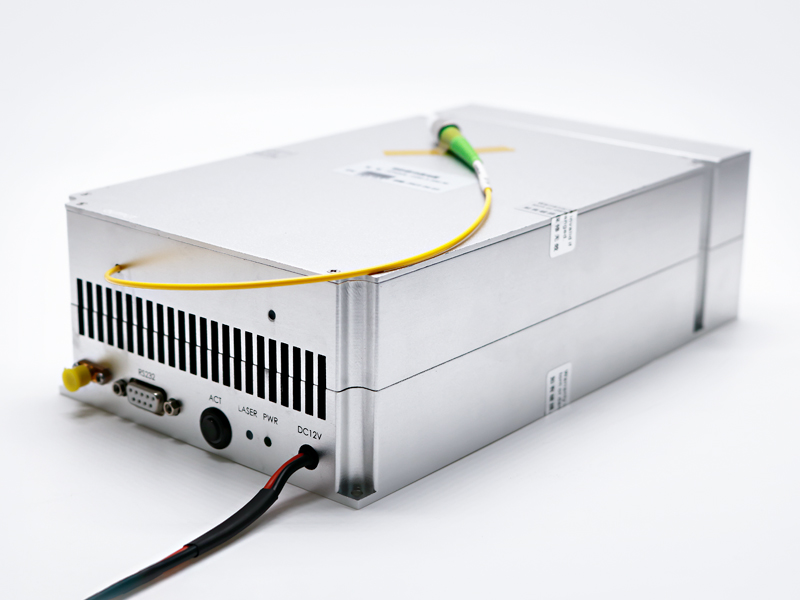

1550nm nanosecond high-power pulse light source

The high-power nanosecond pulse fiber laser uses a high-power gain fiber module, combined with dedicated driving and temperature control circuits, to output high peak and high-energy laser pulses. The laser wavelength and power are stable, and the modular design facilitates system integration. It can be used in laser radar, distributed fiber optic sensing systems, etc.

Product PN#	product name	Center wavelength	Pulse width	Peak power	Other parameters
HP-NSFL-A-1550-250-10-1000-SM-FA-M	1550nm nanosecond high-power pulse light source module (pulse width 250ns, peak power 10kW)	1550nm	250ns	10kW		Add Inquiry
HP-NSFL-A-1550-3-4-400-SM-FA-M	1550nm nanosecond high-power pulse light source module (pulse width 3ns, peak power 4kW)	1550nm	3ns	4kW		Add Inquiry

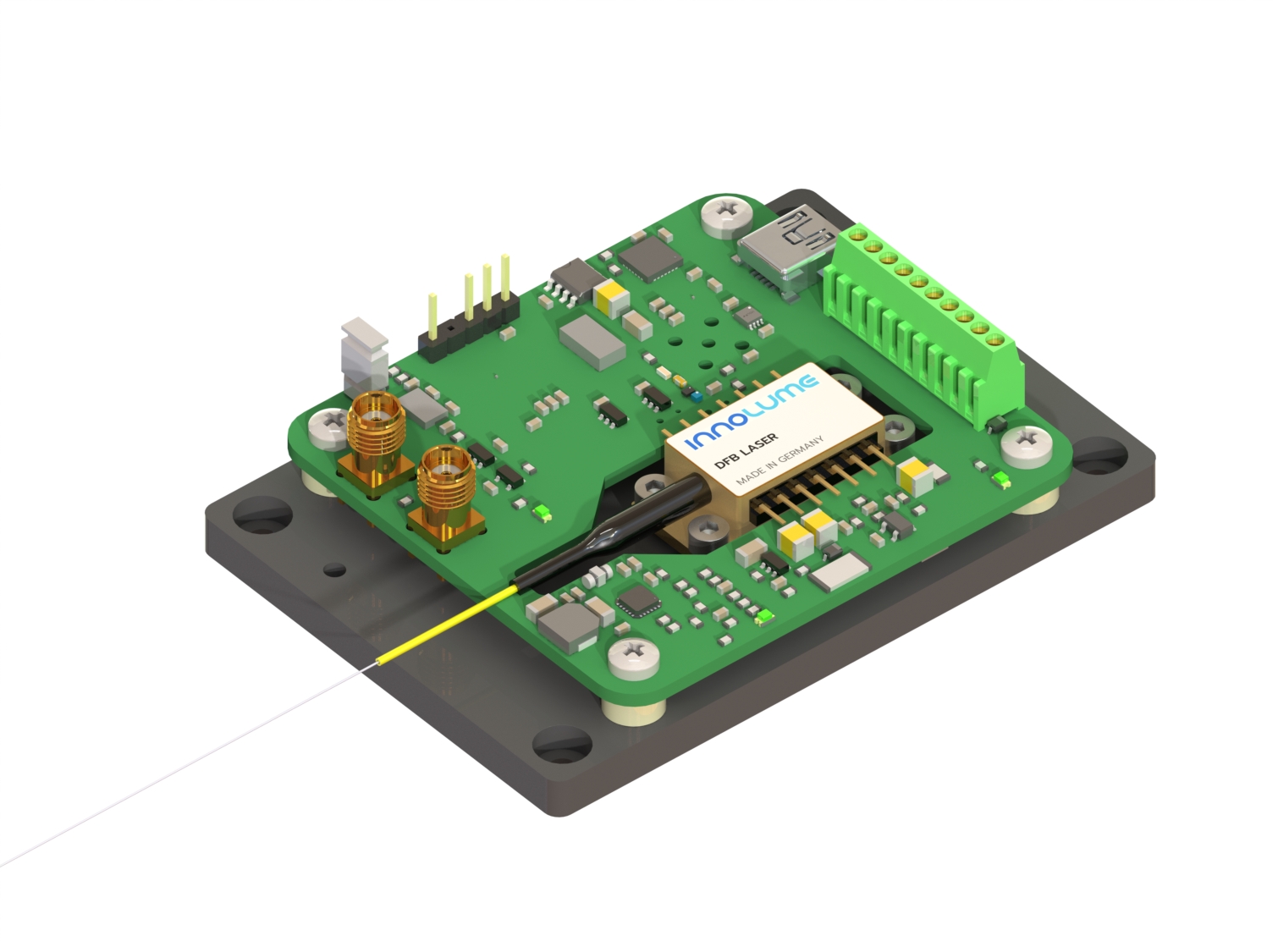

Short pulse diode module LDM (wavelength 405-1550nm optional)

This short pulse diode module LDM is suitable for 405-1550n wavelength laser diodes, with laser pulses as short as 30 ps, nanosecond pulse width 1-100ns, peak power up to 2W, repetition rate up to 30 MHz, and high repetition rate up to 60 MHz using an external TTL signal source. Can be controlled by computer through mini USB interface

Product PN#	product name	Center wavelength	Peak power	Repetition frequency	Other parameters
LDM-NS-1064	1064nm nanosecond short pulse diode module LDM 600mW (pulse width repetition rate 10MHz)	1064nm	600mW	10MHz		Add Inquiry

1064nm sub nanosecond microchip pulse laser HLX-I

HLX-I products are based on solid-state, diode pumped, and passive Q-switched lasers. Our laser generates a single pulse of 1064 nm with a duration as short as 450 ps, a repetition rate of up to 100 kHz, an average power of up to 500 mW, and an energy of up to 50 μ J.

Product PN#	product name	Center wavelength	Output power	Repetition frequency
HLX-I-F005	1064nm sub nanosecond microchip pulse laser 5kHz	1064 nm	200 mW	5kHz	Add Inquiry
HLX-I-F020	1064nm sub nanosecond microchip pulse laser 20kHz	1064 nm	300 mW	20 kHz	Add Inquiry
HLX-I-F040	1064nm sub nanosecond microchip pulse laser 40kHz	1064 nm	500 mW	40 kHz	Add Inquiry
HLX-I-F070	1064nm sub nanosecond microchip pulse laser at 70kHz	1064 nm	420 mW	70 kHz	Add Inquiry

532nm sub nanosecond microchip laser HLX-G

HLX-G products are based on solid-state, diode pumped, and passive Q-switched lasers. Our laser generates a single pulse of 532 nm with a duration as short as 500 ps, a repetition rate of up to 100 kHz, an average power of up to 200 mW, and an energy of up to 20 μ J.

Product PN#	product name	Center wavelength	Output power	Repetition frequency
HLX-G-F005	532nm sub nanosecond microchip laser 5kHz	532 nm	50 mW	5 kHz	Add Inquiry
HLX-G-F010	532nm sub nanosecond microchip laser at 10kHz	532 nm	50 mW	10kHz	Add Inquiry
HLX-G-F020	532nm sub nanosecond microchip laser 20kHz	532 nm	120mW	20kHz	Add Inquiry
HLX-G-F040	532nm sub nanosecond microchip laser 40kHz	532 nm	120mW	40kHz	Add Inquiry

Green/UV/DUV high-frequency portable nanosecond pulse laser 532/355/266nm

Green/UV/DUV portable nanosecond pulse laser is a high repetition rate short pulse laser used for sensing applications. It combines a frequency converter with a 1064nm nanosecond pulse fiber laser to achieve 532nm (green)/355nm (ultraviolet)/266nm (deep ultraviolet) laser. The nonlinear optical crystals of OXIDE have high quality and high functionality, and are integrated into frequency converters. High repetition rate (50kHz) and high peak power are suitable for sensing applications such as LiDAR. In addition, the optimized optical design without resonators achieves a simple, highly reliable, and lightweight laser unit.

Product PN#	product name	Center wavelength	Output power
FL-PL-DUV	266nm DUV high-frequency portable nanosecond pulse laser 100mW	266nm	100 mW	Add Inquiry
FL-PL-SHG	532nm green high-frequency portable nanosecond pulse laser 500mW	532nm	500 mW	Add Inquiry
FL-PL-UV	355nm UV high-frequency portable nanosecond pulse laser 80-200mW	355nm	200 mW	Add Inquiry

YUCCA UV Fiber Pulse Laser 343/515nm

YUCCA， Ultraviolet fiber laser provides high pulse repetition rate and high power with short nanosecond pulses. It is fully designed to improve laser processing quality through shorter pulse widths and increase productivity through higher pulse repetition rates. Its innovative fiber design enables different combinations of short nanosecond pulses, with high-speed processing performance and reduced overall processing costs. YUCCA has a constant short nanosecond pulse duration and beam quality across the entire pulse repetition rate range, making it a suitable laser source for the next generation of ultraviolet laser microfabrication equipment with the goal of higher throughput. YUCCA adopts high-end design methods that exceed industry quality standards to ensure reliability and availability. YUCCA's use of field validated technology, qualified components, good practices, and high-quality manufacturing is the correct answer to operating 24/7 in environments that extend production cycles.

Product PN#	product name	Center wavelength	Output power	Other parameters
YUCCA-45-343	343nm ultraviolet fiber pulse laser (40W 7.5ns 400kHz)	343nm	40 W up to 400 kHz		Add Inquiry
YUCCA-75-515	515nm ultraviolet fiber pulse laser (75W 7.5ns 400kHz)	515nm	75 W up to 400 kHz		Add Inquiry

MNL1342 diode pumped sub nanosecond passive Q-switched laser 336/447/671/1342nm 100Hz 100kW pulse width 0.5ns

The MNL1342 series DPSS passive Q-switched sub nanosecond laser provides high peak power of>100 kW at a repetition rate of 100Hz. The short laser cavity is fixed on a thermally stable and controlled substrate, providing extremely stable output parameter performance. Small footprint integrated into OEM lasers. Yanas pulse duration<0.5 ns, high pulse energy exceeding 50 μ J, variable

Product PN#	product name	Center wavelength	Pulse duration (pulse width)	Peak power	Repetition frequency	Other parameters
MNL1342	1342nm diode pumped sub nanosecond passive Q-switched laser (repetition rate 1-100Hz, peak power 100kW 50uJ)	1342nm	<0.5ns	100kW	1-100 Hz		Add Inquiry

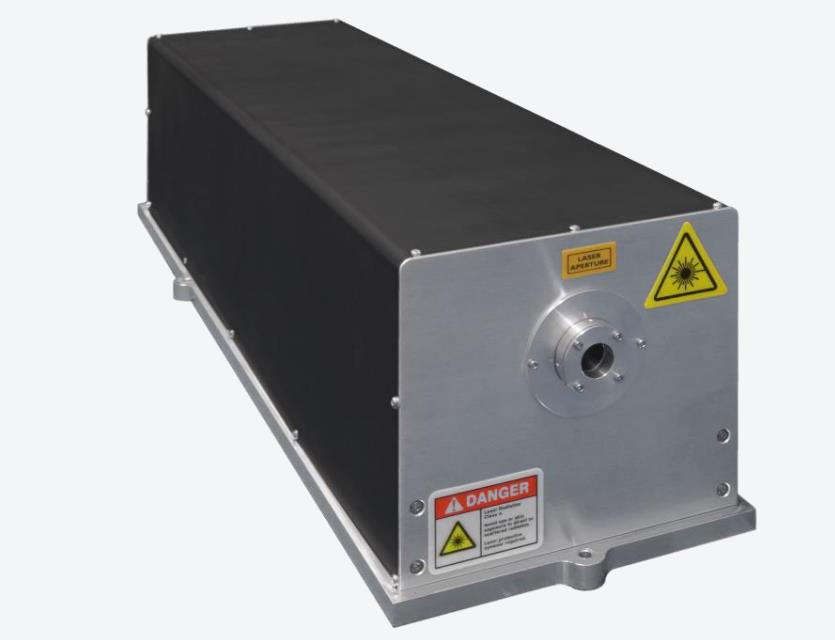

TARBO high repeatability diode pumped nanosecond solid-state laser 532nm 300kHz 20ns

TARBO is a highly repetitive diode pumped solid-state laser with an operating frequency of up to 300kHz. According to this version, the system generates optical radiation in short laser pulses of 532nm, with an average power of 40W or 70W. A laser consists of an optical device and an electronic device, including all necessary components for laser operation and communication.

Product PN#	product name	Center wavelength	Output power	Other parameters
Tarbo 532-40	532nm high repeatability diode pumped solid-state laser 100kHz 20ns 40W	532nm	> 40W @ 100kHz 或 >35W @ 200kHz 或 > 25W @ 300kHz		Add Inquiry
Tarbo 532-70	532nm high repeatability diode pumped solid-state laser 100kHz 20ns 70W	532nm	>70W @ 100kHz 或 >55W @ 200kHz 或 > 40W @ 300kHz		Add Inquiry

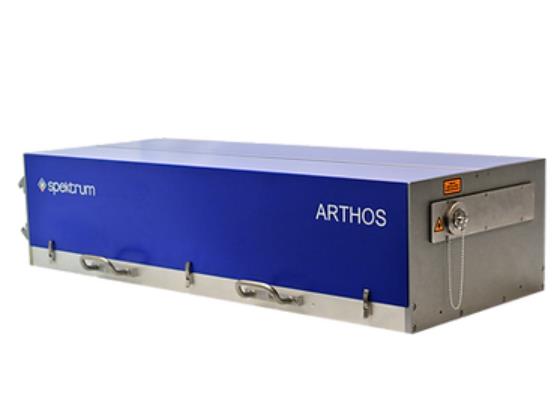

Water cooled diode pumped nanosecond solid-state laser 1064nm (100mJ 1kHz 10ns)

ARTHOS 100FM is a diode pumped solid-state laser characterized by high energy, high repetition rate, and good beam quality. Another highlight is the modulator, which is used for single attenuation between pulses from 0 to 100%. We plan to carry out further development projects to achieve higher energy and repetition rates. The second, third, and fourth harmonics of Nd: YAG can also be provided upon request.

Product PN#	product name	Center wavelength	Output power	Pulse width	Other parameters
ARTHOS-100FM	1064nm water-cooled diode pumped nanosecond solid-state laser (100mJ 1kHz 10ns)	1064nm	100mJ	10ns		Add Inquiry

4 wavelength air-cooled diode pumped solid-state laser 100Hz 5mJ (266/355/532/1064nm)

ARTHOS 20 AC 4WL is an air-cooled diode pumped solid-state laser that can operate at a repetition rate of up to 100 Hz. According to different versions, the system generates 1064nm, 532nm, 355nm, Short laser pulse light radiation at 266nm. The laser head consists of an optical unit and an electrical unit. Including all components required for laser operation and communication.

Product PN#	product name	Output power	Repetition frequency	Other parameters
ARTHOS-20-AC-4WL	4 wavelength air-cooled diode pumped solid-state laser 100Hz 5mJ (266/355/532/1064nm)	>5mJ @1064nm或 >4mJ@532nm 或>3mJ@355nm 或>1.0mJ@266nm	1-100Hz		Add Inquiry
