1560nm transmissive FBG fiber grating (AOS)

FBG stands for Fiber Bragg Grating, which stands for Fiber Bragg Grating. The essence of the grating with periodic spatial phase distribution formed inside the fiber core is to form a narrowband (transmission or reflection) filter or mirror inside the fiber core. By utilizing this characteristic, many high-performance fiber optic devices can be manufactured.

Product PN#	product name		Other parameters
HTR-FBG-1560-5	1560nm Transmission FBG Fiber Bragg Grating (AOS)			Add Inquiry

Fiber Bragg Grating for Fiber Laser Applications

Fiber Bragg Grating (FBG) used in fiber lasers is an essential component of fiber lasers, which modulates the signal light in the fiber core through periodic refractive index modulation using ultraviolet exposure.

Product PN#	product name		Other parameters
FBG-1080-010-10-S1212-O/Y	1079-1081nm OC type high power fiber Bragg grating 25/400um			Add Inquiry

1550nm heat insensitive encapsulated fiber Bragg grating

Fiber Bragg Grating is widely used in the field of communication as a wavelength filter. The center wavelength of fiber Bragg grating is highly sensitive to external temperature changes. This package uses a unique TE technology to ensure that the center wavelength of the grating is not affected by temperature.

Product PN#	product name		Other parameters
FBG-99-1550-1000-0.2-FA-AP	1550nm thermally insensitive packaged fiber Bragg grating			Add Inquiry

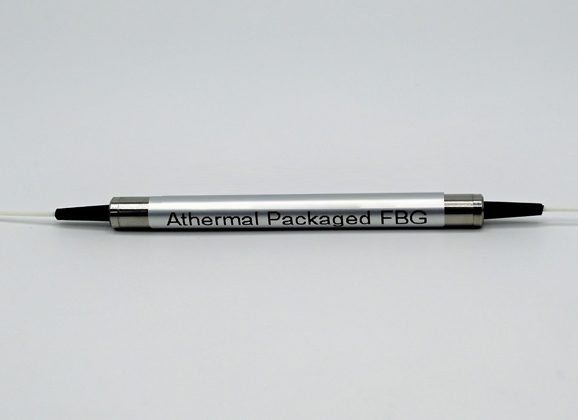

Non thermal (heat insensitive) encapsulated Bragg fiber grating FBG

Bragg fiber Bragg grating is highly sensitive to temperature changes. Their thermal sensitivity is approximately 6.7 ppm/⁰ K (+0.11 pm/⁰ K at a wavelength of 1550 nm). Non thermal encapsulated FBG aims to passively compensate for the thermal sensitivity of FBG through the expansion fit of shell components and wavelength shift of FBG under temperature influence. It enables customers to achieve all the advantages of fiber Bragg gratings while maintaining high wavelength stability over a wide temperature range.

Product PN#	product name		Other parameters
GTL-FBG-AP-850	Non-thermal (thermally insensitive) packaged Fiber Bragg Grating (FBG)			Add Inquiry

Special Application Fiber Bragg Grating (FBG) (Anti Radiation/High Temperature/Wavelength Locking/WDM/Raman Laser/F-P Grating)

Wavelength 600-2300 nanometers; Bandwidth of 0.1-1.2 nanometers; Reflectivity of 0.5-99.9%; DSLR~8,~10 decibels; Fiber type SM PM、 Double clad LMA、 Radiation resistance and customization; Fiber tail length ≥ 0.5, customized fiber Bragg grating (FBG) has many applications in optical communication, laser technology, and sensing systems. The FBG series is widely used in applications such as fiber optic mirrors or optical filters with narrowband spectra. Bragg grating is also one of the popular components in the field of fiber optic sensing.

Product PN#	product name
GTL-FBG-WL-810	Wavelength-locked FBG (Fiber Bragg Grating)	Add Inquiry
GTL-FBG-RL-880	Raman laser FBG fiber Bragg grating 1240/1270/1484nm	Add Inquiry
GTL-FBG-FPI-810-RS	FBG Fabry-Perot interferometer fiber Bragg grating 600-2300nm	Add Inquiry
GTL-FBG-WDM-810-RS	FBG WDM ITU Filter 100/200GHz Wavelength Division Multiplexing Fiber Bragg Grating	Add Inquiry

High power fiber Bragg grating

Xiaoxiao Photon's High Power Fiber Bragg Gratings (HP-BG) are cavity mirrors specifically designed and developed for use in high-power fiber laser systems. It has anti electromagnetic interference, high durability, and superior environmental adaptability, making it very suitable for harsh industrial and scientific research environments.

Product PN#	product name	Center wavelength	Reflectivity	Power	Other parameters

Pulse broadening and recompression of fiber Bragg grating

Xiaoxiao Photon's optical pulse broadening fiber Bragg grating is used for pulse broadening in chirped pulse amplification (CPA) to achieve effective optical pulse amplification. Pulse compression fiber Bragg grating is used to compress power amplified pulses. For ultrafast fiber laser systems, all fiber pulse extenders and pulse compression fiber Bragg gratings are crucial for low insertion loss and high system efficiency.

Product PN#	product name	Center wavelength	bandwidth	reflectivity	input pulse width	output pulse width	Other parameters
