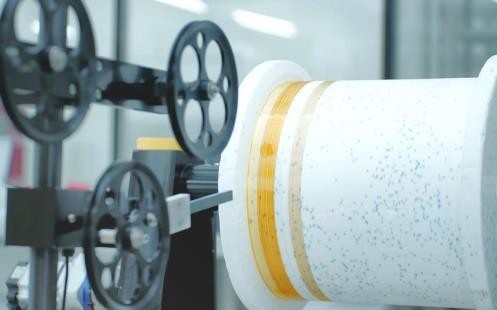

Polyimide coated optical fiber (cutoff wavelength 1260nm, cladding 125um)

Compared to ordinary single-mode optical fibers, this product uses a polyimide (PI) coating. Polyimide is a polymer material with high heat resistance, excellent dielectric properties, good mechanical strength, and outstanding comprehensive performance. It can greatly improve the temperature resistance of the fiber coating layer and extend the service life of the fiber in high temperature environments.

Product PN#	product name	Cut off wavelength	Mode field diameter	Other parameters
PI-SM1550	Polyimide coated germanium doped high-temperature resistant single-mode optical fiber	1260 nm	@1550 nm 10.4 ± 0.8 µm		Add Inquiry

High temperature resistant single-mode fiber (polyimide coated cladding diameter 125um)

Polyimide is a polymer material with good high and low temperature resistance, good mechanical strength, and excellent comprehensive performance. It can greatly improve the temperature resistance of the fiber coating layer, extend the service life of the fiber in high temperature environments, and maintain good mechanical properties without brittle fracture in low temperature environments. Polyimide is a self extinguishing polymer with low smoke emission rate and a thermal expansion coefficient similar to quartz material. It has certain self-lubricating properties, can resist aging, high-voltage electrical breakdown, etc., and has little gas release under high vacuum. Polyimide has high radiation resistance and mechanical properties, and can maintain high strength in irradiation environments. It has high tensile, bending, and compressive strength, outstanding creep resistance, and dimensional stability. Polyimide has non-toxic stability and biocompatibility, and can be used to prepare tableware and some medical consumables replacement products. Meanwhile, polyimide is resistant to almost all organic solvents, some inorganic acids, and hydrolysis

Product PN#	product name	Numerical aperture (NA)	Core material
SM9/125/135PI	Polyimide coated high-temperature resistant single-mode optical fiber SM9/125/135PI	0.12 - 0.14	掺锗石英	Add Inquiry
SM9/125/145PI	Polyimide coated high-temperature resistant single-mode optical fiber SM9/125/145PI	0.12 - 0.14	掺锗石英	Add Inquiry
PSC_SM9/125/155PI	Polyimide coated high-temperature resistant single-mode optical fiber PSC-SM9/125/155PI	0.13-0.15	高纯石英	Add Inquiry
SM9/125/155PI	Polyimide coated high-temperature resistant single-mode optical fiber SM9/125/155PI	0.12 - 0.14	掺锗石英	Add Inquiry

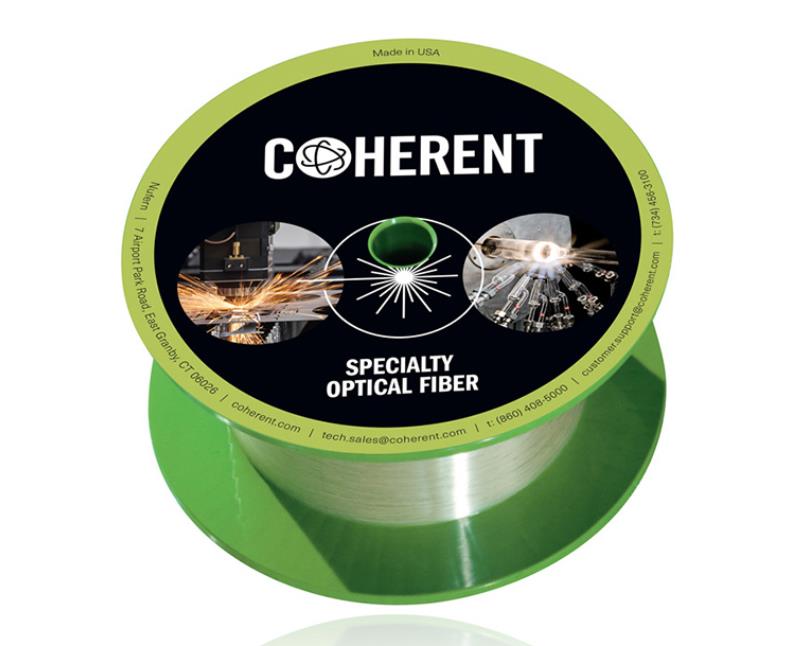

Nufern bending insensitive selective cutoff single-mode fiber 1550nm (cladding diameter 80 or 125um)

Coherent's 1550B-HP high-performance selective cutoff bending insensitive single-mode fiber has been optimized and can be used for small active and passive components that require smaller bending radii.

Product PN#	product name	Working wavelength	Core diameter	Other parameters
1550B-HP-80	Nufern bending insensitive single-mode fiber 1460-1620nm cladding 80um	1460-1620nm	9.0 µm		Add Inquiry
1550B-HP	Nufern bending insensitive single-mode fiber 1460-1620nm cladding 125um	1460-1620nm	9.0 µm		Add Inquiry

UHNA ultra-high numerical aperture single-mode fiber 980-1600nm/1500-2000nm

Coherent/Nunn UHNA ultra-high numerical aperture single-mode fiber is an ideal bridging fiber for connecting high numerical aperture optical waveguides and low numerical aperture transmission fibers. On the one hand, UHNA fibers have high coupling efficiency with other high numerical aperture optical fibers (waveguides). On the other hand, the composition of UHNA fibers allows for thermal expansion of the fiber core during fusion splicing, ensuring low loss fusion splicing between UHNA and low numerical aperture transmission fibers.

Product PN#	product name	Working wavelength	numerical aperture
UHNA7	UHNA ultra-high numerical aperture single-mode fiber NA0.41	1500-2000nm	0.41	Add Inquiry
UHNA4	UHNA ultra-high numerical aperture single-mode fiber NA0.35	1100-1600nm	0.35	Add Inquiry
UHNA3	UHNA ultra-high numerical aperture single-mode fiber NA0.35	980-1600nm	0.35	Add Inquiry
UHNA1	UHNA ultra-high numerical aperture single-mode fiber NA0.28	1100-1600nm	0.28	Add Inquiry

Pure silicon core SM single-mode fiber 1520-1650nm cladding 80um

Pure silica core SM fiber (SM-SC) is designed for applications with high performance requirements. The SM-SC series optical fibers can extend their range to ultraviolet radiation and can also be used in harsh environments. Compared with traditional germanium silicon core fibers, this fiber has a Min The sensitivity of darkening light and reducing the impact of hydrogen invasion. Fibercore's pure silicon core SM fibers (SM-SC) are designed specifically for high-performance applications. The SM1250SC (9/125) and SM1500SC variants are designed for use in hydrogen rich environments, where pure silica cores can resist the effects of hydrogen darkening. The SM300-SC and SM400-SC are designed specifically for transmission of ultraviolet (UV) and visible light wavelengths. The silicon dioxide core prevents the photochromic effect typically associated with germanium doped optical fibers. Fluorinated and concave cladding design (see figure on the right) allows the core to be made of pure silica without germanium doping • SM300-SC pure silica core fiber, used for transmitting long ultraviolet (UV-A) wavelengths without light scattering • SM400-SC non light scattering fiber, used for transmitting purple, blue, and green wavelengths • SM1250SC (9/125) has very low attenuation

Product PN#	product name	Working wavelength	numerical aperture
SM1250SC(9/125)	Low attenuation pure silicon core SM single-mode fiber 1260-1650nm	1260 - 1650nm	0.13 - 0.15	Add Inquiry
SM1500SC(7/125)	Bending insensitive pure silicon core SM single-mode fiber 1520-1650nm cladding 125um	1520 - 1650nm	0.17 - 0.19	Add Inquiry
SM1500SC(7/80)	Bending insensitive pure silicon core SM single-mode fiber 1520-1650nm (cladding 80um)	1520 - 1650nm	0.17 - 0.19	Add Inquiry
SM300-SC	UV non scattering pure silicon core SM single-mode fiber 320-430nm SM300-SC	320 - 430nm	0.12 - 0.14	Add Inquiry
SM400-SC	Visible light non scattering pure silicon core SM single-mode fiber 405-532nm SM400-SC	405 - 532nm	0.12 - 0.14	Add Inquiry

780/1060nm OCT dispersion controlled selective cutoff single-mode fiber (NuVIEW series)

The coherent optical coherence tomography (OCT) medical imaging method optimizes the OCT selection cutoff single-mode fiber. These specialized fibers are developed for the next generation of OCT applications, with operating wavelengths of 780 and 1060 nm, requiring excellent uniformity, tight dispersion, and core/cladding concentricity control. This type of fiber is very suitable for couplers used in OCT. This type of fiber can still be used for traditional applications and has undergone a 200kpsi pressure test, demonstrating excellent strength. These OCT fibers are part of NuVIEW ™ The fiber optic series provides ultra-high performance specifications, improving component reliability, component performance, and production output, while reducing component manufacturing costs- The P version has a polyimide coating, which can reduce the total diameter of the optical fiber and increase the operating temperature to 300 ° C.

Product PN#	product name	Working wavelength
1060-OCT-P	1060nm OCT single-mode fiber (coating layer 150um NuVIEW series)	930-1550nm	Add Inquiry
1060-OCT	1060nm OCT single-mode fiber (coating layer 245um NuVIEW series)	930-1550nm	Add Inquiry
780-OCT	780nm OCT single-mode fiber (coating layer 245um NuVIEW series)	720-980nm	Add Inquiry

Nufern 780nm coherent high-performance selective cutoff single-mode fiber

The coherent 780-HP high-performance selective cutoff single-mode fiber has been optimized at near-infrared wavelengths. This specialized fiber optic cable is developed for applications that require coupler generation, diode tapping, and independent transmission of near-infrared continuous media. The 780-HP fiber has a higher verification test level and a more stringent the second mock examination cut-off tolerance than the good fiber currently available. These features enhance the strength of component manufacturers, improve component reliability, increase production efficiency, and reduce costs.

Product PN#	product name	Working wavelength	Other parameters
780-HP	780-HP single-mode fiber 4.4/125um	780-970		Add Inquiry

Select cutoff SM single-mode fiber 980-1600nm (980-HP 980-XP)

980 nm high-performance selected cutoff single-mode fiber has been optimized for use by component manufacturers at telecommunications wavelengths. These application specific optical fibers were developed for the independent transmission of pump diode tails, components, and couplers. 980 nm fiber provides 80 μ m and 125 μ m overall dimensions, excellent uniformity, tight tolerance core/cladding concentricity and the second mock examination cut-off specifications. These fibers are designed for applications with smaller bending radii, including miniaturized fiber optic packaging. These high-performance specifications can achieve excellent strength, higher component reliability, higher output, and reduce component manufacturer costs. The XP version provides strict tolerance specifications for more demanding applications.

Product PN#	product name	Working wavelength
980-XP	980-XP selects cutoff SM single-mode fiber	980-1600nm	Add Inquiry
980M-HP-80	980M-HP-80 selects cutoff SM single-mode fiber	980-1600nm	Add Inquiry
980-HP-80	980-HP-80 selects cutoff SM single-mode fiber	980-1600nm	Add Inquiry
980-HP	980-HP selects cutoff SM single-mode fiber	980-1600nm	Add Inquiry

Low loss single-mode fiber 1260-1625nm (cladding diameter 125um)

Low loss single-mode fiber is suitable for transmission systems in the entire wavelength range of 1260-1625nm. It suppresses the water peak loss caused by hydroxide ion (OH -) absorption in ordinary single-mode fibers around 1383nm, expands the working window to the E-band (1360-1460nm), and thus increases the spectral bandwidth by about 100nm; At the same time, low loss single-mode fiber significantly reduces the attenuation of the entire 1260-1625nm wavelength band, fully meeting the needs of multi-channel, high-speed, and ultra long distance transmission on a single fiber.

Product PN#	product name	Working wavelength	Other parameters
SM1260	Low loss single-mode fiber (cladding diameter 125um)	1260~1625nm		Add Inquiry

SM450 SM600 single-mode RGB fiber

Single Mode Fiber (SMF) refers to an optical fiber that supports only one transverse mode transmission at a specific wavelength (allowing for two degenerate polarization modes). Single mode optical fibers typically have a core on the order of 10 microns, and the refractive index difference between the core and cladding is very small (<1%). Due to its characteristics such as long single-mode transmission distance, large transmission bandwidth, low transmission loss, no mode to mode dispersion, and strong reliability, single-mode fiber can be applied in outdoor long-distance data transmission, fiber optic communication, fiber optic sensing, and other fields. SM450 fiber has very low fusion loss when fused with couplers, and is suitable for the production, processing, and manufacturing of device connectors.

Product PN#	product name	Working wavelength	Cut off wavelength	Numerical aperture	Other parameters
SM450	SM450 short wavelength single-mode RGB fiber	488 - 633nm	400nm	0.14		Add Inquiry
SM600	SM600 630nm single-mode fiber SMF	> 520nm	520nm	0.13		Add Inquiry

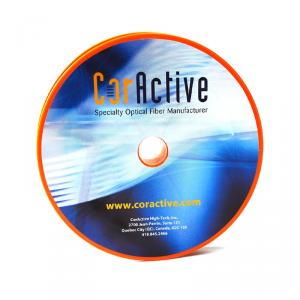

CorActive Single clad Single mode Nonlinear Passive Fiber SCF-Un-3/125-25

The characteristic of CorActive single clad passive fiber is its small effective area, which can generate nonlinear effects. It is specifically designed for manufacturing passive components that require nonlinear effects.

Product PN#	product name	numerical aperture	Other parameters
SCF-UN-3/125-25	CorActive Single clad Single mode Nonlinear Passive Fiber SCF-Un-3/125-25	0.25 ± 0.02		Add Inquiry

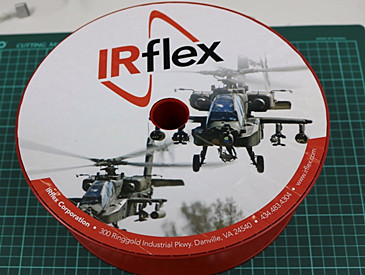

Sulfide MWIR Nonlinear Medium Wave Infrared Fiber 1.5-6.5um IRFLEX IRF-S Series

IRF-S series chalcogenide mid wave infrared (MWIR) fiber (1.5 to 6.5 µ m)

Product PN#	product name	Working wavelength	Cut off wavelength
IRF-S-9	3.6-5.3um IRFLEX Nonlinear Mid Infrared Fiber Core Diameter 9um	3.6 – 5.3um	3.56um	Add Inquiry
IRF-S-7	3.0-4.4um IRFLEX Nonlinear Mid Infrared Fiber Core Diameter 7um	3.0 – 4.4um	2.93um	Add Inquiry
IRF-S-6.5	1.5-4.15um IRFLEX Nonlinear Mid Infrared Fiber Core Diameter 6.5um	1.5 – 4.15um	2.46um	Add Inquiry
IRF-S-5	2.05-2.95um IRFLEX Nonlinear Mid Infrared Fiber Core Diameter 5um	2.05 – 2.95um	1.988um	Add Inquiry

IRFLEX IRF Se series sulfide LWIR nonlinear long wave mid infrared fiber 1.5-10um

IRF Se series chalcogenide long wave infrared (LWIR) fiber (1.5 to 10 µ m)

Product PN#	product name	Working wavelength	Core diameter	Numerical aperture	Other parameters
IRF-Se-12	IRFLEX Nonlinear Long Wave Mid Infrared Fiber (1.5-9.7 µ m)	1.5-9.7µm	100um	0.47		Add Inquiry

SMF-28E+HI1060 HI780 Corning single-mode communication fiber

When looking ahead to its future services and customer needs, the communication industry's top priority is to improve connection speed to meet the demands. Voice over IP, Internet Protocol TV and broadband are becoming more and more popular, and the demand for bandwidth is increasing. Family members are spending more time than ever on electronic devices and home entertainment systems, and it is evident that outdated systems are no longer able to meet this growing demand. SMF-28e+ ® With a renowned reputation for high-quality transmission, fusion, processing, and coating performance, it can support major broadband applications such as cable television and is undoubtedly the leading fully functional single-mode fiber in the industry. SMF-28e+ ® Fiber optic is the best solution to meet your connection needs.

Product PN#	product name	Single mode cutoff wavelength	Core diameter	Numerical aperture	Mode field diameter (μ m)	Other parameters
SMF-28E+	SMF-28E+Corning single-mode communication fiber with a cutoff wavelength of 1260nm and a core diameter of 8.2um	1260nm	8.2um	0.14	9.2±0.4@1310 nm&10.4±0.5@1550nm		Add Inquiry
