Near-IR high-speed detector

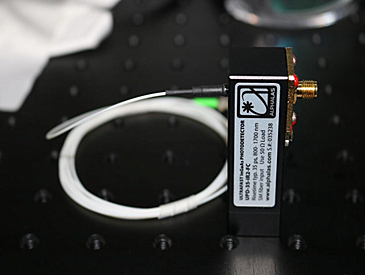

Ultrafast photodetector Alphalas UPD 320-1700nm InGaAs/Si/Ge/GaAs

The UPD series ultrafast photodetector is suitable for measuring optical waveforms from DC to 25GHz. The rise time of various models is as short as 15ps, and the spectral range is from 170 to 2600nm. All photodetectors are enclosed in a compact and sturdy aluminum casing, which can be biased by batteries or external power sources. The UV extended version of the silicon photodetector is an excellent commercial product that covers the spectral range of 170 to 1100nm. Another type of Te UV sensitive InGaAs photodetector can be used to detect laser pulses in the range of 350 to 1700nm, thus having a wide spectral range and high commercially available speed.

Product PN#	product name	Spectral response	bandwidth
UPD-15-IR2-FC	Alphalas UPD ultrafast photodetector (rising edge time<15ps, InGaAs, Fiber w. FC/APC)	800-1700nm	25GHz	Add Inquiry
UPD-30-VSG-P	Alphalas UPD ultrafast photodetector (rising edge time<30ps, GaAs, polished glass)	320-900nm	10GHz	Add Inquiry
UPD-300-SP	Alphalas UPD ultrafast photodetector (rising edge time<300ps, Si, polished glass)	320-1100nm	＞1 GHz	Add Inquiry
UPD-35-IR2-FC	Alphalas UPD ultrafast photodetector (rising edge time<35ps, InGaAs, Fiber w. FC/APC)	800-1700nm	＞10GHz	Add Inquiry
UPD-35-IR2-FR	Alphalas UPD ultrafast photodetector (rising edge time<35ps, InGaAs, FC/PC)	800-1700nm	＞10GHz	Add Inquiry
UPD-35-UVIR-D	Alphalas UPD ultrafast photodetector (rising edge time<35ps, InGaAs, Diffuse, quartz)	350-1700nm	＞10GHz	Add Inquiry
UPD-35-UVIR-P	Alphalas UPD ultrafast photodetector (rising edge time<35ps, InGaAs, polished MgF ₂)	350-1700nm	＞10GHz	Add Inquiry
UPD-3N-IR2-P	Alphalas UPD ultrafast photodetector (rising edge time<150ps, InGaAs, polished glass)	800-2100nm	0.4GHz	Add Inquiry
UPD-40-VSI-P	Alphalas UPD ultrafast photodetector (rising edge time<40ps, InGaAs, polished glass)	500-1690nm	>8.5GHz	Add Inquiry
UPD-5N-IR2-P	Alphalas UPD ultrafast photodetector (rising edge time<200ps, InGaAs, polished glass)	800-2600nm	＞0.3GHz	Add Inquiry

1480-1620nm InP indium phosphide ultrafast photodetector module 145GHz

This product is a 145GHz ultrafast photodetector module developed for data communication (>1T/bs PAM), telecommunications, and microwave photonics applications.

Product PN#	product name	Spectral response	bandwidth	Other parameters
UPD-C-145-RF-PA	145GHz photodetector module (polarization maintaining fiber)	1480 nm - 1620 nm	145GHz		Add Inquiry
UPD-C-145-RF-SA	145GHz photodetector module (single-mode fiber)	1480 nm - 1620 nm	145GHz		Add Inquiry
