Near-IR tunable laser

X/O/S/C/L band tunable fiber laser>5mW (1060 ± 10/1310/1550 ± 20nm)

The WLTL series tunable fiber laser adopts a proprietary design. The laser is mainly composed of a gain block and a frequency selection engine. Each component can be configured according to specific requirements, leaving ample options for achieving tuning range and variations in optical output power. Wavelength tuning is achieved by manually adjusting a micrometer or a micro motor controlled by a PC through a USB interface. The fast setup, small footprint, fast scanning, wide tuning range, and availability of X, O, SC, and L bands make lasers a cost-effective source for the development and laboratory purposes of various tests related to wavelength measurement, such as DWDM components, fiber Bragg gratings, and FGB sensor queries.

Product PN#	product name	Center wavelength	Output power	Other parameters
WLTL-200-1490-PM-3.0/1.0-FC/APC-USB	S-band 1490nm USB electrically adjustable fiber laser 5mW	1490nm	5mW		Add Inquiry
WLTL-100-1490-PM-3.0/1.0-FC/APC	S-band 1490nm manually adjustable fiber laser 5mW FC/APC	1445-1535nm	5mW		Add Inquiry

400kHz narrow linewidth tunable laser (iTLA) 1528-1568nm (output power 8-117dBm)

Tunable Laser (iTLA) is a high-performance continuous wave (CW) tunable laser source suitable for various testing and measurement applications, with a C-band wavelength range from 1528nm (196.25 THz) to 1568nm (191.25 THz)

Product PN#	product name	Working wavelength	Output power	Other parameters
TL-MC040TA101	400kHz narrow linewidth tunable laser module (iTLA) 1528-1568nm (output power 8-117dBm)	1528-1568nm	8-17dBm		Add Inquiry

GuxMax High Coherent Combination Band Continuous Tunable Light Source (Type A Narrow Line Width) 1250-1630nm

Our TLS-1200 tunable laser is a next-generation high-performance continuous wave (CW) tunable laser source suitable for various single band or combined band windows, ranging from 1050 nm to 1680 nm. The innovative design adopts advanced tunable technology and achieves continuous gain over a wide wavelength range. Due to the absence of moving parts, voltage controlled wavelength tuning can quickly switch wavelengths throughout the entire operating wavelength window.

Product PN#	product name	Wavelength range	output power	Other parameters
TLS-1200-A-S/C/L	1480-1630nm high coherence combined band continuous tunable light source (A-type narrow linewidth)	S+C+L-	≥ 5 dBm		Add Inquiry
TLS-1200-A-O/E	1250-1450nm high coherence combined band continuous tunable light source (A-type narrow linewidth)	O+E-	≥ 5 dBm		Add Inquiry

KHz level ultra narrow linewidth high-power DFB module 1550nm 10-60mW

This narrow linewidth DFB laser module from LD-PD INC has excellent performance and reliability (compliant with Telcordia GR-486 specification). Up to 100mW output power, extremely low relative intensity noise (RIN), ultra-low phase noise and narrow linewidth, high wavelength stability and low-frequency jitter.

Product PN#	product name	Center wavelength	Output power	Narrow linewidth	Other parameters
SCL0-DFB-1550-F-A81-L01-M0-SA	1550nm kHz ultra narrow linewidth high-power DFB module 60mW	1550nm	60mW	<100kHz		Add Inquiry

C-band desktop narrow linewidth lock-in semiconductor tunable laser 1528-1567nm 10/25mW

Our new product Clarity Plus Tunable Laser is a desktop tunable laser that spans the entire C-band, featuring a unique and rich feature set. The built-in NIST traceable molecular absorption reference cell (H13C14N) ensures ultra-high accuracy and stability in any wavelength range within this range. In addition, it is possible to lock more than 50 reference lines with an accuracy of<0.1pm. Provide ITU grid operation with continuous real-time offset and excellent output power stability. All of these are sold at very attractive prices. The plan includes subsequent versions of the L-band and module appearance.

Product PN#	product name	Working wavelength	Output power	Line width	Other parameters
CLX-C-FCAPC	Clarity Plus Full C-band Tunable Laser	1528-1567nm	10dBm	1kHz		Add Inquiry

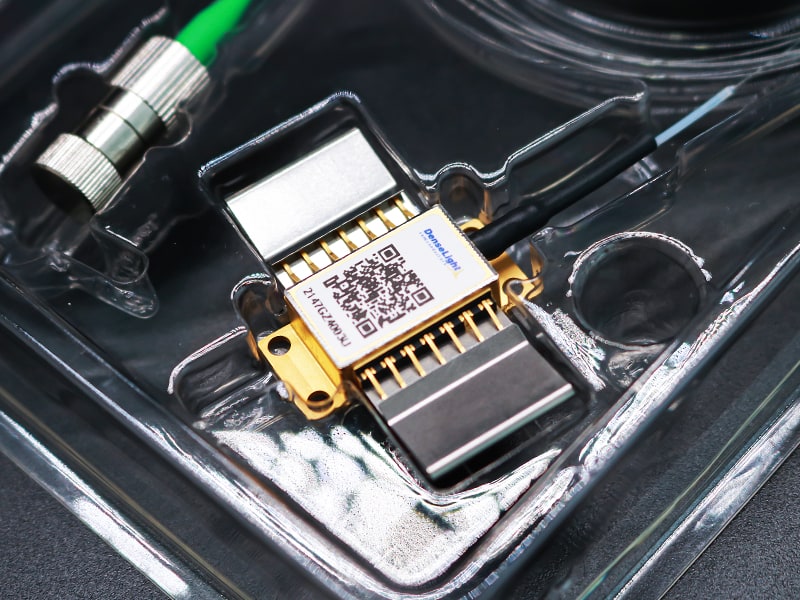

1550nm ultra narrow linewidth polarization maintaining tunable laser 100kHz 10mW

DenseLight DL-CLS101B-FP-S1550-LW100 is a 1550nm laser with cooling, 14 pin butterfly package, and polarization maintaining fiber output. It is designed with a modulation rate of up to 622Mbps. This laser is based on an external cavity laser with a built-in fiber Bragg grating, which has very stable laser wavelength, narrow spectral linewidth, and excellent SMSR performance.

Product PN#	product name	Center wavelength	Output power	Line width	Other parameters
DL-CLS101B-FP-S15	1550nm ultra narrow linewidth polarization maintaining tunable laser 100kHz 10mW	1550nm	10mW	100kHz		Add Inquiry

Wavelength tunable direct modulation laser 5mW (1532.68-1535.03nm)

Our wavelength switched laser is designed based on multiple switched lasers, with integrated amplifiers and professional noise reduction systems. It complies with the ITU-T G.989.2 Level 1 standard. Sampling can now be done using high-speed butterfly packaging or desktop computers with drive controllers. It is qualified production equipment delivered in bare mold or TOSA packaging form in the second quarter of 2023.

Product PN#	product name	Working wavelength	Output power	Fiber optic connector	Other parameters
Pilot-NGPON2	1532.68-1535.03nm wavelength tunable direct modulation laser	1532.68-1535.03nm	7dBm(Type B)	FC/APC		Add Inquiry

ASE-Free 10mW Narrow Linewidth Compact Tunable Laser Specifications PMO 1040/1310/1580nm

ASE-Free Narrow Linewidth Compact Tunable Laser Specifications PMO

Product PN#	product name	Band	Mode hopping free tuning band	Wavelength accuracy	Other parameters
Specifications-PMO-1040	1040nm ASE Free narrow linewidth compact tunable laser>10mW	1000-1070nm	60nm	1nm		Add Inquiry

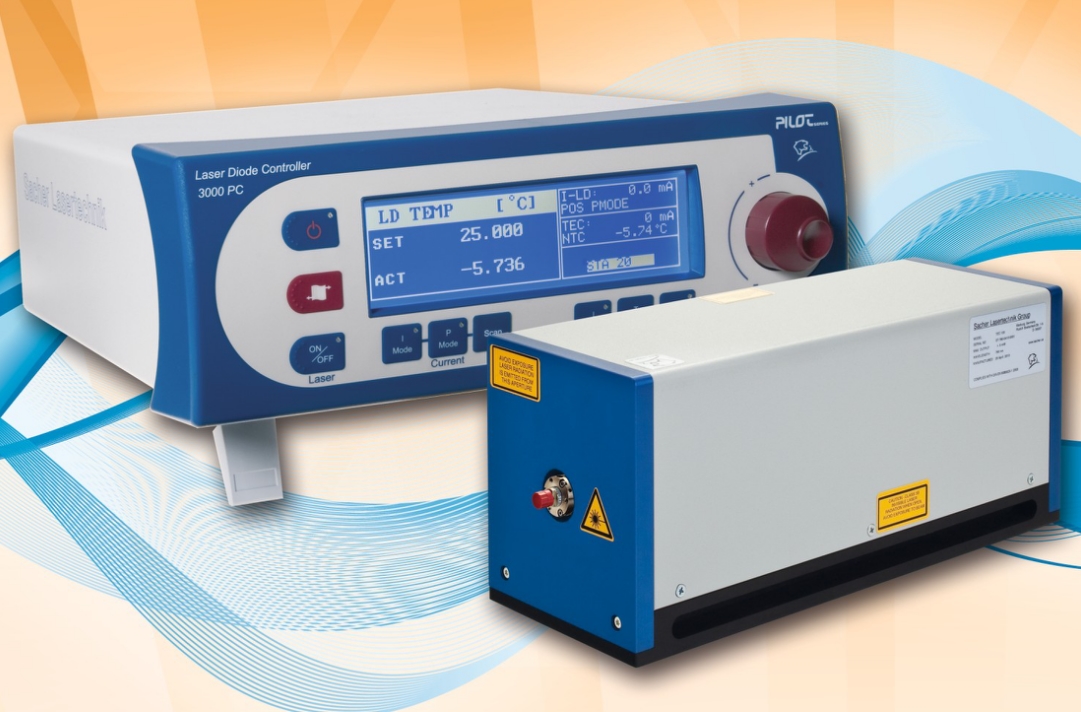

Littman/Metcalf/Littrow tunable laser system Lion (external cavity semiconductor laser and controller)

The tunable Littman/Metcalf laser system consists of a tunable external cavity semiconductor laser and a semiconductor laser controller, which has high stability, high output power, and flexible band selection. The Littman/Metcalf output power can reach 100mW, and the wavelength range is between 633nm and 2450nm

Product PN#	product name	Wavelength range	power	Other parameters
TEC-500-1060-030	990-1075nm Lion series external cavity diode laser (30mW total tuning range 85nm)	990nm-1075nm	30mW		Add Inquiry
TEC-520-1060-080	1030-1075nm Lion series external cavity diode laser (60mW total tuning range 45nm)	1030-1075nm	60mW		Add Inquiry

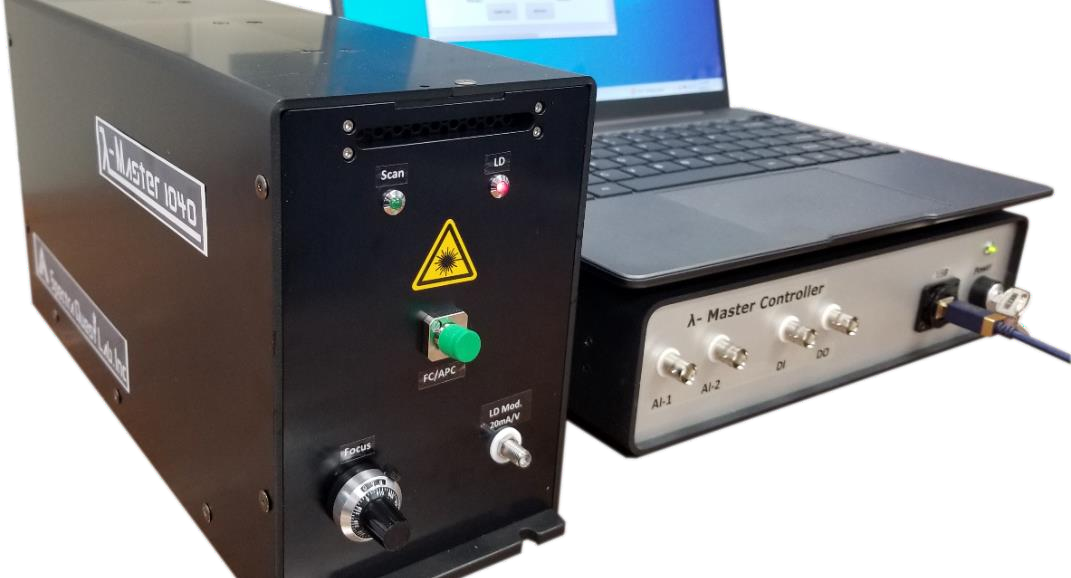

900nm narrow linewidth high-power tunable diode laser 100mW (＜ 100KHZ)

Our λ - Master 950 wavelength tunable laser uses our proprietary transposed Littman type external resonator structure to completely separate ASE from the output axis without sacrificing optical output intensity, achieving high output intensity and high spectral purity (without ASE). In addition, the Littman configuration is a geometrically and mathematically ideal configuration that has been partially deformed to compensate for the dispersion of LD chips and optical devices, enabling mode free hopping tuning over a wide wavelength bandwidth even in the 1um band, where chip dispersion becomes apparent, let alone in the communication band. In order to fully utilize the performance of the external cavity, a stepper motor type pressure contact slider with seamless and ultra precision motion was used as a wavelength tuning actuator to achieve wavelength scanning performance that facilitates precise spectral measurement. Other features include analog wavelength scanning using PZT, automatic focusing using high output power fiber couplers, and data acquisition synchronized with wavelength tuning, all of which can be fully utilized by spectral measurement software to meet the high requirements of laboratory users. The software is provided in executable file format, and the LabVIEW source code has also been distributed.

Product PN#	product name	Wavelength tuning range	Fiber coupling power	Line width	Other parameters
TL-950-FA-PZT	950nm λ - Master narrow linewidth high-power tunable diode laser	920~1010nm	60mW@ 990 nm	＜100kHZ		Add Inquiry

λ - Rapid high-speed ASE free tunable diode laser

Spectra Quest Lab offers tunable lasers that can provide mode free hopping tuning within a range of over 100nm (refer to technical specifications table), while suppressing ASE noise (SMSR>80dB) and providing high PM fiber output power at any wavelength. In the λ - Rapid high scanning rate ASE free tunable diode laser, our uniquely designed external cavity provides broadband mode free hopping tuning, with narrow linewidth, high spectral purity (ASE Free), high scanning speed, and high repetition rate. It can achieve a scanning rate of up to 600 nm/s, making it suitable for frequency domain measurement, such as OFDR (Optical Frequency Domain Reflectance) technology. It is compact in size and can be installed in instruments. All models have analog wavelength tuning capabilities using PZT and LD current modulation.

Product PN#	product name	Wavelength range	Maximum scanning rate	Max. Polarization maintaining fiber output power
λ-Rapid 1040	λ - Rapid1040 high-speed ASE free tunable diode laser	980-1080nm	250nm/s	50mW	Add Inquiry
λ-Rapid 1300	λ - Rapid1300 high-speed ASE free tunable diode laser	O波段	400nm/s	30mW	Add Inquiry
λ-Rapid 1580	λ - Rapid1580 high-speed ASE free tunable diode laser	C+L波段	600nm/s	30mW	Add Inquiry
λ-Rapid 950	λ - Rapid950 high-speed ASE free tunable diode laser	920-1000nm	250nm/s	40mW	Add Inquiry

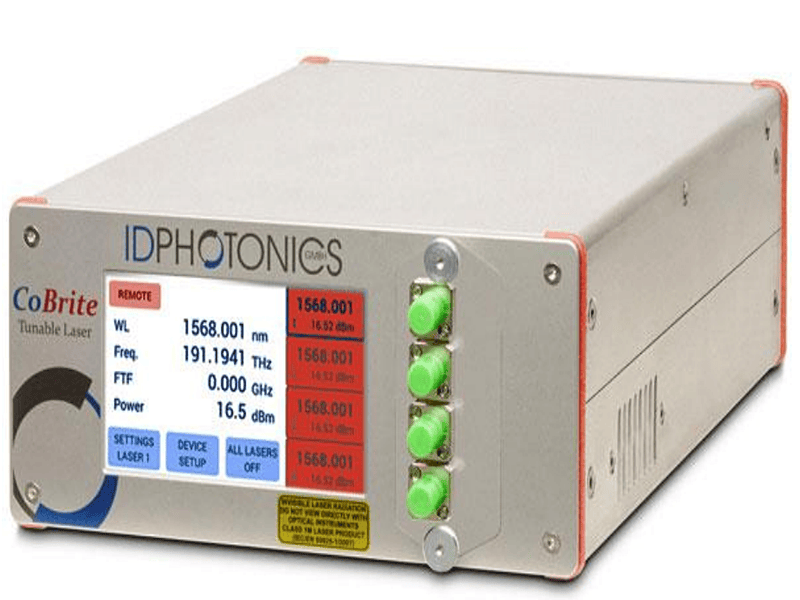

4-channel 1550nm narrow linewidth tunable laser 4.8-35.5mW

COBriteDX4 is a multifunctional tunable laser light source that can be controlled independently through a display screen, eliminating the hassle of installation, making it an ultra portable laser platform.

Product PN#	product name	Center wavelength	Line width	Fiber optic connector	Other parameters
CBDX4-4-C-N-FA	4-channel 1550nm narrow linewidth tunable laser (COBriteDX4 multifunctional tunable laser source)	1550nm	<25k Hz	FC/APC		Add Inquiry

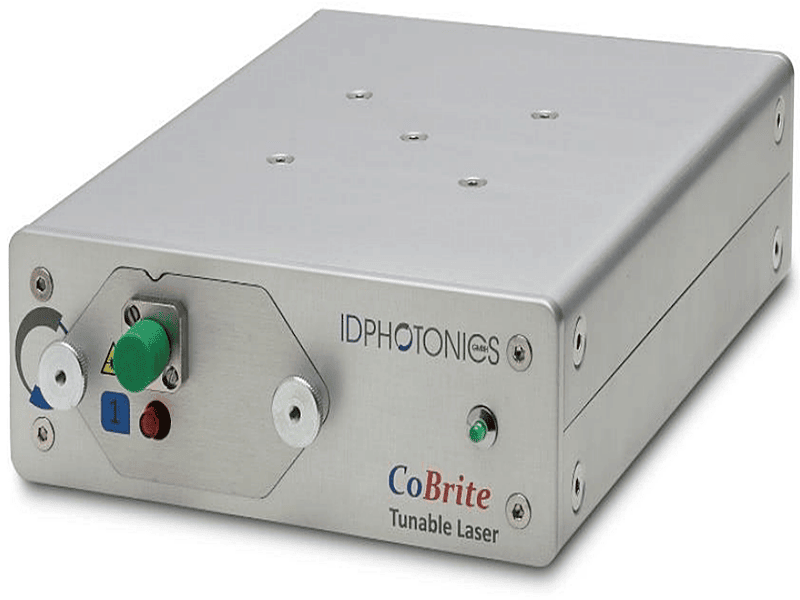

Dual channel 1550nm tunable narrow linewidth laser 4.8-35.5mW

CoBriteDX2 is a universal tunable laser instrument that allows for independent operation. It can be equipped with 1 or 2 tunable lasers to meet your specific needs. It can be remotely operated through an integrated web server, allowing control using any browser based device (such as a smartphone), thereby eliminating the need for complex software installation. Control through SCPI commands to achieve automatic remote control via USB or Ethernet. It allows users to set up and execute complex automated tasks within minutes.

Product PN#	product name	Line width	Fiber optic connector	Other parameters
CBDX2-2-C-N-FA	Dual channel 1550nm tunable narrow linewidth laser	<25k Hz	FC/APC		Add Inquiry

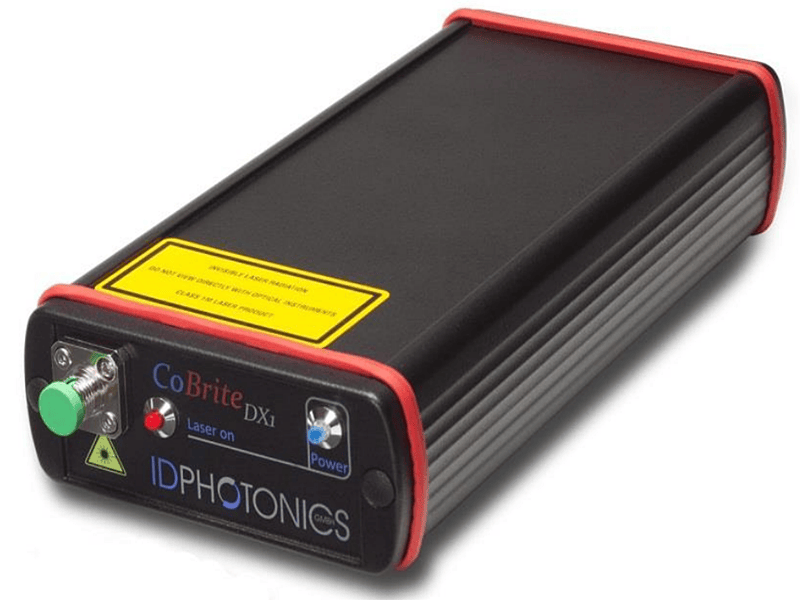

1550nm tunable narrow linewidth laser 7.6-60mW (multifunctional tunable laser source)

CoBriteDX1 is a multifunctional tunable laser light source. After connecting via USB, it can be installed and used using a graphical software interface. A computer can operate multiple lasers, and remote control can be achieved through SCPI commands, allowing users to set up and complete complex automation tasks. After setting up CoBriteDX1, it can run independently without a computer.

Product PN#	product name	Center wavelength	Line width	Fiber optic connector	Other parameters
CBDX1-1-NC-FA	1550nm tunable narrow linewidth laser (CoBriteDX1 multifunctional tunable laser source)	1550nm	25kHz	FC/APC		Add Inquiry

Pulse tunable laser source

Xiaoxiao Photon's tunable pulsed fiber laser has a center wavelength tunable within the 1550nm range and moderate output power. It provides a laser with a pulse width of approximately 5 to 100 ps. The center wavelength of the pulse laser is controlled by a computer through a USB interface.

Product PN#	product name	Wavelength	Average Power	Pulse Width	Repetition Frequency
OETPS-100-1060-1	1060nm pulse tunable laser source	1060nm	1W	5-100ps	500k-50MHz	Add Inquiry
OETPS-100-1550-1	1550nm pulse tunable laser source	1550nm	1W	5-100ps	50k-100MHz	Add Inquiry
OETPS-100-2000-1	2000nm pulse tunable laser source	2000nm	1W	5-100ps	1M-50MHz	Add Inquiry

785-2750nm tunable laser source (manual, electric tuning)

Xiaoxiao Photon's OETLS-300 tunable laser source can perform continuous scanning with a tuning range of up to 100 nm at different center wavelengths in the range of 780~3000 nm. Both manual tuning and electric tuning versions are available. In the electric version, the laser is controlled by a computer through a USB port. This compact and durable laser provides high side mode rejection ratio (SMSR) and excellent linear wavelength scanning, making it an effective solution for system integration applications.

Product PN#	product name	Wavelength	tuning range	power	polarization
OETLS-300-1060-60-20-L-M	1060nm manually tunable laser source	1060nm	60nm	20mW	线性	Add Inquiry
OETLS-300-1310-70-20-L-M	1310nm manually tunable laser source	1310nm	70nm	20mW	线性	Add Inquiry
OETLS-300-1550-90-30-L-M	1550nm manually tunable laser source	1550nm	90nm	30mW	线性	Add Inquiry
OETLS-300-2000-100-30-L-M	2000nm manually tunable laser source	2000nm	100nm	30mW	线性	Add Inquiry
OETLS-300-1060-60-20-L-E	1060nm electrically tunable laser source	1060nm	60nm	20mW	线性	Add Inquiry
OETLS-300-1310-70-20-L-E	1310nm electrically tunable laser source	1310nm	70nm	20mW	线性	Add Inquiry
OETLS-300-1550-90-30-L-E	1550nm electrically tunable laser source	1550nm	90nm	30mW	线性	Add Inquiry
OETLS-300-2000-100-30-L-E	2000nm electrically tunable laser source	2000nm	100nm	30mW	线性	Add Inquiry

λ Lock No ASE Manual Tunable Diode Laser

Introduce a low-cost and compact ASE free tunable laser. The wavelength can be manually adjusted by rotating the UM head; The LD current value and temperature control can be set through the front panel operation. In addition, current modulation and wavelength modulation (using PZT) can also be selected, and wavelength locking and other operations can be performed on the target signal. In addition to being used as a light source for spectral measurement, LD is also intended for the differential frequency generation and wavelength stabilization of terahertz and infrared light sources.

Product PN#	product name	Band	Power	Manual tuning resolution	Wavelength stability
LDTP95B2A3	920-1000nm manually tuned diode laser 125pm0.03nm	920-1000nm	40mW	125pm	0.03nm	Add Inquiry
LDTP95B2A5	920-1000nm manually tuned diode laser 125pm0.05nm	920-1000nm	40mW	125pm	0.05nm	Add Inquiry
LDTP40B2A5	980-1080nm manually tuned diode laser 125pm0.05nm	980-1080nm	50mW	125pm	0.05nm	Add Inquiry
LDTP95B2B3	920-1000nm manually tuned diode laser 200pm0.03nm	920-1000nm	40mW	200pm	0.03nm	Add Inquiry
LDTP95B2B5	920-1000nm manually tuned diode laser 200pm0.05nm	920-1000nm	40mW	200pm	0.05nm	Add Inquiry
LDTP95B2C3	920-1000nm manually tuned diode laser 250pm0.03nm	920-1000nm	40mW	250pm	0.03nm	Add Inquiry
LDTP95B2C5	920-1000nm manually tuned diode laser 250pm0.05nm	920-1000nm	40mW	250pm	0.05nm	Add Inquiry
LDTP40B2A3	980-1080nm manually tuned diode laser 125pm0.03nm	980-1080nm	50mW	125pm	0.03nm	Add Inquiry
LDTP40B2B3	980-1080nm manually tuned diode laser 200pm0.03nm	980-1080nm	50mW	200pm	0.03nm	Add Inquiry
LDTP40B2B5	980-1080nm manually tuned diode laser 200pm0.05nm	980-1080nm	50mW	200pm	0.05nm	Add Inquiry
LDTP40B2C3	980-1080nm manually tuned diode laser 250pm0.03nm	980-1080nm	50mW	250pm	0.03nm	Add Inquiry
LDTP40B2C5	980-1080nm manually tuned diode laser 250pm0.05nm	980-1080nm	50mW	250pm	0.05nm	Add Inquiry
LDTP13A2A3	O-band manually tuned diode laser 125pm0.03nm	O波段	25mW	125pm	0.03nm	Add Inquiry
LDTP13A2A5	O-band manually tuned diode laser 125pm0.05nm	O波段	25mW	125pm	0.05nm	Add Inquiry
LDTP13A2B3	O-band manually tuned diode laser 200pm0.03nm	O波段	25mW	200pm	0.03nm	Add Inquiry
LDTP13A2B5	O-band manually tuned diode laser 200pm0.05nm	O波段	25mW	200pm	0.05nm	Add Inquiry
LDTP13A2C3	O-band manually tuned diode laser 125pm0.03nm	O波段	25mW	125pm	0.03nm	Add Inquiry
LDTP13A2C5	O-band manually tuned diode laser 250pm0.05nm	O波段	25mW	125pm	0.05nm	Add Inquiry
LDTP58A2A3	CL band manually tuned diode laser 125pm0.03nm	CL波段	25mW	125pm	0.03nm	Add Inquiry
LDTP58A2A5	CL band manually tuned diode laser 125pm0.05nm	CL波段	25mW	125pm	0.05nm	Add Inquiry
LDTP58A2B3	CL band manually tuned diode laser 200pm0.03nm	CL波段	25mW	200pm	0.03nm	Add Inquiry
LDTP58A2B5	CL band manually tuned diode laser 200pm0.05nm	CL波段	25mW	200pm	0.05nm	Add Inquiry
LDTP58A2C3	CL band manually tuned diode laser 250pm0.03nm	CL波段	25mW	250pm	0.03nm	Add Inquiry
LDTP58A2C5	CL band manually tuned diode laser 250pm0.05nm	CL波段	25mW	250pm	0.05nm	Add Inquiry

XOSCL Tunable Fiber Laser

Xiaoxiao Photon's WLTL series tunable fiber lasers are built on proprietary designs. The laser is mainly composed of a gain module and a frequency selection engine. Each component can be configured according to specific requirements, providing rich choices for achieving tuning range and changes in optical output power. Wavelength tuning is achieved by manually adjusting the micrometer or by a micro motor controlled by a PC through a USB interface. Fast setup, small footprint, fast scanning, wide tuning range, and availability of X, O, S, C, and L bands make lasers an economical and efficient light source for various wavelength measurement related testing and laboratory purposes, such as DWDM components, fiber Bragg gratings, and FGB sensors.

Product PN#	product name	Center wavelength	Tuning range	Typical output optical power
WLTL-100-1060-PM-0.9/1.0-FC/APC	1060nm manually tunable fiber laser	1060nm	85nm	5mW	Add Inquiry
WLTL-100-1310-PM-0.9/1.0-FC/APC	1310nm manually tunable fiber laser	1310nm	90nm	5mW	Add Inquiry
WLTL-200-1550-PM-0.9/1.0-FC/APC-USB	1550nm electrically tunable fiber laser	1550nm	100nm	5mW	Add Inquiry
WLTL-100-1550-PM-0.9/1.0-FC/APC	1550nm manually tunable fiber laser	1550nm	100nm	5mW	Add Inquiry
WLTL-200-1060-PM-0.9/1.0-FC/APC-USB	1060nm electrically tunable fiber laser	1060nm	85nm	5mW	Add Inquiry
WLTL-200-1310-PM-0.9/1.0-FC/APC-USB	1310nm electrically tunable fiber laser	1310nm	90nm	5mW	Add Inquiry
