InGaAs Bias Photodetector

American EOT high-speed photodetector (InGaAs/Si/GaAs) 830/1300/2000nm

Xiaoxiao Photon Company represents EOT (Electro Optics Technology) in the United States for all products

Product PN#	product name	Bandwidth	Responsiveness
ET-3010	Indium gallium arsenide InGaAs ET-3010 photodetector>2 GHz US EOT	>2 GHz	0.9Ａ/Ｗ＠1300ｎｍ	Add Inquiry
ET-3000	Indium Gallium Arsenide InGaAs ET-3000 InGaAs Indium Gallium Arsenide Photodetector>2 GHz US EOT	>2 GHz	0.9A/ W@1300nm	Add Inquiry
ET-5000F	Indium gallium arsenide InGaAs high-speed photodetector ET-5000F,> 10 GHz US EOT	>10 GHz	0.9Ａ／Ｗ＠2000ｎｍ	Add Inquiry
ET-5000	Indium gallium arsenide InGaAs high-speed photodetector ET-5000,> 10 GHz US EOT	>10 GHz	1.3Ａ／Ｗ＠2000ｎｍ	Add Inquiry
ET-3600F	Indium gallium arsenide InGaAs high-speed photodetector ET-3600F,> 22 GHz US EOT	>22 GHz	0.7Ａ／Ｗ＠1300ｎｍ	Add Inquiry
ET-3600	Indium gallium arsenide InGaAs high-speed photodetector ET-3600,> 22 GHz US EOT	>22 GHz	0.7Ａ／Ｗ＠1300ｎｍ	Add Inquiry
ET-3500F	Indium gallium arsenide InGaAs high-speed photodetector ET-3500F,> 15 GHz US EOT	>15 GH	0.65Ａ／Ｗ＠1300ｎｍ	Add Inquiry
ET-3000A	Indium Gallium Arsenide InGaAs Amplification Photodetector ET-3000A US EOT	30 kHz to １.５GHz	900 V/W ＠1300 nm	Add Inquiry
ET-3500	Indium gallium arsenide InGaAs high-speed photodetector ET-3500,> 15 GHz US EOT	>15 GHz	0.9Ａ／Ｗ＠1300ｎｍ	Add Inquiry

High speed photodetector

Monitor the pulse energy and/or pulse shape of the laser at GHz level speed, across visible and near-infrared wavelengths, and with extremely low noise equivalent power (NEP). BNC output connector.

Product PN#	product name	Photosensitive range	bandwidth
InGaAs-1.5/3.6um-1G/250ps-S	High speed photodetector InGaAs-1.5/3.6um-1G/250ps-S	1500-3600nm	1GHz	Add Inquiry
InGaAs-0.8/2.4um-1G/250ps-S	High speed photodetector InGaAs-0.8/2.4um-1G/250ps-S	800-2400nm	1GHz	Add Inquiry
InGaAs-0.4/1.7um-1G/250ps-S	High speed photodetector InGaAs-0.4/1.7um-1G/250ps-S	400-1700nm	1GHz	Add Inquiry
InGaAs-0.8/1.7um-20G/17ps-S	High speed photodetector InGaAs-0.8/1.7um-20G/17ps-S	800-1700nm	20GHz	Add Inquiry
InGaAs-0.8/1.7um-6G/60ps-S	High speed photodetector InGaAs-0.8/1.7um-6G/60ps-S	800-1700nm	6GHz	Add Inquiry
InGaAs-0.8/1.7um-3G/120ps-S	High speed photodetector InGaAs-0.8/1.7um-3G/120ps-S	800-1700nm	3GHz	Add Inquiry
InGaAs-0.8/1.7um-2G/140ps-S	High speed photodetector InGaAs-0.8/1.7um-2G/140ps-S	800-1700nm	2GHz	Add Inquiry

500-2600nm conventional indium gallium arsenide biased photodetector

Xiaoxiao Photon's indium gallium arsenide biased photodetector has a photosensitive range covering 500nm~2600nm, extremely low noise, fast response, no gain, low cost, suitable for conventional optoelectronic detection applications, excellent performance, high cost-effectiveness, and provides comprehensive technical support. It is commonly used for visible and infrared light measurement.

Product PN#	product name	Material	Sensitivity Range	Sensitivity Size	Rise Time
A80153435	500-1700nm indium gallium arsenide biased photodetector with a diameter of 1.0mm 5ns	铟镓砷	500-1700nm	Φ1.0mm	5ns	Add Inquiry
PDJBC9N10	900-1700nm indium gallium arsenide biased photodetector with a diameter of 1.0mm, 10ns	铟镓砷	900-1700nm	Φ1.0mm	10ns	Add Inquiry
PDJBC8J20	800-1700nm indium gallium arsenide biased photodetector with a diameter of 2.0mm and a duration of 30ns	铟镓砷	800-1700nm	Φ2.0mm	30ns	Add Inquiry
PDJBC9O5	900-2600nm indium gallium arsenide biased photodetector with a diameter of 0.5mm and a duration of 17ns	铟镓砷	900-2600nm	Φ0.5mm	17ns	Add Inquiry
PDJBC9O10	900-2600nm indium gallium arsenide biased photodetector with a diameter of 1.0mm and 25ns	铟镓砷	900-2600nm	Φ1.0mm	25ns	Add Inquiry

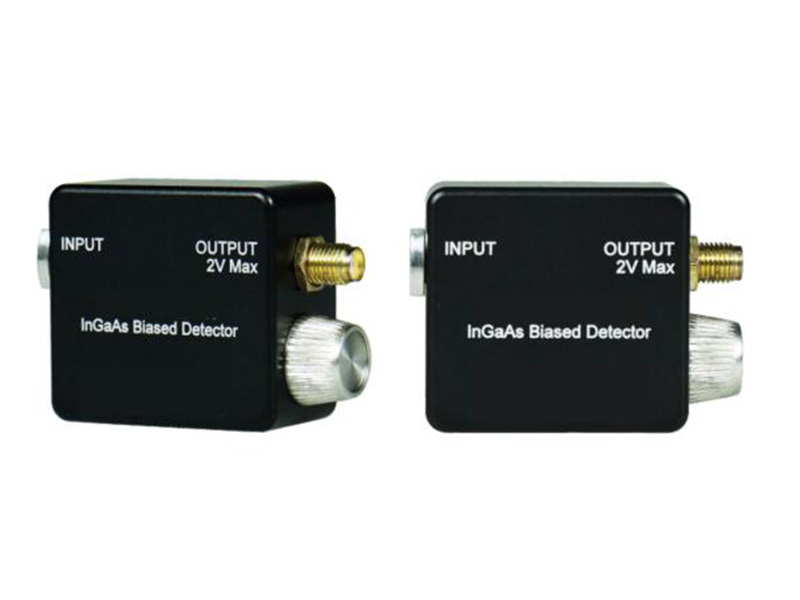

800-1700nm high-speed indium gallium arsenide biased photodetector

Xiaoxiao Photon's high-speed indium gallium arsenide biased photodetector covers a photosensitive range of 800nm~1700nm, with extremely low noise, fast response, no gain, and low cost. It is suitable for intensity time waveform measurement of high-speed laser pulses or emission events, with excellent performance and high cost-effectiveness. It provides comprehensive technical support and is commonly used in near-infrared light measurement.

Product PN#	product name	Wavelength range	Peak response	3dB bandwidth	Rise/fall time	Output voltage	Sensitivity size	Input coupling method
PDJBH8J08L	800-1700nm high-speed InGaAs bias photodetector, input coupling: ball lens.	800-1700nm	0.9A/W	5GHz	70ps	2V(Max)	Φ80um	球透镜	Add Inquiry
PDJBH8J08W	800-1700nm high-speed InGaAs bias photodetector, input coupling: window plate.	800-1700nm	0.9A/W	5GHz	70ps	2V(Max)	Φ80um	窗片	Add Inquiry
PDJBH8J08P	800-1700nm high-speed indium gallium arsenide biased photodetector, input coupling: FC/PC fiber holder	800-1700nm	0.9A/W	5GHz	70ps	2V(Max)	Φ80um	FC/PC光纤座	Add Inquiry
