Scanning laser

1060nm high coherence wavelength sweep light source 10mW (10dBm)

1060nm swept frequency laser light source, based on new MEMS technology, has advantages such as high output power, wide sweep frequency range, high coherence length, high reliability, compact size, and simple operation. The high coherence wavelength sweep frequency light source is suitable for high-speed and high-precision optical frequency domain reflectometry (OFDR). The size is very small, it can be built into various devices.

Product PN#	product name	Center wavelength	Scanning range	Fiber type	Other parameters
HCWSLS-1060-50-10-SA	1060nm high coherence wavelength sweep light source	1060nm	50nm	SMF		Add Inquiry

1060/1550nm high coherence wavelength sweep light source 10mW (10dBm)

The 1550nm high coherence wavelength sweep frequency light source is suitable for high-speed and high-precision optical frequency domain reflectometry (OFDR), allowing real-time and wide range OFDR measurements (μ m~100m). The use of MEMS technology can achieve long-term stable single-mode and non mode hopping wavelength scanning. It has the advantages of high output power, wide sweep frequency range, high coherence length, and high reliability.

Product PN#	product name	Working wavelength	Scanning range	Fiber type	Other parameters
HCWSLS-1550-100-10-SM	1550nm high coherence wavelength sweep light source	1550nm	100nm	SMF		Add Inquiry

Scanning semiconductor laser module 1528-1568nm 20mW

The scanning semiconductor laser module of Xiaoxiao (Shanghai) Photonics Technology Co., Ltd. is an adjustable laser module based on independent intellectual property rights. It has precise wavelength, stable power, and fast scanning speed, and is widely used in fiber Bragg grating demodulation systems and optical passive device testing systems.

Product PN#	product name	Working wavelength	Output power	Other parameters
GC-76000C	Scanning semiconductor laser module	1528-1568nm	20mW		Add Inquiry

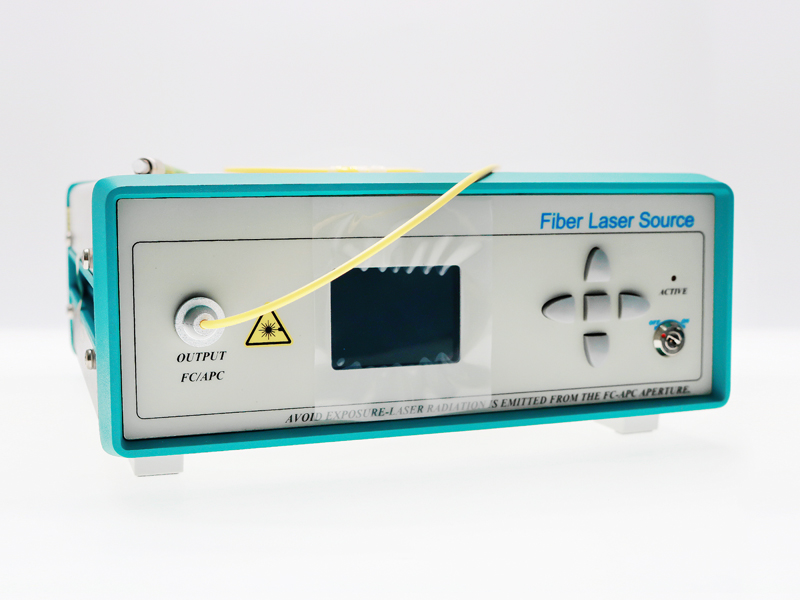

1550nm continuous high-speed scanning wavelength laser 20mW

The scanning wavelength laser adopts a dedicated VCSEL laser chip, which can achieve high-speed scanning of laser wavelength and output through single-mode fiber coupling. The professionally designed driver and temperature control circuit ensures stable operation of the laser, and can be provided in desktop or modular packaging.

Product PN#	product name	Working wavelength	Output power	Fiber optic connector	Other parameters
SFL-1550-10-SM-B	1550nm continuous high-speed scanning wavelength laser 20mW FC/APC	1550nm	20mW	FC/APC		Add Inquiry

1060nm kHz long depth 3D multimodal OCT imaging scanning laser source CALIPER-FLEX VCSEL 2-60kHz

The compact and flexible 3D imaging solution CALIPER-FLEX is a compact "turnkey" 1060nm laser module with adjustable kHz wavelength scanning frequency for long depth range 3D OCT imaging applications, using MS/s data acquisition. Long dry length can achieve a large imaging depth, combined with stable continuous wavelength scanning, FLEX is an ideal choice for 3D imaging applications that require remote and/or frame rate flexibility. FLEX is equipped with signal outputs for safety and synchronization. The CALIPER-FLEX VCSEL swept frequency laser adopts a single-chip MEMS-VCSEL structure and utilizes reliable data communication VCSEL technology and single material MEMS to improve reliability.

Product PN#	product name	Center wavelength	Optical power	Fiber output	Other parameters
Caliper-FLEX-STANDARD	1060nm swept frequency laser source CALIPER-FLEX VCSEL 2-60kHz	1060nm	>15mW	FC/APC接头		Add Inquiry
