Mode-locked laser

C-band desktop narrow linewidth lock-in semiconductor tunable laser 1528-1567nm 10/25mW

Our new product Clarity Plus Tunable Laser is a desktop tunable laser that spans the entire C-band, featuring a unique and rich feature set. The built-in NIST traceable molecular absorption reference cell (H13C14N) ensures ultra-high accuracy and stability in any wavelength range within this range. In addition, it is possible to lock more than 50 reference lines with an accuracy of<0.1pm. Provide ITU grid operation with continuous real-time offset and excellent output power stability. All of these are sold at very attractive prices. The plan includes subsequent versions of the L-band and module appearance.

Product PN#	product name	Working wavelength	Output power	Line width	Other parameters
Clarity PFR-1530-HP	Clarity PFR Series Frequency Locked Semiconductor Laser High Power Edition 25mW	1530nm	25mW	1MHz		Add Inquiry
Clarity NLL-1550-HP	Clarity PFR: NLL Frequency Locked Semiconductor Laser High Power Edition 25mW	1550nm	25mW	150kHz		Add Inquiry

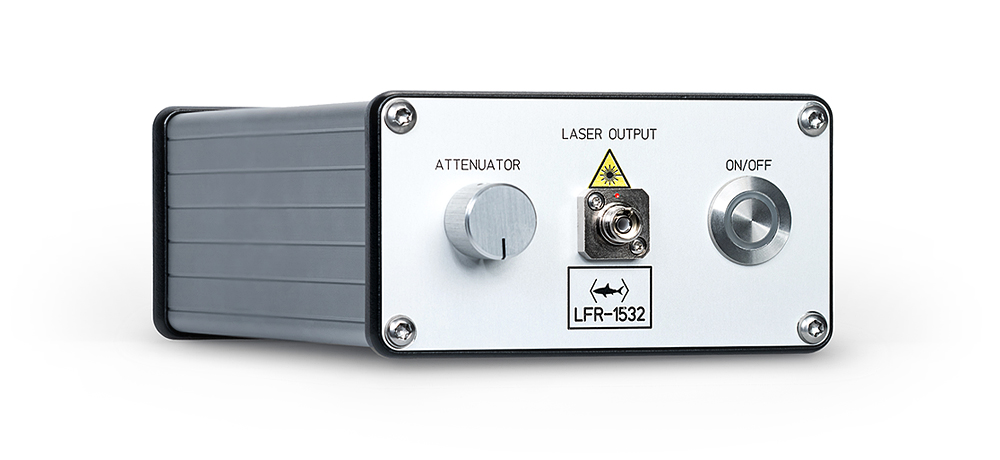

HighFinesse LFR 1532nm acetylene frequency stable narrow linewidth calibration source laser 3mW absolute accuracy 2MHz

HighFinesse LFR-1532 Calibration Source is a frequency stable narrow linewidth calibration source (acetylene). The laser frequency reference LFR-1532 uses an acetylene absorption spectroscopy system, which can achieve extremely accurate frequency stability and is very suitable for calibrating our wavelength meter in the infrared wavelength range.

Product PN#	product name	Output wavelength	Output power	Absolute accuracy	Other parameters
LFR-1532	1532nm acetylene calibration source laser 3mW absolute accuracy 2MHz	1532.83041 nm ± 0.07 pm	高达3mW(可调)	± 2 MHz		Add Inquiry

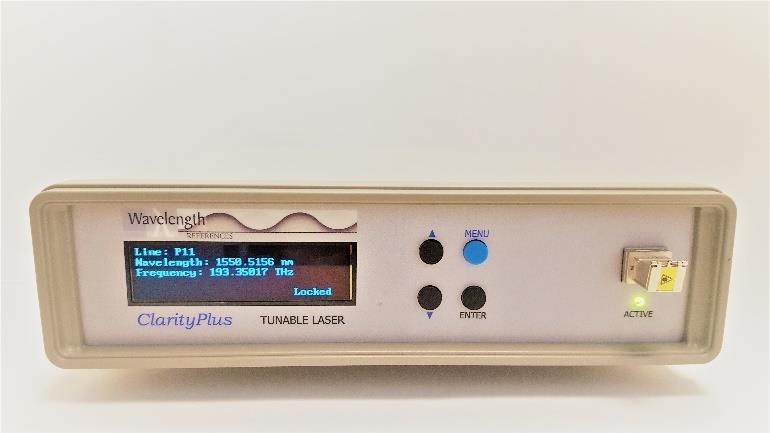

C-band desktop narrow linewidth lock-in semiconductor tunable laser 1528-1567nm 10/25mW

American Wavelength full C-band tunable laser, Clarity Plus ™ Our latest product, Clarity Plus Tunable Laser, is a desktop tunable laser with a unique and rich feature set across the entire C-band for precision frequency standards. The built-in NIST traceable molecular absorption reference cell (H13C14N) ensures that any wavelength within this range

Product PN#	product name	Wavelength range	c-band	Other parameters
CLX-C-FCAPC	A fully C-band tunable laser, Wavelength Clarity Plus	1528-1567nm	输出接头FCAPC		Add Inquiry
