Optical switch

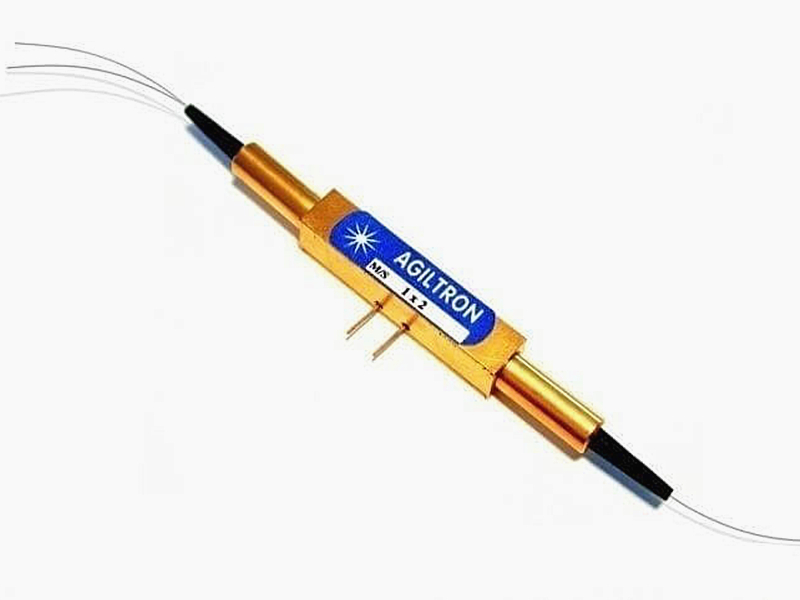

Agiltron 1x1,1x2 nanosecond ultrafast optical switch 1550nm 2W

The Agiltron CrystaLatch series, introduced by Xiaoxiao Photon, features a cost-effective CrystaLatch 1x1 and 1x2 CL series with a tail fiber optical switch that connects the input and selected output optical channels, enabling switching between different optical paths. The switching between optical paths is achieved based on patented structural design and electrical signal driving. This product has a unique locking function to ensure stable and reliable operation of the optical path even after power failure. The CL series 1x1 and 1x2 tail fiber optical switches with all solid state design have advantages such as low insertion loss, high extinction ratio, and good repeatability. This product has a fast response speed and can meet the needs of most optical switch application fields, achieving uninterrupted and fault free transmission of optical paths. It has excellent adaptability to complex environments such as mechanical vibration, shock, and temperature shock.

Product PN#	product name		Other parameters
NSSW-11-5-11-1-3-3-3	1x1 nanosecond ultrafast optical switch			Add Inquiry

1x4 magneto optic switch module 1525-1565nm 500mW

The Xiaoxiao Photon Microsecond Series Solid State 1 × 4 Magneto Optical Switch Module utilizes Faraday rotation effect to achieve optical path switching. This magneto optic switch adopts our company's technically recognized technology - no mechanical structure, all solid state crystal design, eliminating the need for mechanical movement to achieve optical path switching. The design of microsecond series optical switches meets most switch requirements, such as high stability and durability, high-speed response, and high-frequency continuous operation.

Product PN#	product name		Other parameters
ROPS10-14M1121120	1x4 Magneto-optic Switch Module			Add Inquiry

NanoSpeed 1x2 series fiber optic switch 780-1650nm (SMF, PMF, high power, bidirectional)

The NS series 1x4 solid-state fiber optic switch consists of three 1x2 cascaded optical switches. It connects optical channels by redirecting incoming optical signals to selected output fibers. The characteristics of this product are based on the obtained non mechanical structure (full crystal) design, which avoids the movement of mechanical components and the limitations of using organic materials. The high reliability, high response speed, and continuous switching advantages of this product can meet the needs of most optical switch application fields.

Product PN#	product name		Other parameters
NSSW-12-16XX-1-1-1-3-3-3	16XXnm 300ns 1X2 Ultrafast Optical Switch			Add Inquiry

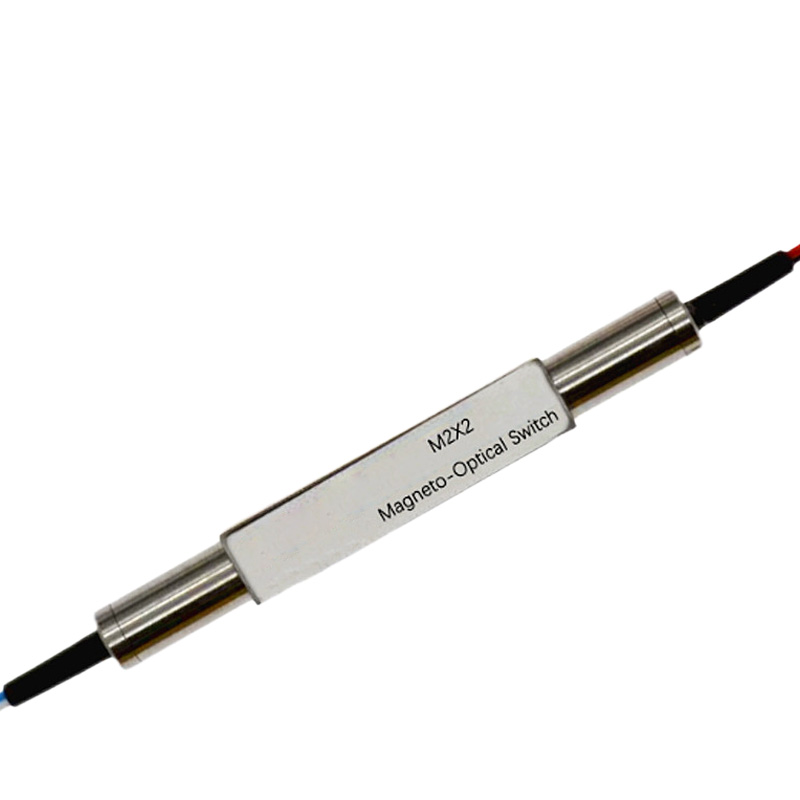

M2x2 magneto optic switch

The M2x2 optical switch achieves optical path connection by turning on or blocking optical signals. This switch has a non mechanical configuration and is activated through electrical control signals. The switch also has built-in cycler and isolator functions. The product is widely used in aerospace and military equipment

Product PN#	product name		Other parameters
YFS-M2x2-B-S-2.5-1550-900-10-FA	M2x2 Magneto-Optic Switch			Add Inquiry

MEMS 1x32 optical switch (module packaging)

Xiaoxiao Photon's MEMS 1x32 optical switch is an optical switch based on MEMS (Micro Electro Mechanical Systems) technology that allows channel selection between a single input light and 32 output lights. It has the characteristics of small size, long lifespan, and stable reliability, and is widely used in optical network fields such as OADM and OXC.

Product PN#	product name		Other parameters
MEMS-1X4-MA	1x4 Multimode MEMS Optical Switch (Module)			Add Inquiry
MEMS-1X32-SA	MEMS 1x32 Optical Switch (Module Package)			Add Inquiry

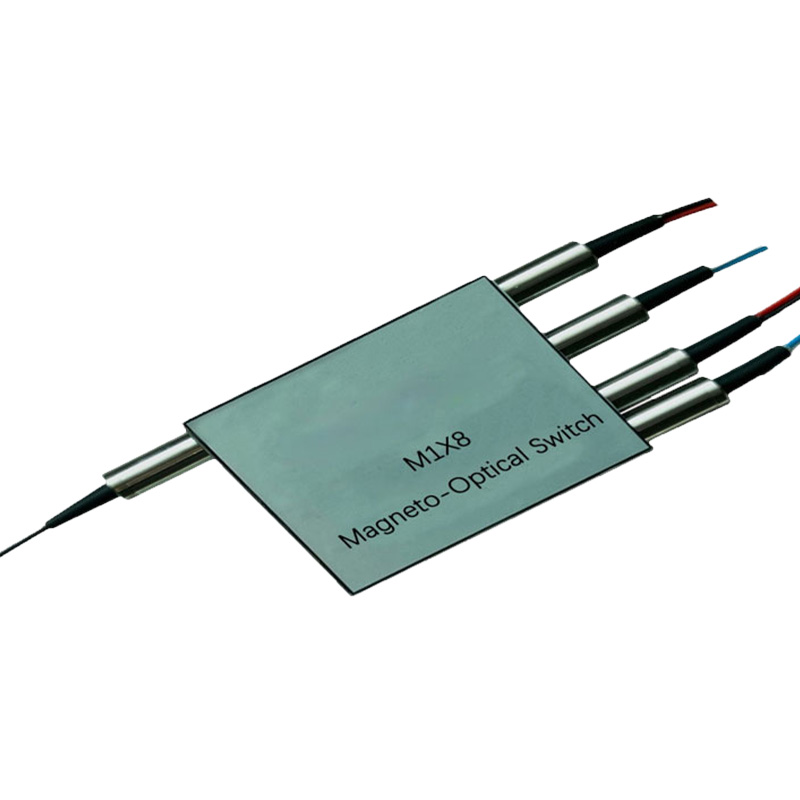

M1x8 magneto optic switch

The M1x8 optical switch connects the optical path by turning on or blocking the optical signal. This switch has a non mechanical configuration and is activated through electrical control signals. The switch also has built-in cycler and isolator functions. The product is widely used in aerospace and military equipment.

Product PN#	product name		Other parameters
LP-M1x8-B-S-2.5-1550-900-10-FA	M1x8 Magneto-Optical Switch			Add Inquiry

Customized optical switch 300-2400nm

We can customize optical switches for any wavelength (300nm-2400nm) and any type of fiber (single-mode, PM, multimode fiber, fiber core size up to 1mm) Types with OEM or turnkey solutions. Optical switches are mainly used in industries such as optical communication, optical instruments, fiber optic sensors, and biomedical applications.

Product PN#	product name	Structure	Type	Wavelength	Sleeve Diameter	Fiber Length	Connector	Other parameters

Multi channel optical switch 400-2000nm

The new multi-channel optical switch provides channel selection between single input and N-output optical fibers. The number of output channels is specified by the customer and can be 1x16, 1x32 to 1x64. Equipped with a turnkey solution, the operation is controlled through a computer via USB interface and software. This 1x64 optical switch can be an OEM or desktop model. They are also highly suitable for applications in telecommunications, manufacturing, and testing environments.

Product PN#	product name	Number of output channels	Working wavelength	Other parameters

NanoSpeed cascaded 1x4 fiber optic switch 780-2000nm

Product PN#	product name	Maximum operating wavelength	Return loss	Operating temperature	Storage temperature	Other parameters
