Fluoride Fiber

ZFG mid infrared fluoride multimode fiber 0.3-4.5um

ZFG multimode fiber composite glass fiber composed of heavy metal fluorides. Compared with widely used quartz fibers, ZFG multimode fibers have a wide transmission wavelength range of 0.04 μ m~4.5 μ m and high emission efficiency of doped rare earth ions. In the application field of fiber lasers and amplifiers, in order to optimize their efficiency, Xiaoxiao Photon has developed a unique fiber manufacturing technology to produce high-quality (especially low loss) fluoride fiber at low cost. Customized fiber lasers and amplifiers, Mid IR supercontinuum LVF nonlinear single-mode fibers, can achieve very flat and broadband output spectra due to their excellent performance. Mid infrared spectroscopy and optical measurement, customized rare earth doped fluoride glass blocks for fluorescence research manufactured by LVE. Xiaoxiao Photon provides a full range of ZFG fiber products that can meet the demanding needs of fiber lasers. It can customize cutoff wavelength, core diameter, cladding diameter, etc. Xiaoxiao Photon provides you with a solution for Quan directional red external lines.

Product PN#	product name	Numerical aperture	fiber core diameter
ZFG-MM-(0.20)600/680	ZFG multimode fiber (heavy metal fluoride doped fiber core 600um NA0.20 0.3-4.5um)	0.20	600um	Add Inquiry
ZFG-MM-(0.20)400/460	ZFG multimode fiber (heavy metal fluoride doped fiber core 400um NA0.20 0.3-4.5um)	0.20	400um	Add Inquiry
ZFG-MM-(0.20)300/360	ZFG multimode fiber (heavy metal fluoride doped fiber core 300um NA0.20 0.3-4.5um)	0.20	300um	Add Inquiry
ZFG-MM-(0.20)200/260	ZFG multimode fiber (heavy metal fluoride doped fiber core 200um NA0.20 0.3-4.5um)	0.20	200um	Add Inquiry
ZFG-MM-(0.20)90/150	ZFG multimode fiber (heavy metal fluoride doped fiber core 90um NA0.20 0.3-4.5um)	0.20	90um	Add Inquiry
ZFG MM (0.15) 90/150	ZFG multimode fiber (heavy metal fluoride doped fiber core 90um NA0.15 0.3-4.5um)	0.15	90um	Add Inquiry

ZBLAN fluoride ZFG single-mode fiber (0.3-4.50um)

ZFG fiber optic composite glass fiber composed of heavy metal fluorides. Compared with widely used quartz fibers, ZFG fibers have a wide transmission wavelength range of 0.3 μ m to 4.5 μ m and high emission efficiency of doped rare earth ions. In the application field of fiber lasers and amplifiers, in order to optimize their efficiency, Xiaoxiao Photon has developed a unique fiber manufacturing technology to produce high-quality (especially low loss) fluoride fiber single-mode fibers at low cost. With a specific D-type core, customized fiber lasers and amplifiers can be designed and manufactured. Mid IR supercontinuum LVF nonlinear single-mode fibers can achieve very flat and broadband output spectra due to their excellent performance. Mid infrared spectroscopy and optical measurement using a mid infrared supercontinuum laser. Xiaoxiao Photon provides a full range of ZFG fiber products that can meet the demanding needs of fiber lasers. It can customize cutoff wavelength, core diameter, cladding diameter, etc. Xiaoxiao Photon provides you with a solution for Quan directional red external lines.

Product PN#	product name	Working wavelength	Cut off wavelength	Core diameter
ZFG-SM-(2.55)8.5/125-FC/APC-1.5	Fluoride single-mode ZBLAN fiber jumper 0.3-4.50um (core diameter 8.5um FC/APC 1.5 meters long)	0.3~4.50μm	2.55μm	8.5um	Add Inquiry
ZFG SM (1.95) 6.5/125-FC/APC-2	Fluoride single-mode ZBLAN fiber jumper 0.3-3.9um (core diameter 6.5um FC/APC 2m)	0.3~3.9μm	1.95μm	6.5um	Add Inquiry
ZFG-SM(2.2)7.5/150	Fluoride single-mode ZBLAN fiber 0.3-4.0um (core diameter 7.5um, cutoff wavelength 2.2um)	0.3~4.0μm	2.2μm	7.5um	Add Inquiry
ZFG-SM-(2.2)14/250	Fluoride single-mode ZBLAN fiber 0.3-4.1um (core diameter 14um, cutoff wavelength 2.2um)	0.3~4.1μm	2.2μm	14um	Add Inquiry
ZFG-SM-(2.55)8.5/125	Fluoride single-mode ZBLAN fiber 0.3-4.50um (core diameter 8.5um, cutoff wavelength 2.55um)	0.3~4.50μm	2.55μm	8.5um	Add Inquiry
ZFG SM (1.95) 6.5/125	Fluoride single-mode ZBLAN fiber 0.3-3.9um (core diameter 6.5um, cutoff wavelength 1.95um)	0.3~3.9μm	1.95μm	6.5um	Add Inquiry

(Non doped) MMFF step type multimode fluoride fiber NA0.29

ZBLAN multimode fiber has a wide range of transparent windows. Due to the fact that both the core and cladding are composed of fluoride glass, the optical fiber has good transparency in the wavelength range of 0.35-4um, making it an excellent choice for near-infrared and mid infrared spectral waveguides. It can provide both fiber with loose tube and bare fiber.

Product PN#	product name	Core diameter	numerical aperture
ZMF-400/500-N-0.29-1-30P-N-N	Non doped MMFF multimode fluoride fiber 0.35-4um (core diameter 400um) customized	400±25um	0.29	Add Inquiry
ZMF-100/125-N-0.29	Non doped MMFF multimode fluoride fiber 0.35-4um (core NA0.29, core diameter 95um)	95±5um	0.29	Add Inquiry
ZMF-160/200-N-0.29	Non doped MMFF multimode fluoride fiber 0.35-4um (core NA0.29, core diameter 160um)	160±10um	0.29	Add Inquiry
ZMF-400/500-N-0.29	Non doped MMFF multimode fluoride fiber 0.35-4um (core diameter 400um)	400±25um	0.29	Add Inquiry

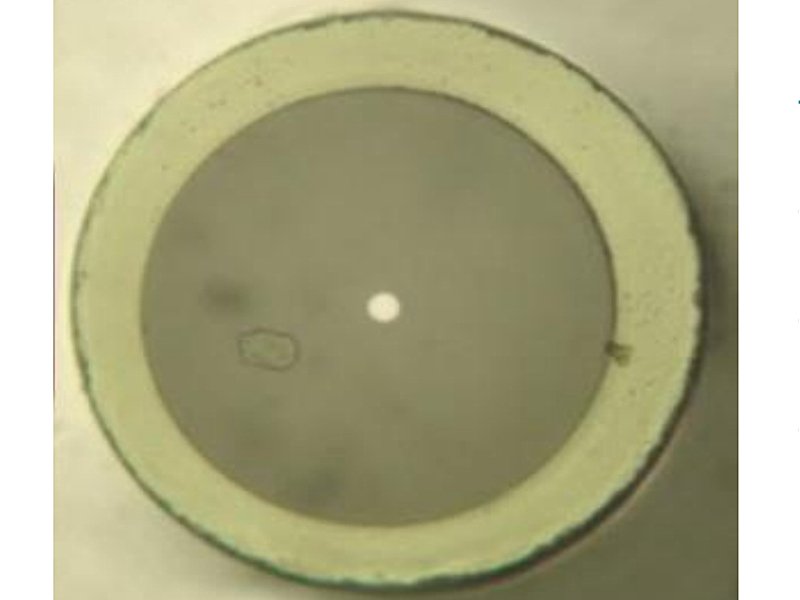

(Non doped) single-mode fluoride fiber (0.6-3.45um)

ZBLAN fiber can transmit single-mode light to a wavelength of 4um by adjusting the core diameter and aperture. Single mode fluoride fiber (SMFF) is more stable than MFF transmission and is more suitable for accurate spectroscopy. Especially in the wavelength band of 3um, due to the vibrations of C-H and N-H, many strong absorption bands are generated. Non doped SMFF is a commonly used optical waveguide in infrared spectroscopy.

Product PN#	product name	Cut off wavelength	Core diameter	Numerical aperture
ZSF-3/125-N-0.25	(Non doped) single-mode fluoride fiber with a core diameter of 3um and a cutoff wavelength of 2.35um	<2.35um	3um	0.25	Add Inquiry
ZSF-9/125-N-0.26	(Non doped) single-mode fluoride fiber core diameter 9um, cutoff wavelength 3.45um, numerical aperture 0.26	<3.45um	9um	0.26±0.01	Add Inquiry
ZSF-9/125-N-0.20	(Non doped) single-mode fluoride fiber core diameter 9um, cutoff wavelength 2.6um, numerical aperture 0.20	<2.6um	9um	0.20±0.01	Add Inquiry
ZSF-7.5/125-N-0.26	(Non doped) single-mode fluoride fiber core diameter 7.5um cutoff wavelength 2.9um numerical aperture 0.26	<2.9um	7.5um	0.26±0.01	Add Inquiry
ZSF-7.5/125-N-0.20	(Non doped) single-mode fluoride fiber core diameter 7.5um cutoff wavelength 2.3um numerical aperture 0.20	<2.3um	7.5um	0.20±0.01	Add Inquiry
ZSF-6/125-N-0.26	(Non doped) single-mode fluoride fiber core diameter 6um, cutoff wavelength 2.4um, numerical aperture 0.26	<2.4um	6um	0.26±0.01	Add Inquiry
ZSF-6/125-N-0.20	(Non doped) single-mode fluoride fiber with a core diameter of 6um and a cutoff wavelength of 1.85um	<1.85um	6um	0.20±0.01	Add Inquiry

Rare earth doped ZBLAN double clad fluoride bare optical fiber (FL ZDF series)

One of the characteristics of ZBLAN fluoride fiber is the high efficiency of light emission from various rare earth dopants, such as Tm, Pr, and Er. Single mode ZBLAN fiber core pulling optical amplifier doped with rare earth elements, ASE light source, and fiber laser are used as gain media for optical fibers.

Product PN#	product name	Ho/Pr concentration	Core diameter	Core numerical aperture NA	First cladding diameter	Other parameters
ZDF-10/125-30H2.5P-O	Rare earth Ho Ho/Pr praseodymium doped ZBLAN double clad fluoride bare fiber	30000/2500ppm mol	10+/-1um	0.17+/-0.02	八角形包层形状		Add Inquiry
