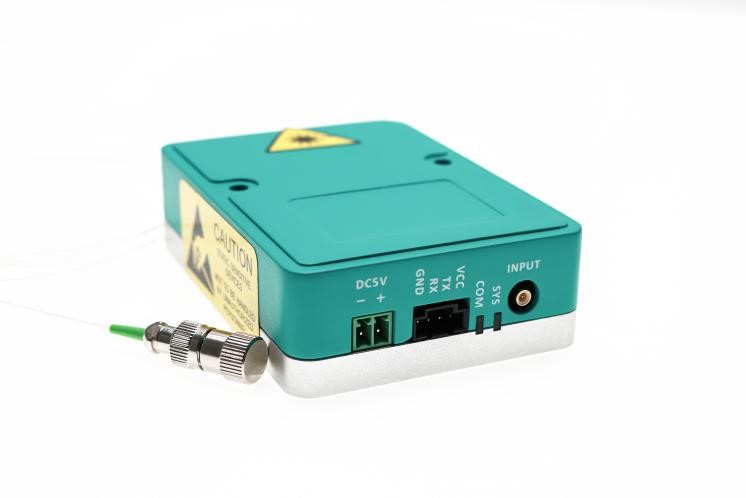

1560nm PPLN waveguide doubling module

Optical frequency doubling has a wide range of applications in laser technology. It can convert infrared laser into visible laser, or convert visible laser into shorter wavelength laser, thereby expanding the coverage range of laser spectral lines. To obtain lasers with shorter wavelengths, multi-stage frequency doubling technology can be used. At present, there are many types of frequency doubling crystals that can achieve considerable frequency doubling conversion efficiency. The nonlinear crystal of Xiaoxiao Photon can achieve nonlinear processes such as sum frequency, difference frequency, and frequency doubling. Taking the 1560nm PPLN frequency doubling crystal as an example, the principle and performance of this product will be introduced. This crystal utilizes second-order nonlinear effects to convert 1560nm light into 780nm light output, achieving optical second harmonic generation. Optical second harmonic, also known as optical second harmonic, refers to the phenomenon where a monochromatic light with a frequency of ω 1 is incident on a nonlinear medium and produces a 2 ω 1 light wave. It is a manifestation of the second-order nonlinear polarization generated by the medium under the action of the fundamental frequency light wave electric field. In addition, the crystal is a waveguide structure with high frequency doubling efficiency. The input and input ends of the waveguide are coupled with polarization maintaining jumpers corresponding to the wavelength band, making it convenient for users to use directly without manual coupling.

Product PN#	product name		Other parameters
WH-0780-000-F-B-C	1560nm PPLN Waveguide Frequency Conversion Module			Add Inquiry

Single frequency narrow linewidth laser diode module (633/660/785/830/895/1064/1572nm) 30mW

Product PN#	product name		Other parameters
LDRV-MINI-PL-NL-633-30-A81-SA	Single frequency narrow linewidth laser diode module single mode (633nm 30mw SM600)			Add Inquiry
LDRV-MINI-PL-NL-633-30-A81-PA	Single-frequency narrow-linewidth laser diode module, polarization-maintaining (633nm 30mW PM630)			Add Inquiry

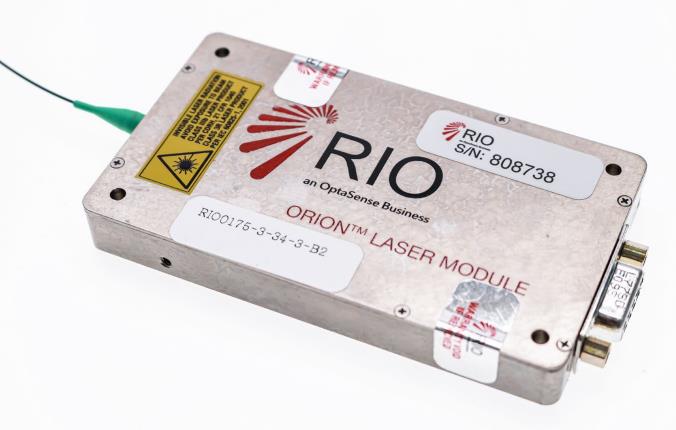

1550nm RIO ORION narrow linewidth laser module (light source) 10-30mW

RIO's narrow linewidth laser module has excellent performance and reliability (compliant with Telcordia GR-486 specifications). Up to 20mW output power, very low relative intensity noise (RIN), ultra-low phase noise and narrow linewidth, excellent wavelength stability. Strong anti vibration performance.

Product PN#	product name	Center wavelength	Output power	Line width	Fiber optic connector	Other parameters

1550nm narrow linewidth single frequency semiconductor laser module 10mW

The narrow linewidth single frequency laser of LD-PD adopts a unique semiconductor external cavity structure. The typical output bandwidth is less than 3kHz linewidth, and the sensitivity of wavelength to vibration is low. This device has high edge mode suppression ratio, low relative intensity noise, and excellent wavelength stability, making it suitable for various applications in harsh environments. LD-PD narrow linewidth single frequency laser has independent technical recognition, high structural stability, mature technology, and is suitable for mass production. This product complies with Telcordia GR-468 standard and has passed long-term reliability testing.

Product PN#	product name		Other parameters
PL-NLWM-1550-B-1-PA-A-M	1550nm narrow linewidth single-frequency semiconductor laser module 10mW			Add Inquiry

1064nm RIO ORION narrow linewidth laser module (light source) 10-20mW

1064 nm ORION ™ The laser module is built on RIO PLANEX ™ Based on the validated performance of the product series. In addition to reliability (Telcordia GR-486 qualified technology platform) and robustness, the ORION laser module also has values such as up to 20 mW output power, extremely low RIN, low phase noise and narrow linewidth, and excellent wavelength stability.

Product PN#	product name	Center wavelength	Output power	Line width	Other parameters

High power narrow linewidth ECL external cavity semiconductor laser module 1550nm 10mW<5KHz

Product PN#	product name		Other parameters
SCL0-ECL-1550-A-A81-L02-M0-SA	High Power Narrow Linewidth ECL External Cavity Semiconductor Laser Module 1550nm 10mW 5KHz			Add Inquiry

Clarity NLL 1550nm Narrow Line Width Laser Module 35mW Line Width 5kHz

Clarity NLL is a compact, low-cost laser module that offers high power and extremely narrow linewidth. The laser uses ultra stable gas absorption lines in the feedback configuration to reduce the laser linewidth, indicated as<5KhZ, typically 1-2Khz. This linewidth is useful for any long baseline interferometric sensing application, such as distributed acoustic sensing (DAS), coherent LiDAR, or other applications. To support these applications, the module can also be configured to provide a linear high-speed frequency modulation capability of ± 70 MHz and a bandwidth of 1 MHz. Using standard telecommunications lasers and our own gas batteries can provide reliable and low-cost products to meet the needs of these applications

Product PN#	product name	Center wavelength	Output power	Line width	Other parameters

Clarity PFR Precision Frequency Laser Module C Band ITU Grid (8-16mW)

Clarity PFR continues to provide wavelength reference for the main frequency laser source. This module is designed for small-sized applications that are important, or for applications where the product will be embedded as an OEM component in the customer's product. The frequency of the laser has an accuracy of ± 0.1pm and can be sorted at several wavelengths within the range of 1300nm to 1610nm. Please consult the factory for availability. The laser can be provided in a sturdy aluminum casing or even at the board level for easy integration into customers' products. Custom firmware specific to customer requirements can also be provided.

Product PN#	product name	Center wavelength	Output power	Other parameters

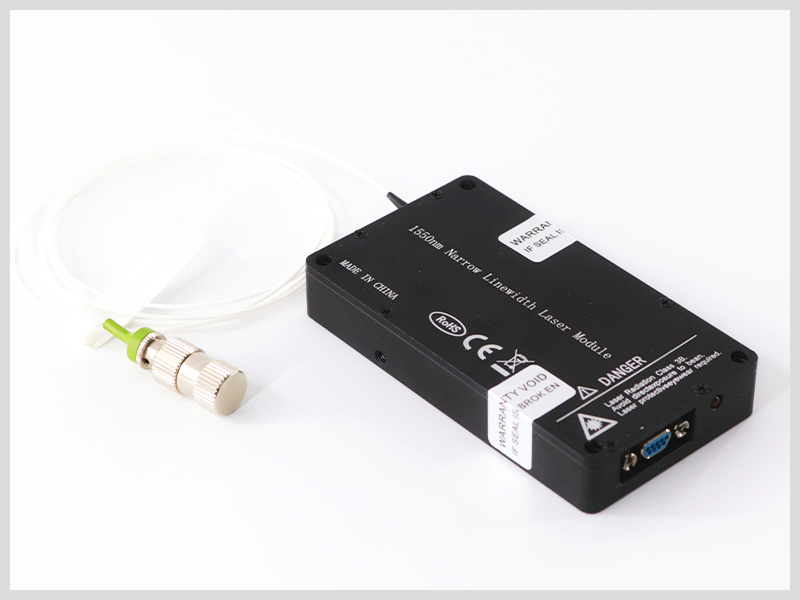

1550nm narrow linewidth single frequency laser module 40mW

文档图片 70/1000 实时翻译文档图片70/1000实时翻译划译LD-PD INC窄线宽半导体激光模块具有超低RIN噪声和超窄线宽等特点，目前广泛应用于车载LiDAR和光纤传感检测系统。划译 The LD-PD INC narrow linewidth semiconductor laser module has characteristics such as ultra-low RIN noise and ultra narrow linewidth, and is currently widely used in vehicle mounted LiDAR and fiber optic sensing detection systems.

Product PN#	product name
LD-PD-1550-20-16-PM-FC/APC	1550nm narrow linewidth single-frequency laser module ＜20kHz polarization maintaining	Add Inquiry
LD-PD-1550-2-16-PM-FC/APC	1550nm narrow linewidth frequency stabilized laser module 2kHz-5kHz polarization maintaining	Add Inquiry
LD-PD-1550-20-16-SM-FC/APC	1550nm narrow linewidth single frequency laser module＜20kHz single mode	Add Inquiry
LD-PD-1550-2-16-SM-FC/APC	1550nm narrow linewidth frequency stabilized laser module 2kHz-5kHz single mode	Add Inquiry

785nm SLM semiconductor single longitudinal mode laser 100mW (VBG Diode; free space light output)

Single frequency (SLM) 785nm laser is very popular in Raman spectroscopy. At this wavelength, good fluorescence suppression was observed because many fluorescent groups are not easily excited in the near-infrared range. The smaller footprint and+5VDC (typical USB) operating voltage are exactly what handheld portable devices need. Integrated precision drive electronics ensure low noise and very stable operation across a wide temperature range. The 785nm near-infrared laser has the characteristic of low photon energy. At the same time, our VBG technology provides a low-cost solution for complex Raman spectroscopy requirements.

Product PN#	product name	Center wavelength	Output power	Other parameters

Mid infrared 3-4um broadband tunable single frequency narrow linewidth laser 1W

OPPO-MIR-341 is a mid infrared wavelength tunable laser based on optical parametric oscillation (OPO). OPPO-MIR uses a highly stable fiber laser as the pump source to pump optical parametric oscillation cavity. By adjusting the crystal parameters inside the OPO cavity, tunable output in the wavelength range of 3-4 μ m can be achieved. Depending on the type of pump light source, MIR-0P0-341 can output watt level narrow linewidth continuous light separately. When operating continuously, the laser outputs a narrow linewidth laser in the megahertz range, with wide range and high-precision adjustment characteristics, which is very suitable for high-resolution spectroscopy applications. Xiaoxiao Photon's OPPO-MIR tunable laser adopts an integrated design, and the wavelength and power adjustment can be fully automated through software adjustment. It has wide applications in remote sensing, detection, medical and infrared material characterization. Especially for the simulation application of gas absorption spectral lines in the ICL band, it is of great significance.

Product PN#	product name	Center wavelength	Tunable wavelength range	Output power	Other parameters

375nm-1064nm high stability compact laser system 1W

This compact laser module can be used in a large wavelength range between 375 and 1064nm, with an output power of up to 1000mW. Laser has excellent beam quality and wavelength stability, as well as analog and digital modulation functions up to 1.5MHz, excellent reliability, and impressive cost-effectiveness.

Product PN#	product name	Center wavelength	Output power	Other parameters

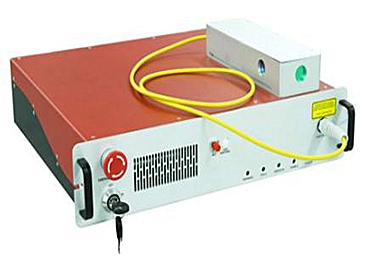

488nm continuous fiber laser and amplifier up to 2W

Xiaoxiao Photon is a company that develops, produces, and commercializes innovative fiber laser technology. Its excellent design represents a true breakthrough in the laser market, especially compared to other solid-state technologies. Our team is committed to combining strict fiber laser specifications: high power, single-mode, single frequency, ultra-low noise, to meet demanding applications. Different all fiber architectures can achieve reliability and efficient integration.

Product PN#	product name	Center wavelength	Output power	Spatial mode	Other parameters

405nm-830nm high stability compact wavelength locked laser system 10/35/40/45/70/100/150/500mW

This is a high wavelength stable compact laser system designed for Raman spectroscopy and high-resolution applications. This system provides exceptionally stable single-mode laser emission. The wavelength range is 405nm-830nm, with a coherence length of up to 2m, a typical edge mode suppression ratio of 40dB, and wavelength stability better than 0.001nm In addition, users can customize according to wavelength or output power.

Product PN#	product name	Center wavelength	Output power	Other parameters

633nm High Stability Compact Wavelength Locked Laser System 40/70mW

This is a 633nm high wavelength stable compact laser system suitable for Raman spectroscopy and high-resolution applications. This system provides exceptionally stable single-mode laser emission with a coherence length of up to 100m, a typical edge mode suppression ratio of 40dB, and wavelength stability better than 0.015nm, providing Max Two types of finished products with output power of 40mw and 70mw. In addition, users can also customize according to wavelength or output power.

Product PN#	product name	Center wavelength	Output power	Line width	Other parameters

Single frequency narrow linewidth DPSS single longitudinal mode laser 532nm CW

Xiaoxiao Photon provides a 532nm CW single frequency narrow linewidth DPSS laser, which integrates the resonant cavity of the LMX series single longitudinal mode laser into a small optical component with extremely low loss rate using its self-aligned resonant cavity technology and AMR design technology. The self-aligning resonant cavity technology ensures the long-term reliability, temperature stability, and insensitivity to mechanical vibrations of our single longitudinal mode laser resonant cavity. Its 532nm single longitudinal mode laser has a linewidth far less than 1MHz, power stability of ± 1% (up to 0.5% if required), beam quality less than 1.1, and power up to 2W. It is a cost-effective product applied in fields such as Raman detection, interferometry, holographic storage, biological detection, confocal microscopy, and material analysis.

Product PN#	product name		Other parameters
MP-532-100-SM	532nm CW Single-frequency Narrow Linewidth DPSS Laser (100mW)			Add Inquiry

355/532/1064nm three band continuous wave laser

355/532/1064nm three band continuous wave laser, ultraviolet, including visible and infrared bands

Product PN#	product name	Wavelength	Output Power	Other parameters

CW DUV single frequency continuous laser 213/266nm

The CW 266 nm DUV laser frequency series is composed of deep ultraviolet (DUV) wavelength (266 nm) continuous wave (CW) single frequency wavelength conversion lasers, with a history of more than 20 years. OXIDE's highly reliable wavelength conversion crystal and precision voice coil motor (VCM) achieved through proprietary high-speed servo locking technology enable stable continuous laser operation There are three types to choose from based on the required output: Frequency HP, Frequency M, and Frequency C

Product PN#	product name	Center wavelength	Output power	Line width	Other parameters

375-1064nm integrated compact direct diode laser 16-100mW

The JUNO Al in One laser integrated with the controller has a built-in controller in the laser head, consisting of a semiconductor laser pumped solid-state laser and a direct diode laser. It is a modular semiconductor laser with various wavelengths and has 16 wavelengths. JUNO Al in One series, ultra compact, with the same package size (excluding 594nm) and adopting the same interface design, can achieve space saving and energy-saving devices, and has been optimized for embedded lasers.

Product PN#	product name	Center wavelength	Output power	Line width	Other parameters

Multi wavelength laser module 375-780nm (multi wavelength beam combining laser/laser synthesizer)

You can choose two or three wavelengths from UV to NIR (375 nm -780 nm). The laser beam is mixed and output from a single-mode fiber.

Product PN#	product name	Wavelength range	output power	Other parameters

CW UV single frequency continuous ultraviolet laser 349nm 200mW (349 NX)

The 349 NX laser is an excellent DPSS CW single frequency laser that can operate in the UV range, providing excellent performance and versatility for various applications and system integration. With its excellent beam characteristics, high power stability, low noise, compact footprint, and software package, the design of the 349 NX laser exceeds your expectations.

Product PN#	product name	Center wavelength	Output power	Spectral bandwidth	Other parameters

320 NX ultra narrow linewidth single frequency continuous ultraviolet DPSS laser 320nm 200mW linewidth 0.5MHz

The 320 NX laser provides DPSS CW single frequency operation in the UV wavelength range, offering up to 200mW power, excellent beam characteristics, high output stability, extremely low noise, small footprint, and a multifunctional software package, making it suitable for a wide range of applications and system integration.

Product PN#	product name	Center wavelength	Output power	Spectral bandwidth	Other parameters

785nm high stability compact wavelength locked laser system 75-500mW (for Raman spectroscopy and high-resolution applications)

This is a 785nm high wavelength stable compact laser system suitable for Raman spectroscopy and high-resolution applications. This system provides exceptionally stable single-mode laser emission with a coherence length of up to 10m, a typical edge mode suppression ratio of 40dB, and wavelength stability better than 0.015nm, providing Max Several finished products with output power of 75MW, 100mW, 175MW, 225MW, and 500mW. In addition, users can also customize according to wavelength or output power.

Product PN#	product name	Center wavelength	Output power	Other parameters

532 NX high-power SLM continuous DPSS single longitudinal mode laser 532nm 2000mW linewidth<0.5MHz

Our 532 nm laser provides excellent single frequency performance with market leading output power, occupies a small footprint, and is suitable for integration with existing systems and a wide range of applications. The 532 NX provides excellent beam characteristics, high output stability, extremely low noise, and a universal software package.

Product PN#	product name	Output power	Center wavelength	Spectral bandwidth	Other parameters

532nm high stability compact single frequency narrow linewidth laser 200mW

This is a 532nm high wavelength stable compact laser system suitable for Raman spectroscopy and high-resolution applications. This system provides exceptionally stable single-mode laser emission, with a typical edge mode suppression ratio of 40dB and wavelength stability better than 0.15nm, providing Max Two types of finished products with output power of 120mw and 200mw. In addition, users can also customize according to wavelength or output power.

Product PN#	product name	Center wavelength	Output power	Other parameters

532nm continuous multi longitudinal mode DPSS laser 5W

Xiaoxiao Photon provides a 532nm 5W continuous multi longitudinal mode DPSS laser using its self-aligned resonant cavity technology The resonant cavity of the LMX series multi longitudinal mode laser is integrated into a small optical component with extremely low loss rate using AMR design technology. The self-aligning resonant cavity technology ensures the long-term reliability, temperature stability, and insensitivity to mechanical vibrations of the resonant cavity of our multi longitudinal mode laser The beam quality is less than 1.2, and the power can reach up to 10w It is a cost-effective product applied in fields such as Raman detection, interferometry, holographic storage, biological detection, confocal microscopy, and material analysis.

Product PN#	product name	Center wavelength	Output power	Other parameters

2.94 μ m 1W mid infrared medical beauty laser

The AUT-MP series laser is a fully sealed 2.94um continuous laser with a free space output power of up to 1W and optional fiber coupling output. As a breakthrough in diode pumped DPSS laser technology, AUT-MP is a 2.94 μ m Er: YAG laser with TEM output beam and sealed window packaging. AUT-MP operates at a wavelength of 2940nm, which is a wavelength with extremely high water absorption and is very suitable for use with water or materials containing a certain amount of moisture.

Product PN#	product name	Wavelength	Free light output power	Laser driving current	Other parameters

640 NX High Power SLM CW DPSS Single Longitudinal Mode Solid State Laser 640nm 1.5W

Our 640nm laser provides excellent single frequency performance, with excellent output power and small size in the market, making it suitable for integration with existing systems and a wide range of applications.

Product PN#	product name	Output power	wavelength	spectral bandwidth	Other parameters

Single longitudinal mode diode pumped solid-state laser module 320-640nm 20-200mW

When reliability and long service life are crucial, the DPSS laser series is the best choice. Special optical design and intelligent power and temperature control guarantee.

Product PN#	product name	Wavelength	Output Power	Beam Ellipticity	Other parameters

Silentsys SLIM LINER high spectral purity single frequency laser source 1530-1560nm (1-100mW linewidth less than 1Hz)

Slim Liner is a single frequency laser with an optical linewidth of less than 1 Hz and ultra-low phase/frequency noise and relative intensity noise. We can provide UTI grid single frequency lasers, optical reference single frequency lasers, and tunable single frequency lasers. Other wavelengths of lasers can also be provided upon request.

Product PN#	product name	Wavelength Range	Output Power	Wavelength Stability	Other parameters

AQA0600A high coherence single longitudinal mode continuous wavelength scanning light source module 1060nm 1250Hz greater than 10mW

The AQA0600A wavelength scanning light source outputs a single longitudinal mode laser, which undergoes continuous wavelength phase scanning without mode hopping. This modular light source is built into a 40 x 27 x 31.6mm metal package.

Product PN#	product name	Center wavelength	wavelength scanning range	scanning frequency	Other parameters

Skylark CW C-DPSS NIR 单频激光器 689/698/780/813/857nm 50-400mW

Skylark's 689/698/780/813/857nm lasers are specifically designed for deployment in systems using rubidium transitions. Featuring excellent beam characteristics, ultra stable output, and ultra compact packaging, it is highly suitable for demanding applications that require this wavelength.

Product PN#	product name	Output power	wavelength	spectral bandwidth	Other parameters

VALO-SF single frequency near-infrared NIR VECSEL system (vertical external cavity surface emitting laser)

VALO SF is a single frequency VECSEL system that can be used between 700-2100 nm. VALO combines a unique set of laser characteristics in a compact package: high-power continuous wave operation (1-4 W CW), narrow linewidth (<100 kHz), wide tuning (~10THz), and high beam quality (M2<1.1). The system includes a VECSEL head with an integrated pump laser, a control unit, and a low vibration cooler. The output power of the external pump laser is greater than 10 W.

Product PN#	product name	Center wavelength	Power (CW)	Other parameters

VALO SHG SF single frequency visible light VIS VECSEL system 350-750nm (vertical external cavity surface emitting laser)

VALO SHG SF is a special tunable single frequency VECSEL system with efficient intracavity second harmonic generation function. This newly developed laser can currently be used between 350-750 nm, with watt level output power, and uses the same turnkey VECSEL platform as our near-infrared VALO SF product line.

Product PN#	product name	Center wavelength	Output power	Locked linewidth	Other parameters

365-385nm ultraviolet light source

The UV curing light source based on high-power UV LED can be an ideal substitute for UV lamps. The light source provides an output power of over 500mW at two wavelengths of 365nm and 385nm. Most UV epoxy resins can cure within a few seconds. There are two types of UV light sources available for selection: point light sources and line light sources. By moving a linear ultraviolet light source (or object), square area UV epoxy resin can be cured with higher efficiency and yield than ultraviolet lamps.

Product PN#	product name	Wavelength	Power	Bandwidth	Type	Other parameters

Skylark 780 CW C-DPSS NIR 单频激光器 200mW

The Skylark 780 Single frequency CW C-DPSS NIR laser is specifically designed for deployment in systems using rubidium transitions. The 780 NX has excellent beam characteristics, ultra stable output, and ultra compact packaging, making it ideal for demanding applications that require a wavelength of 780 nm

Product PN#	product name	Space mode	Beam divergence angle	Beam pointing stability	Beam height	Other parameters
