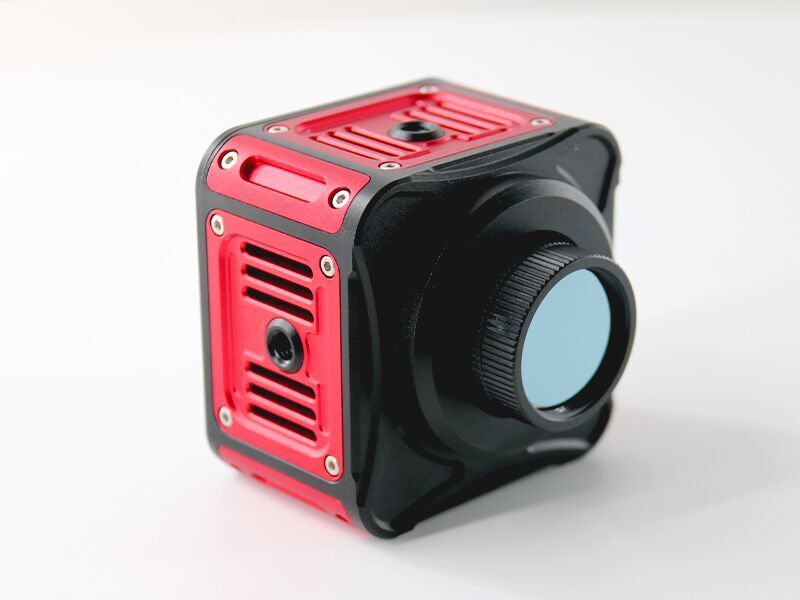

Ultra wideband infrared beam quality analyzer

Xiaoxiao Photon's infrared beam quality analyzer can achieve spot detection and parameter analysis in the range of 1.2-15 μ m, with spatial analysis accuracy of up to 10 μ m. It has the characteristics of ultra sensitive range, ultra large target surface, ultra-high resolution, and multifunctional software. Product features: Ultra wide photosensitive range, ultra large target surface, and ultra-high resolution. Application areas: Infrared imaging, infrared laser M2 testing, infrared optical system characterization. Main parameters: Optical properties. Typical values. Photosensitive surface composite film VOx micro thermal radiation focal plane wavelength range: μ m 1.2 μ m -15 μ m. Resolution: 640 × 512640 × 5121280 × 1024. Photosensitive surface size: mm 10.8 × 8.7mm 7.6 × 6.1mm 15.3 × 12.2mm. Pixel size: μ m 17 μ m 12 μ m 12 μ m Min Detecting light intensity of μ W/cm2100 μ W/cm2, saturated light intensity of mW/cm2200 mW/cm2, damage threshold of mW/cm2250mW/cm2Min. Can detect spot size of 10 times pixel sampling resolution bit14 bit signal-to-noise ratio ≥ 1000:1, can measure laser mode continuous (CW) or repetition rate ≥ 1kHz, output frame rate FPS25FPS, communication interface TYPE-C/USB3.0Max Laser power mW300mW (with attenuation film)/2MW (...)

Product PN#	product name		Other parameters
BAB1W	Ultra-Wideband Infrared Beam Quality Analyzer			Add Inquiry
