Multi mode fiber coupled high-power pump laser 793/808/915/976nm

The MHPL-XXX high-power laser light source is based on high-performance semiconductor laser chips, with 105/125um fiber coupled output. The professionally designed constant current drive and temperature control circuit ensures the safe and stable operation of the laser. Some models come with wavelength locking, and the spectral stability can be better than ± 3nm. Suitable for application in medical research, fiber laser pumping, and other production testing. We can provide desktop or modular packaging and offer upper computer monitoring software.

Product PN#	product name	Working wavelength	Output power	Packaging type
MHPL-976-10-MM-B	976nm high-power desktop multimode pump laser 10W	976nm	10W	台式封装	Add Inquiry
MHPL-808-5-MM-B	808nm high-power desktop multimode pump laser 5W	808nm	5W	台式封装	Add Inquiry
MHPL-915-5-MM-B	915nm high-power desktop multimode pump laser 5W	915nm	5W	台式封装	Add Inquiry
MHPL-915-10-MM-B	915nm high-power desktop multimode pump laser 10W	915nm	10W	台式封装	Add Inquiry
MHPL-915-25-MM-B	915nm high-power desktop multimode pump laser 25W	915nm	25W	台式封装	Add Inquiry
MHPL-976-5-MM-B	976nm high-power desktop multimode pump laser 5W	976nm	5W	台式封装	Add Inquiry

980nm high-power desktop single-mode pump light source 420mW/600mW/800mW/1W

Xiaoxiao Photon's Cobrite series 980nm high stability single-mode pump light source uses a single-mode semiconductor laser with FBG wavelength stable grating, which has stable wavelength and high output power. A control system based on advanced microprocessors, combined with high-precision ATC and ACC (APC) control circuits, has achieved high stability output of the laser while ensuring fast and intuitive operation of the light source. We can also provide corresponding communication interfaces and control software according to user requirements to achieve computer control. This light source adopts Turn Key pump laser protection function, which can effectively prevent customer misoperation. The power can be roughly adjusted (in increments of 50mw) or finely adjusted in increments of 0.1mW.

Product PN#	product name	Center wavelength	Output power	Fiber optic connector
COBRITE-980-B-1000-0	980nm 1W desktop light source	980nm	1W	FC/APC	Add Inquiry
COBRITE-980-B-420-0	980nm 420mW desktop light source	980nm	420mw	FC/APC	Add Inquiry
COBRITE-980-B-420-1	980nm 420mW desktop light source (with isolator)	980nm	420mw	FC/APC	Add Inquiry
COBRITE-980-B-600-0	980nm 600mW desktop light source	980nm	600mw	FC/APC	Add Inquiry
COBRITE-980-B-600-1	980nm 600mW desktop light source (with isolator)	980nm	600mw	FC/APC	Add Inquiry
COBRITE-980-B-800-0	980nm 800mW desktop light source	980nm	800mw	FC/APC	Add Inquiry
COBRITE-980-B-800-1	980nm 800mW desktop light source (with isolator)	980nm	800mw	FC/APC	Add Inquiry
COBRITE-980-M-420-0	980nm 420mW modular light source	980nm	420mw	FC/APC	Add Inquiry
COBRITE-980-M-420-1	980nm 420mW modular light source (with isolator)	980nm	420mw	FC/APC	Add Inquiry

808nm high-power desktop single-mode pump light source 200mW

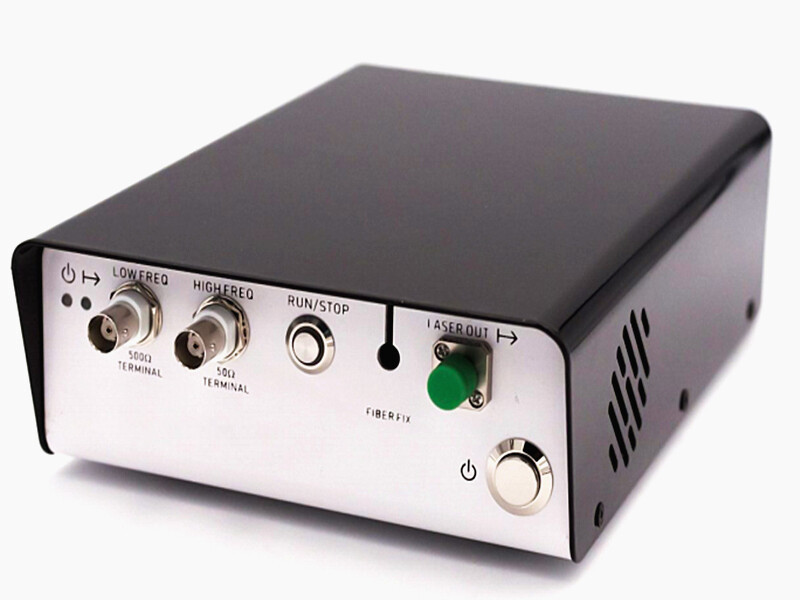

Xiaoxiao Photon's modular laser control is based on an advanced microprocessor control system, combined with high-precision ATC and ACC (APC) control circuits to achieve high stability output of the laser, while ensuring fast and intuitive control of the light source. We can also provide corresponding communication interfaces and control software according to user requirements to achieve computer control. This light source adopts a one click restore function (Run/Stop button), which can effectively help customers return to their previous working state.

Product PN#	product name	Center wavelength	Output power	Fiber optic connector	Other parameters
LDC-250-M-808	808nm high-power desktop single-mode pump light source 200mW	808nm	200mW	FC/APC		Add Inquiry

910/915nm high-power desktop single-mode pump light source 100mW

Product PN#	product name	Center wavelength	Output power	Fiber optic connector	Other parameters
LDC-250-M-915-FBG	915nm high-power desktop single-mode pumped FBG stable wavelength light source	915nm	100mW	FC/APC		Add Inquiry
LDC-250-M-910-FBG	910nm high-power desktop single-mode pumped FBG stable wavelength light source	910nm	100mW	FC/APC		Add Inquiry

1480nm high-power desktop single-mode pump light source 500/600mW

The 1480nm high stability single-mode pump light source of Xiaoxiao Photon adopts a single-mode semiconductor laser with FBG wavelength stable grating, which has stable wavelength and high output power. A control system based on advanced microprocessors, combined with high-precision ATC and ACC (APC) control circuits, has achieved high stability output of the laser while ensuring fast and intuitive operation of the light source. We can also provide corresponding communication interfaces and control software according to user requirements to achieve computer control. This light source adopts Turn Key pump laser protection function, which can effectively prevent customer misoperation. The power can be roughly adjusted (in increments of 50mw) or finely adjusted in increments of 0.1mW.

Product PN#	product name	Center wavelength	Output power	Fiber optic connector	Other parameters
LP-PUMP-1480-B-600	1480nm high-power desktop single-mode pump light source 600mW	1480nm	600mW	FC/APC		Add Inquiry
LP-PUMP-1480-B-500	1480nm high-power desktop single-mode pump light source 500mW	1480nm	500mW	FC/APC		Add Inquiry
