Near-IR display card

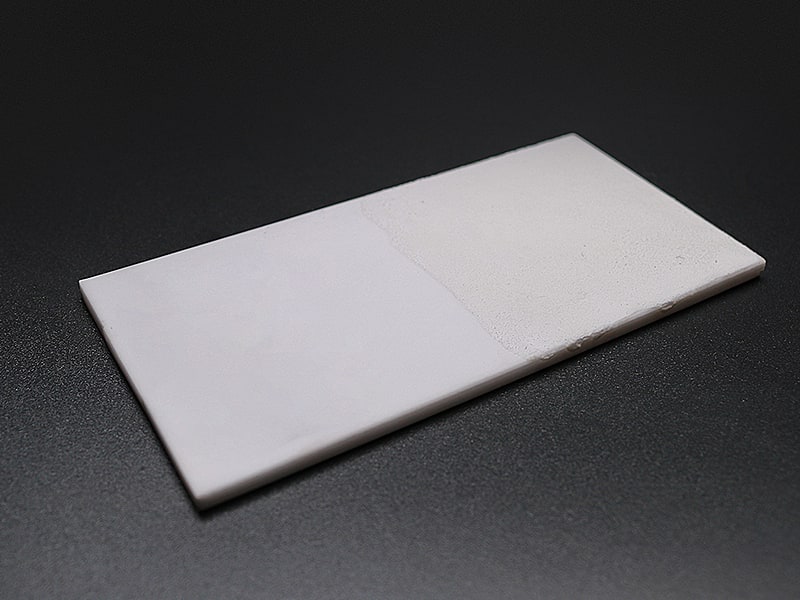

VIR-MIR-2000 mid infrared high-efficiency laser fluorescence sensing card 1900-2100nm

This laser fluorescence induction card is compact in shape and easy to carry. The laser induction card has a standard size of 50x100mm and can withstand a maximum power of 20W. It can display MIR laser beams, filling the gap of 2um laser induction cards on the market. It provides convenience, safety, reliability, and excellent performance for commonly used 2um lasers in terms of optical path construction and experimental testing. Obvious beams can be observed on the induction card, reducing the difficulty of finding the size and position of invisible mid infrared laser spots. The 2um high-efficiency laser induction card can sense lasers in the wavelength range of 1900-2100nm. The material of the induction card is wear-resistant and high-temperature resistant ceramic material, and the photosensitive area is coated on its front surface, which can easily locate the infrared light and its focus near the mid infrared 2um. Moreover, our photosensitive card does not require charging the photosensitive area, and even when detecting continuous light in the dark, the emission is stable and continuous, with a long service life.

Product PN#	product name		Other parameters
VIR-MIR-2000-Mini	VIR-MIR-2000 Mid-infrared high-efficiency laser fluorescence induction card			Add Inquiry

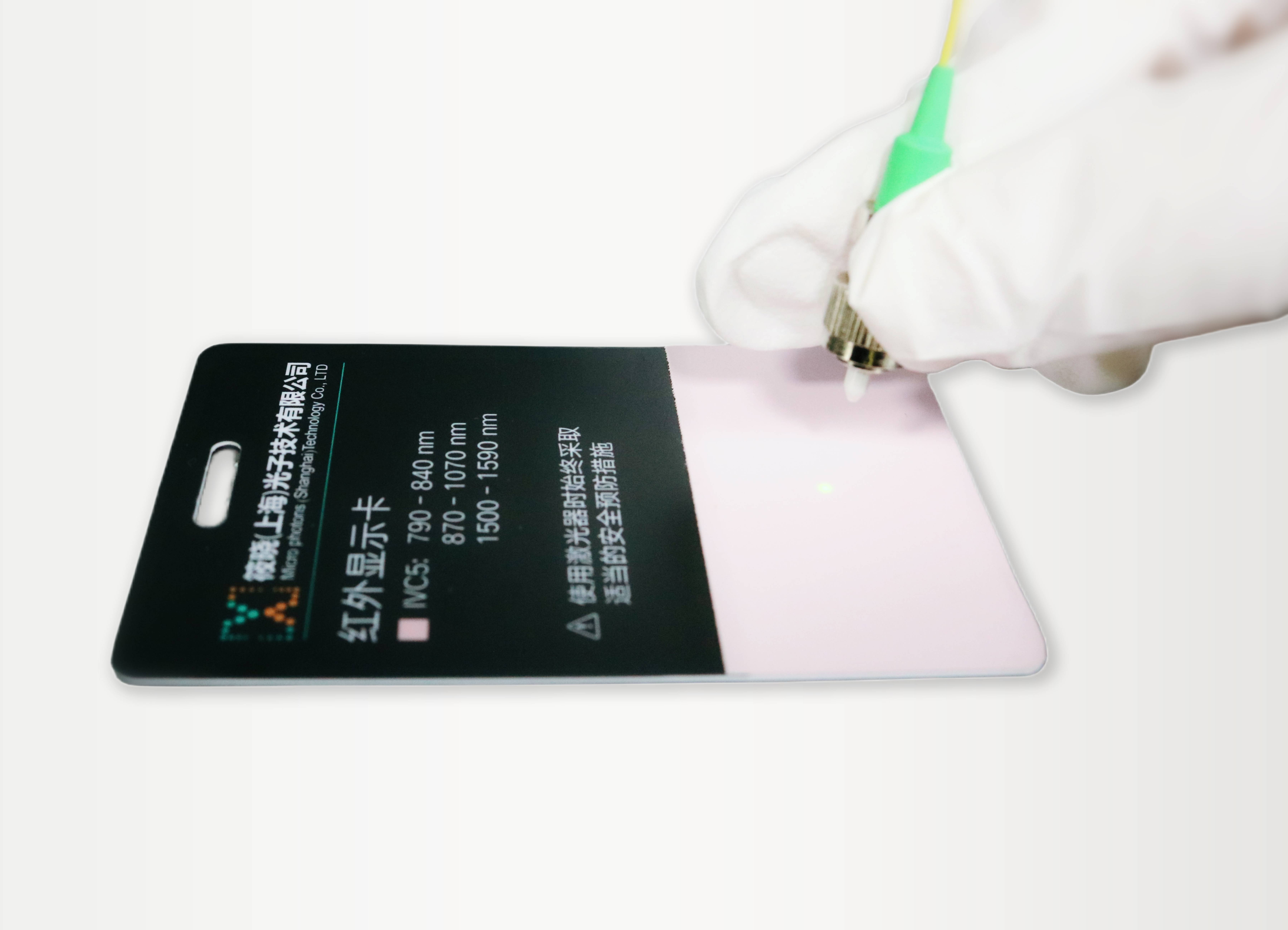

Laser Fluorescence Display Card

This laser phosphorescence display product can display UV, VISIBLE, and IR laser beams, which are safe, reliable, and have excellent performance. Even when invisible light hits it, the beam can still be seen, reducing the difficulty of presenting, outlining, and positioning invisible light beams. All wavelengths are available in three styles: credit card chips can be used on low-power light sources and can only be observed through reflection; The wafer packaging type (diameter 25mm) is used in situations where frequent positioning of components is required. By moving the base to adjust the optical path and path length, precise positioning can be achieved; The tube packaging has a lot of space.

Product PN#	product name	Spectral response range	Peak response wavelength	Sensing area	Card size	Other parameters
