440nm high-power large core diameter multimode fiber splitter (wavelength range 400-633nm)

The VIS-MFC-LMA series large core fiber coupler is a coupler developed and produced based on our company's single-mode fiber fusion taper machine IPCS-5000-LMA for visible light band splitting. It has excellent performance and is different from multimode fibers (50/125, 62.5/125) widely used in fiber communication systems. Large core fiber is usually used to transmit larger laser power and special working bands. Meanwhile, due to the characteristics of large fiber core diameter and high numerical aperture, the uniformity and stability of light splitting in large core fiber are affected by various factors (such as laser mode, laser injection method, etc.). Based on years of experience in high-energy laser transmission experiments and research on the reliability of military Yong devices, we are now able to provide fiber optic splitter products with core diameters ranging from 125um to 1500um, as well as large core fiber optic splitter products that operate at all wavelengths. These products have extremely high resistance to high-power laser impact and high environmental reliability. Since its establishment, the company has continuously invested in research and development efforts to optimize and improve the melting process and product packaging process of special large-diameter fiber optic splitters. In the process of product miniaturization and one-time melting of multi-core optical fibers

Product PN#	product name		Other parameters
VIS-FC-W0440-S12-CR5050-1-9-MM4A	440nm 1x2 High Power Large Core Multimode Fiber Coupler			Add Inquiry

780nm single window broadband fiber coupler 1 × 2/2 × 2

The 780nm fused tapered single window broadband fiber coupler (also known as a tapered splitter, FBT coupler) produced by Xiaoxiao Photon can couple the optical signals transmitted in the fiber in a special structural coupling area, redistribute the optical power, and can be monitored in real time as needed. It can be used to produce unequal splitters in various forms such as single window, double window, and triple window. The fused tapered splitter is widely used in fiber lasers, communication systems, and OCT systems.

Product PN#	product name		Other parameters
SBS-780-12/22-5050- 1-B-SA-54T	1×2/2×2 single-window broadband fiber optic coupler at 780nm			Add Inquiry

1x2/2x2 polarization maintaining fiber coupler 488/532/633nm

RGB-PMFBC-W0488 RGB series polarization maintaining fiber coupler is a coupler developed and produced based on our polarization maintaining fiber melting cone machine IPCS-5000-P for visible light band splitting. It has excellent performance and can cover the entire band (460-2200nm). The polarization maintaining coupler is made of panda type Fujikura polarization maintaining fiber, so they can maintain a high polarization extinction ratio (PER) when light is emitted along the slow axis of the fiber. The default alignment method for Xiaoxiao Photon's optical polarization maintaining components is slow axis alignment 1. Our polarization maintaining coupler has a high extinction ratio and can operate over a wide temperature range of -40 ° C to 85 ° C. Definition of Slow Axis

Product PN#	product name
RGB-PMFBC-W0488-S1-CR5050-1-9-PA-70T	50:50 488nm 1x2 Polarization-Maintaining Fiber Coupler	Add Inquiry
RGB-PMFBC-W0488-S2-CR5050-1-9-PA-35T	50:50 488nm 2x2 Polarization-Maintaining Fiber Coupler	Add Inquiry
RGB-PMFBC-W0488-S1-CR2575-1-9-PA-M	25:75 488nm 1x2 Polarization-Maintaining Fiber Coupler	Add Inquiry
RGB-PMFBC-W0488-S2-CR2575-1-9-PA-M	25:75 488nm 2x2 Polarization-Maintaining Fiber Coupler	Add Inquiry

1310/1550nm 1X3 3X3 single-mode fiber coupler

The NIR-FBC-W1216 NIR series single-mode fiber coupler is a coupler developed and produced based on our company's single-mode fiber fusion taper machine IPCS-5000-SMT for near-infrared band splitting. It has excellent performance and can cover the entire communication band (1260-1620nm). At the same time, we can provide customers with more cost-effective narrowband couplers with center wavelengths of 1310nm, 1392 nm, 1480nm, 1512nm, 1550nm, 1650nm, and 1742nm. The bandwidth of the narrowband coupler is ± 20 nm. Our coupler has a Max power of 1W when connected or bare fiber, and adopts a one-time fusion taper process. High reliability, small size, convenient for fiber optic sensing applications.

Product PN#	product name
NIR-FBC-W1550-S13-CR111-1-9-SA	1550nm 1X3 Single Mode Fiber Coupler	Add Inquiry
NIR-FBC-W1550-S33-CR111-1-9-SA	1550nm 3X3 Single Mode Fiber Coupler	Add Inquiry
NIR-FBC-W1310-S13-CR111-1-9-SA	1310nm 1X3 Single Mode Fiber Coupler	Add Inquiry
NIR-FBC-W1310-S33-CR111-1-9-SA	1310nm 3X3 Single Mode Fiber Coupler	Add Inquiry

Polarization maintaining fiber coupler module 1310nm/1550nm

Xiaoxiao Photon's low frequency local coupler has inherent performance advantages because the waveguide core does not deform or gradually become thinner. These devices have low loss and backward reflection. Moreover, the shorter interaction length (1-2 millimeters) allows for the encapsulation of small devices. The interface basically disappears in optical contact between the same silicon dioxide surfaces. No intermediate material will change its refractive index or thickness with age or environmental influences. The optical performance of the coupler seems to be that the fiber is melted and very stable under temperature changes. Polish the fibers on the side of the glass substrate to remove the cladding material on one side of the core without distorting the core area. For PM fibers, there is only one stress component left. Make optical contact between two polished optical fibers with their polarization axes aligned, and achieve coupling between the fiber cores through the evanescent wave interaction. The precise loading of the substrate ensures that the fibers maintain low stress contact over a wide temperature range.

Product PN#	product name		Other parameters
MPC-4-14-A-I-E-M-1-3	1550nm 1X4 Polarization Maintaining Fiber Coupler Module			Add Inquiry
MPC-7-14-A-I-E-M-1-3	1310nm 1X4 Polarization Maintaining Fiber Coupler Module			Add Inquiry

1 × 4 (2 × 4) or 1 × 8 (2 × 8) polarization maintaining fiber coupler module 780nm/1064/1310/1550nm

Xiaoxiao Photon provides 780nm/1064/1310/1550nm 1 × 4 (2 × 4)&1 × 8 (2 × 8) polarization maintaining fiber coupler modules, which adopt the form of multiple tapering of one polarization maintaining fiber, effectively reducing the insertion loss of our module. Currently, the typical wavelengths that can be supported are 633nm, 780nm/795nm/830nm/980nm/1064nm/1310nm/1550nm. Our module generally defaults to slow axis alignment coupling output and supports full temperature operation.

Product PN#	product name		Other parameters
MPC-8-14-A-H-E-M-1-3	1064nm 1X4 Polarization-Maintaining Fiber Coupler Module 2W			Add Inquiry

High power full band single-mode fiber coupler (operating power 10w, wavelength 1260-1620nm)

Product PN#	product name		Other parameters
NIR-HPFBC-W1216-S2-CR1090-1-9-SA-M	10:90 2x2 full-band high-power single-mode Fiber Coupler			Add Inquiry
NIR-HPFBC-W1216-S1-CR1090-1-9-SA-M	10:90 1x2 full-band high-power single-mode Fiber Coupler			Add Inquiry

Full band single-mode fiber coupler (840-940nm)

The VISW-FBC-W8492 VISW series single-mode fiber coupler is a coupler developed and produced based on our company's single-mode fiber fusion taper machine IPCS-5000-SMT for white light band splitting. It has excellent performance and can cover the entire white light band (840-9220nm). At the same time, we can provide customers with more cost-effective narrowband couplers with center wavelengths of 840nm (OCT application field), 880nm, and 915nm (LiDAR application field) and a bandwidth of ± 20 nm. Our coupler has a maximum power of 500 mW with connectors or bare fibers. We have multiple coupling ratios of 50:50, 75:25, 90:10, or 99:1 to provide to customers. Our 2x2 couplers are based on the fused taper process, so they work bidirectionally and any port can be used as an input.

Product PN#	product name
VISW-FBC-W850-S1-CR0199-1-9-SA	01:99 1x2 850nm single mode Fiber Coupler	Add Inquiry
VIS-FBC-W880-S22-CR1090-1-9-SA	10:90 2x2 880nm single mode Fiber Coupler	Add Inquiry
VISW-FBC-W915-S2-CR0199-1-9-SA	01:99 2x2 915nm single mode Fiber Coupler	Add Inquiry
VIS-FBC-W880-S12-CR5050-1-9-SP	50:50 1x2 880nm single mode Fiber Coupler	Add Inquiry
VIS-FBC-W915-S1-CR5050-1-9-PA	50:50 1x2 915nm PM Fiber Coupler	Add Inquiry
VIS-FBC-W880-S22-CR5050-1-9-SA	50:50 2x2 880nm single mode Fiber Coupler	Add Inquiry
VIS-FBC-W850-S1-CR5050-1-9-SA	50:50 1x2 850nm single mode Fiber Coupler	Add Inquiry
VISW-FBC-W915-S2-CR5050-1-9-SA	50:50 2x2 915nm single mode Fiber Coupler	Add Inquiry

Single mode/polarization maintaining fiber coupler 405/470/488/532/633/650/830/840nm

Product PN#	product name
VIS-FC-W0633-S12-CR0199-1-9-PA	1:99 633nm 1x2 PM Fiber Optic Coupler	Add Inquiry
VIS-FC-W0650-S12-CR0199-1-9-SA	1:99 650nm 1x2 Single-mode Fiber Optic Coupler	Add Inquiry
VIS-FC-W0633-S12-CR1090-1-9-PA	10:99 633nm 1x2 PM Fiber Optic Coupler	Add Inquiry
VIS-FC-W0840-S12-CR1090-1-9-SA	10:90 840±15nm 1x2 single mode Fiber Coupler	Add Inquiry
VIS-FC-W0830-S22-CR2080-1-9-SA	20:80 830nm 2x2 single mode Fiber Coupler	Add Inquiry
VIS-FC-W0470-S12-CR5050-1-9-SA	50:50 470nm 1x2 SM Fiber Optic Coupler	Add Inquiry
VIS-FC-W0840-S12-CR5050-1-9-SA	50:50 840±15nm 1x2 single mode Fiber Coupler	Add Inquiry

Mid infrared single-mode fiber coupler

The NIR-FBC-W1922 MIR series single-mode fiber coupler is a coupler developed and produced based on our company's single-mode fiber fusion taper machine IPCS-5000-SMT for mid infrared band splitting. It has excellent performance and can cover the entire communication band (1900-2220nm). At the same time, we can provide customers with more cost-effective narrowband couplers with center wavelengths of 1950nm, 2004nm, 2050nm, and 2327nm, with a bandwidth of ± 20 nm. Our coupler has a maximum power of 500 mW with connectors or bare fibers, and we offer various coupling ratios of 50:50, 75:25, 90:10, or 99:1 to customers. Our 2x2 couplers are based on the fused taper process, so they work bidirectionally and any port can be used as an input.

Product PN#	product name
NIR-FBC-W2000-S12-CR1090-1-9-SA	10:90 2000nm 1X2 single mode fiber coupler	Add Inquiry
NIR-FBC-W2000-S12-CR0199-1-9-SA	01:99 2000nm 1x2 single mode Fiber Coupler	Add Inquiry
NIR-FBC-W2000-S22-CR0199-1-9-SA	01:99 2000nm 2x2 single mode Fiber Coupler	Add Inquiry
NIR-FBC-W2000-S12-CR5050-1-9-SA	50:50 2000nm 1x2 single mode Fiber Coupler	Add Inquiry
NIR-FBC-W2000-S22-CR5050-1-9-SA	50:50 2000nm 2x2 single mode Fiber Coupler	Add Inquiry
NIR-FBC-W2000-S12-CR2575-1-9-SA	25:75 2000nm 1x2 single mode Fiber Coupler	Add Inquiry
NIR-FBC-W2000-S22-CR2575-1-9-SA	25:75 2000nm 2x2 single mode Fiber Coupler	Add Inquiry

2um fiber coupler

The FC series fiber coupler is based on Agiltron's fusion double taper technology and compact packaging structure. It has good uniformity, low excess loss, and extremely low polarization sensitivity. This device is ideal for splitting or combining light with excellent performance over a wide wavelength range.

Product PN#	product name		Other parameters
FC-A-2-50-1-1-1-1-1	2um Fiber Optic Coupler 1x2			Add Inquiry
FC-A-2-50-2-1-1-1-1	2µm Fiber Coupler 2x2			Add Inquiry

980/1310/1550nm Mini Fiber Optic Coupler

Idealphotonics' The mini 1x2 (2x2) single window broadband fiber coupler provides precise optical signal splitting ratio on broadband with high performance and reliability in small or sub small packages. These couplers have excellent uniformity, low loss, and extremely low polarization sensitivity, providing various splitting ratios, wavelength ranges, fiber types, and connector options. All devices are capable of handling high optical power up to 4W and tested according to industry standard procedures. Ensure reliability through rigorous testing to fully meet the requirements of Telcordia GR-1221. We can provide customized designs to meet specialized functional applications. We also offer full environmental condition testing options. This is a special choice for fiber optic systems in aerospace applications

Product PN#	product name		Other parameters
SMMSC-1-3-50-1-1-7	1550nm Single Mode Standard Fiber Coupler Mini			Add Inquiry
SMMWSC-1-3-50-1-1-7	1550nm Single Mode Broadband Single Window Coupler Mini			Add Inquiry

1X5 single-mode fiber coupler module 1310/1392nm

Xiaoxiao Photon proposes that the 1310nm/1392nm single-mode fiber coupler module adopts the form of multiple tapering of a single-mode fiber, effectively reducing the insertion loss of our module,

Product PN#	product name		Other parameters
MSC-1310-15-FA	1X5 Single-mode Fiber Coupler Module 1310nm			Add Inquiry
MSC-1392-15-FA	1X5 Single-mode Fiber Coupler Module 1392nm			Add Inquiry

633nm 2x3 polarization maintaining coupler module (customized product)

Xiaoxiao Shanghai Photon Customized Products

Product PN#	product name		Other parameters
VIS-FC-W0633-S23-CR1090-1-9-PA	633nm 2x3 PM Coupler Module (Customized Product)			Add Inquiry

Multi Mode fused tapered multimode coupler (1200-1600nm)

The NIR-MFC-LMA series large core fiber coupler is a coupler developed and produced based on our company's fiber fusion taper machine IPCS-5000-LMA for visible light band splitting. It has excellent performance and is different from multimode fibers (50/125, 62.5/125) widely used in fiber communication systems. Large core fibers are usually used to transmit large laser power and special working bands. Meanwhile, due to the characteristics of large fiber core diameter and high numerical aperture, the uniformity and stability of light splitting in large core fiber are affected by various factors (such as laser mode, laser injection method, etc.). Based on years of experience in high-energy laser transmission experiments and research on the reliability of military Yong devices, we are now able to provide fiber optic splitter products with core diameters ranging from 125um to 1500um, as well as large core fiber optic splitter products that operate at all wavelengths. These products have extremely high resistance to high-power laser impact and high environmental reliability. Since its establishment, the company has continuously invested in research and development efforts to optimize and improve the melting process and product packaging process of special large-diameter fiber optic splitters. In the process of product miniaturization and one-time fusion molding of multi-core optical fibers

Product PN#	product name		Other parameters
NIR-FBC-W1310-S12-CR5050-1-9-MM5A	1310nm 50/125um multimode fiber coupler			Add Inquiry
NIR-FC-W1550-S12-CR5050-1-9-MM6FA	1550nm 62.5/125um multimode fiber coupler			Add Inquiry

780nm 1X2 polarization maintaining fiber coupler

The 780nm fiber coupler produced by Xiaoxiao Photon can couple the optical signal transmitted in the fiber in a special structural coupling area, redistribute the optical power, and monitor it in real time as needed. Melting cone splitter is widely used in fiber lasers, communication systems, and OCT systems.

Product PN#	product name		Other parameters
NIR-FBC-W780-S12-CR7525-1-9-PA	780nm 1X2 Polarization Maintaining Fiber Coupler			Add Inquiry

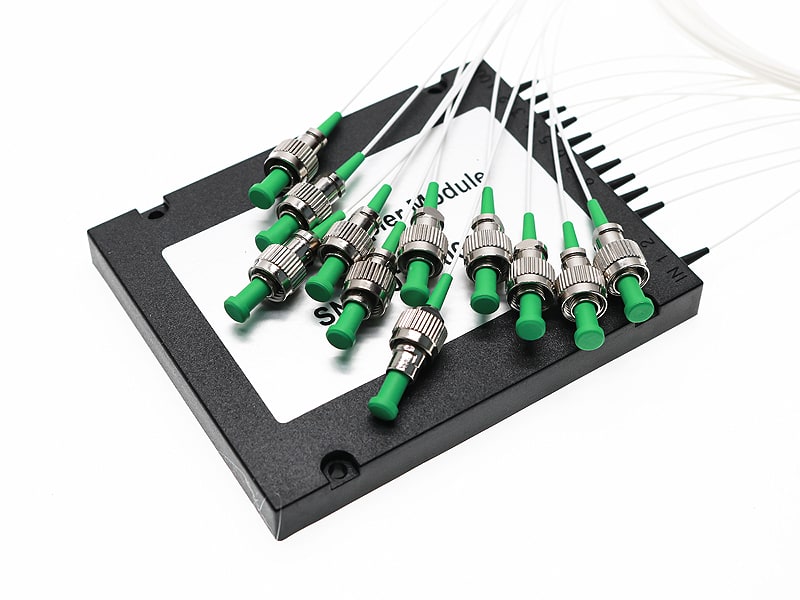

1550nm 1X10 single-mode fiber coupler module

Xiaoxiao Photon's 1550nm single-mode fiber coupler module adopts the form of multiple tapering of a single-mode fiber, effectively reducing the insertion loss of our module

Product PN#	product name		Other parameters
MSC-1550-110-FA	1550nm 1X10 Single- Mode Fiber Coupler Module			Add Inquiry

Polarization maintaining fiber combiner/splitter 532nm/1064nm/1310nm/1550nm

Xiaoxiao Photon Fusion Fiber Polarization Beam Combiner/Divider is used to couple two orthogonal polarized light beams into one fiber, or separate an input light beam into two orthogonal linearly polarized light beams for output. These devices are fully operated through fiber optics; Polarization states are combined or separated through fused fiber optic nodes. Compared with polarization beam combiners based on calcite prisms, this all fiber structure can achieve higher transmission rates and withstand higher power. Due to the fact that the polarization maintaining fiber in the molten fiber polarization beam combiner does not serve as a polarizer, the input light must be linearly polarized and aligned with the fast and/or slow axes of the fiber. These devices are highly suitable for coupling the light from two pump lasers into a single fiber to enhance the input light of erbium-doped or Raman fiber amplifiers.

Product PN#	product name		Other parameters
PBS-532-9-1-PA	532nm Polarization Maintaining Beam Splitter			Add Inquiry
PBC-06-2-L-2-1-A-S-C	1064nm Polarization Maintaining Fiber Splitter			Add Inquiry

840 ± 123nm ultra wideband single-mode fiber coupler (OCT field)

Product PN#	product name		Other parameters
FOC-840-260-SA-OCT	840±123nm Ultra-Wideband Single-Mode Fiber Coupler (OCT Field)			Add Inquiry

1x2/2x2 polarization maintaining fiber coupler (400-2000nm)

These 2x2 polarization maintaining (PM) fiber couplers are designed for 460-2200 nm, with selectable coupling ratios of 50:50, 75:25, 90:10, or 99:1. The 2x2 couplers are bidirectional and can be used for separating and mixing signals (see 2x2 coupling example label). Polarization maintaining couplers are made using panda shaped polarization maintaining fibers, so they can maintain a high polarization extinction ratio (PER) when light is emitted along the slow axis of the fiber. As shown in the figure on the right, the stress rod is parallel to the fiber core and applies stress, generating birefringence in the fiber core to achieve polarization maintenance. Typical applications of polarization maintaining couplers include optical sensors, optical amplifiers, and fiber optic gyroscopes. The default alignment method for Xiaoxiao Photon's optical polarization maintaining components is slow axis alignment. Xiaoxiao Photon's polarization maintaining coupler has a high extinction ratio and can operate over a wide temperature range of -40 ° C to 85 ° C. Note that PER will vary with temperature; For details, please refer to the temperature cycling test section in the polarization extinction ratio measurement label. They have Max with connectors or bare fibers The power is 1 W, and during welding it is 5 W (please refer to the damage threshold label for details). These couplers have undergone extensive testing and PER validation

Product PN#	product name
NIR-PMFBC-W1064-S12-CR1090-1-9-PA	10：90 1x2 1064nm Polarization Maintaining Fiber Coupler FC/APC	Add Inquiry
NIR-PMFBC-W1064-S22-CR1090-1-9-PA	10：90 2x2 1064nm Polarization Maintaining Fiber Coupler FC/APC	Add Inquiry
NIR-PMFBC-W1064-S12-CR2575-1-9-PA	25:75 1x2 1064nm Polarization Maintaining Fiber Coupler FC/APC	Add Inquiry
NIR-PMFBC-W1064-S22-CR2575-1-9-PA	25:75 2x2 1064nm Polarization Maintaining Fiber Coupler FC/APC	Add Inquiry
NIR-PMFBC-W1064-S12-CR5050-1-9-PA	50:50 1x2 1064nm Polarization Maintaining Fiber Coupler FC/APC	Add Inquiry
NIR-PMFBC-W1064-S22-CR5050-1-9-PA	50:50 2x2 1064nm Polarization Maintaining Fiber Coupler FC/APC	Add Inquiry
NIR-FBC-W1550-S22-CR0595-1-9-PA	05:95 2x2 1550nm Polarization-mode Fiber Coupler	Add Inquiry
NIR-FBC-W1550-S12-CR1090-1-9-PA	10:90 1X2 1550nm Polarization-mode fiber coupler	Add Inquiry
NIR-FBC-W1550-S22-CR1090-1-9-PA	10:90 2x2 1550nm Polarization-mode Fiber Coupler	Add Inquiry
NIR-PMFBC-W1310-S2-CR5050-1-9-PN	50:50 2x2 1310nm Polarization-mode Fiber Coupler No connector	Add Inquiry

Full band single-mode fiber coupler (module) (applicable wavelength range 1260-1620nm)

The NIR-FBC-W1216 NIR series single-mode fiber coupler is a coupler developed and produced based on our company's single-mode fiber fusion taper machine IPCS-5000-SMT for near-infrared band splitting. It has excellent performance and can cover the entire communication band (1260-1620nm). At the same time, we can provide customers with more cost-effective narrowband couplers with center wavelengths of 1310nm, 1392 nm, 1480nm, 1512nm, 1550nm, 1650nm, and 1742nm. The bandwidth of the narrowband coupler is ± 20 nm, and our coupler has Max with connectors or bare fibers We offer various coupling ratios of 50:50, 75:25, 90:10, or 99:1 couplers to customers with a power of 500 mW. Our 2x2 couplers are based on the fused taper process, so they work bidirectionally and any port can be used as an input.

Product PN#	product name
NIR-FBC-W1550-S1-001999-1-9-SA	01:99 1x2 Full Band Single Mode Fiber Coupler	Add Inquiry
NIR-FBC-W1392-S22-CR5050-1-9-SA	50:50 2x2 single mode Fiber Coupler 1392nm NIR-FBC-W1392-S22-CR5050-1-9-SA	Add Inquiry
NIR-FBC-W1315-S14-CR25252525-2-9-SA	25:25:25:25 1X4 Full Band Fused Taper Single Mode Fiber Coupler Module 1310-1550nm	Add Inquiry
NIR-FBC-W1550-S22-CR0199-1-B-SA	1:99 2x2 Single Mode Fiber Coupler 1550nm	Add Inquiry
NIR-FBC-W1030-S2-CR5050-1-9-SA	50:50 2x2 single mode Fiber Coupler 1030nm	Add Inquiry

1 × N coupler module

Xiaoxiao Photon's 1 × N coupler module has extremely low excess loss, good environmental and mechanical stability, and is commonly used in fields such as Cable TV systems, fiber optic sensors, and local area networks due to its superior performance.

Product PN#	product name	Type	Structure	Center wavelength	Other parameters

1 × 4-1 × 5 single mode tapered coupler

Xiaoxiao Photon's 1 × 4 single cone single-mode coupler has extremely low excess loss, customizable coupling ratio, and compact size. Due to its superior performance, it is often used in long-distance telecommunications, cable television systems, fiber optic sensors, and local area networks.

Product PN#	product name	Center wavelength	Working bandwidth	Coupling ratio	Insertion loss	Polarization related loss	Connector type	Other parameters
