Four Quadrant Position Sensing Detector

Silicon Si four quadrant detector with large photosensitive surface 400-1100nm (photosensitive surface diameter 10/16mm)

The device is an N-type silicon quadrant detector, and when the radiation flux of light to each quadrant of the device is equal, the output photocurrent of each quadrant is equal. When the target deviates, the change in radiation flux between quadrants causes changes in the output photocurrent of each quadrant, which can measure the orientation of the object and play a role in tracking and guidance.

Product PN#	product name	Photosensitive surface diameter	DC responsivity	Other parameters
SIQ1000	400-1100nm four quadrant Si photodetector (N-type silicon quadrant detector with a photosensitive surface diameter of 10mm and a DC responsivity of 0.3A/W)	10mm	0.3A/W		Add Inquiry
SIQ1600	400-1100nm four quadrant Si photodetector (N-type silicon quadrant detector with a photosensitive surface diameter of 16mm and a DC responsivity of 0.3A/W)	16mm	0.3A/W		Add Inquiry

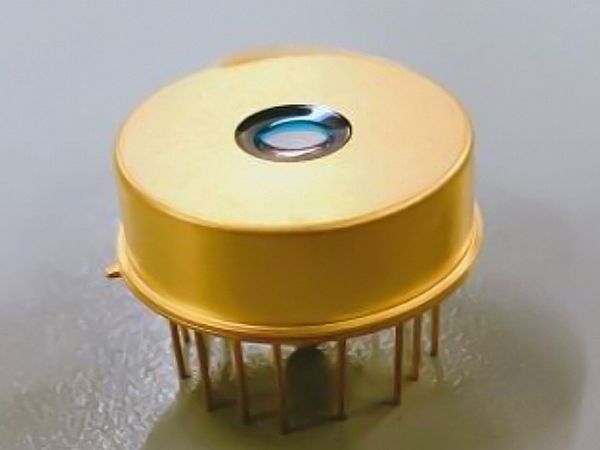

Indium gallium arsenide InGaAs four quadrant detection and receiving module 1550nm

GD4516YB is a high-sensitivity and large photosensitive element four quadrant photoelectric detection module, which adopts InGaAs four quadrant APD chip and low-noise transimpedance amplifier mixed integration.

Product PN#	product name	Working wavelength	responsivity	Other parameters
GD4516YB	1550nm indium gallium arsenide InGaAs high-sensitivity and large photosensitive element APD chip four quadrant avalanche detection and receiving module	1550nm	5 MV/W		Add Inquiry
GD4516YA	1550nm indium gallium arsenide InGaAs high sensitivity and high photosensitivity four quadrant PD chip detection and reception module	1550nm	500 KV/W		Add Inquiry
