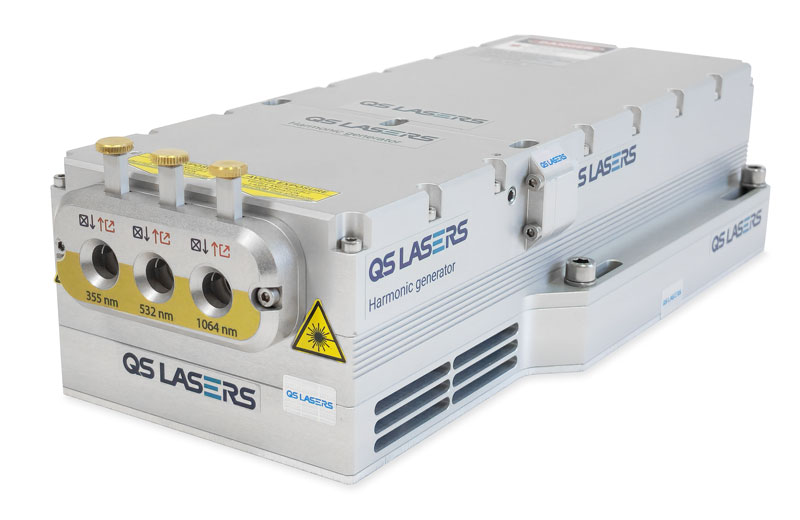

MPL2210 diode pumped picosecond passive Q-switched laser 266/355/532/1064nm

The MPL2210 series DPSS passive Q-switched picosecond laser provides high peak power of>7MW at a repetition rate of 100Hz. The short laser cavity is fixed on a thermally stable and controllable substrate, and the output parameter performance is extremely stable. Small footprint is a popular point for integration into OEM lasers. The pulse duration is less than 250-270ps, the high pulse energy exceeds 2mJ, and the variable repetition rate from 1Hz to 100Hz covers many applications, such as pollution monitoring, DNA analysis, supercontinuum generation, etc. Due to the short pulse duration and high pulse energy, the laser can provide a peak power of up to 7MW. It can also be converted to green (532 nm) and ultraviolet (355 nm, 266 nm).

Product PN#	product name	Center wavelength	Peak power	Other parameters
MPL2210	1064nm diode pumped picosecond passive Q-switched laser (100Hz 7MW pulse width 250-270ps 2mJ)	1064nm	7MW		Add Inquiry

MPL1510 diode pumped picosecond passive Q-switched laser 266/355/532/1064nm

The MPL1510 series DPSS passive Q-switched picosecond laser provides high peak power of>2MW at a repetition rate of 100Hz. The short laser cavity is fixed on a thermally stable and controllable substrate, and the output parameter performance is extremely stable. Small footprint is a popular point for integration into OEM lasers. The pulse duration is less than 500ps, the high pulse energy exceeds 1mJ, and the variable repetition rate from 1Hz to 100Hz covers many applications, such as pollution monitoring, DNA analysis, supercontinuum generation, etc. Due to the short pulse duration and high pulse energy, the laser can provide a peak power of up to 2MW. It can also be converted to green (532 nm) and ultraviolet (355 nm, 266 nm).

Product PN#	product name	Center wavelength	Pulse duration	Peak power	Other parameters
MPL1510	1064nm diode pumped picosecond passive Q-switched laser 100Hz 2MW pulse width 500ps 1mJ	1064nm	500ps	2MW		Add Inquiry
