Circulator

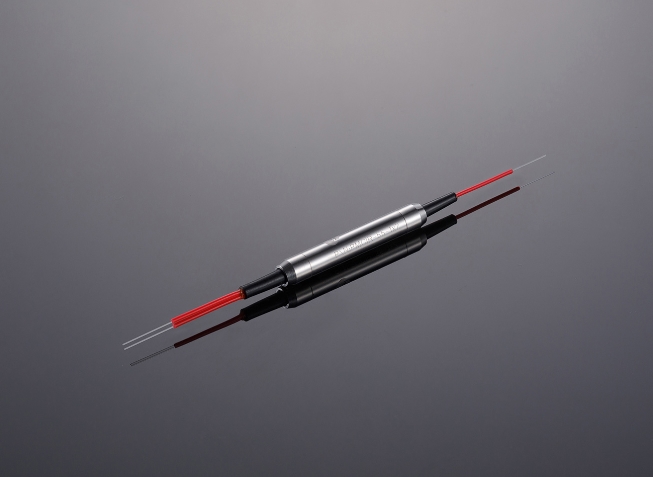

850nm high-power 3-port fiber ring resonator

The 850nm high-power polarization ring resonator has the characteristics of low insertion loss, high isolation, high power processing, high return loss, excellent environmental stability and reliability. It is an ideal choice for fiber lasers.

Product PN#	product name		Other parameters
HPCIR-85-2-L-1-C	850nm High Power 3-Port Optical Fiber Circulator			Add Inquiry

1064nm high-power 3-port fiber ring resonator

The 1064nm high-power polarization ring resonator has the characteristics of low insertion loss, high isolation, high power processing, high return loss, excellent environmental stability and reliability. It is an ideal choice for fiber lasers.

Product PN#	product name		Other parameters
HPCIR-06-10-N-L-1-2-P	1064nm high-power 3-port fiber optic circulator			Add Inquiry

1310nm/1550nm Mini Fiber Optic Ringer

Xiaoxiao Photon's mini fiber ring resonator is an ultra small structure fiber ring resonator carefully designed for applications with limited space. In addition to its smaller size, the folding design allows all port fibers to be on the same side, allowing for maximum Minimize the space occupied by optical fibers to the greatest extent possible. It is a compact, high-performance component with high isolation, low insertion loss, low PDL, high stability, and reliability. The fiber optic ring resonator sends incoming signals from port 1 to port 2, and from port 2 to port 3.

Product PN#	product name		Other parameters
IP-CIR-1-900-1550-SA	1550nm mini fiber optic circulator			Add Inquiry

1310/1550nm polarization maintaining three (four) port fiber ring resonator

Polarization maintaining (PM) fiber optic circulators are irreversible unidirectional three port devices that have wide applications in a large number of optical equipment and many occasions. Our polarization maintaining optical circulators have center wavelengths of 1064, 1310 (O-band), or 1550 nanometers (C-band). In addition, these polarization maintaining fiber circulators are available with or without connectors, FC/PC connectors, or FC/APC connectors. Optical circulators are three port devices, and light can only propagate in one direction. If the signal is input from port 1, it is output from port 2; And if the signal is input from port 2, it will be output from port 3, with very low output loss. When light is input from port 2, there is a significant loss when output from port 1. Similarly, when light is input from port 3, there is also a significant loss when output from ports 1 and 2. Optical circulators are irreversible optical devices. Due to its high isolation and low insertion loss, fiber optic circulators are widely used in advanced communication systems, such as add/drop multiplexers, bidirectional pumping systems, and dispersion compensation devices. High power fiber ring resonator is an improved product developed on this basis. Xiaoxiao Photon can customize a wide range of wavelengths and can withstand high power, including (850, 980, 1018, 1053, 1064, 1310, 155...)

Product PN#	product name
PM-CIR-W1550-S22-P01-1-9-PA	1550nm Polarization Maintaining 4-Port Fiber Circulator	Add Inquiry
PM-CIR-W1310-S22-P01-1-9-PA	1310nm Polarization Maintaining 4-Port Fiber Circulator	Add Inquiry
PM-CIR-W1310-S12-P01-1-9-PA	1310nm Polarization Maintaining 3-Port Fiber Circulator	Add Inquiry
PM-CIR-W1550-S12-P01-1-9-PA	1550nm Polarization Maintaining 3-Port Fiber Circulator	Add Inquiry

Near infrared broadband fiber ring resonator (1250-1370nm)

Optical circulators are three port devices, and light can only propagate in one direction. If the signal is input from port 1, it is output from port 2; And if the signal is input from port 2, it will be output from port 3, with very low output loss. When light is input from port 2, there is a significant loss when output from port 1. Similarly, when light is input from port 3, there is also a significant loss when output from ports 1 and 2. Optical circulators are irreversible optical devices. Xiaoxiao photon ring resonator has high isolation and low insertion loss, and can be widely used in advanced communication systems

Product PN#	product name		Other parameters
SM-CIR-W2537-S12-P1-1-9-SA	Fiber Polarization Insensitive Circulator			Add Inquiry

2000nm three port polarization insensitive ring resonator

A 2000nm three port polarization insensitive optical polarizer allows light to propagate only in one direction. If the signal is input from port 1, it is output from port 2; And if the signal is input from port 2, it will be output from port 3, with very low output loss. When light is input from port 2, there is a significant loss when output from port 1. Similarly, when light is input from port 3, there is also a significant loss when output from ports 1 and 2. Optical circulators are irreversible optical devices.

Product PN#	product name		Other parameters
HPCIR-20-1-01-NNN-BBB-1-03	2000nm 1x2 Three-Port Polarization-Insensitive Circulator (Max Optical Power 1W)			Add Inquiry

Polarization maintaining circulators 1310-1550nm 1 × 2 2 × 2

Xiaoxiao Photon's polarization maintaining ring resonator has high isolation, high extinction ratio, low insertion loss, and good environmental stability. Due to its superior performance, it is often used in fields such as polarization mode dispersion compensators, EDFA and Raman amplifiers, coherent communication systems, and fiber optic sensors.

Product PN#	product name	Type	Structure	Center wavelength	Operating wavelength range	Connector	Other parameters
