1600-1700nm SLD laser diode

1600nm SLD laser 5mW (Denselight)

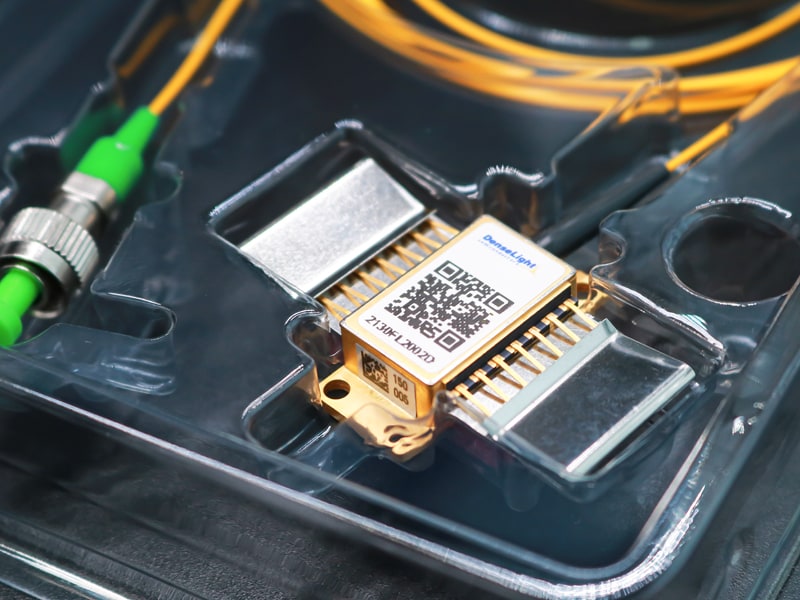

The DenseLight DL-CS6055A series is a broadband SLD that operates in an inherent superluminescent mode This superluminescent characteristic can generate a wider spectral bandwidth under higher current driving, while other traditional ASE based SLEDs will produce a narrower spectral bandwidth under higher current driving. Its low coherence reduces Rayleigh backscattering noise. In addition, with high power and wide spectral width, it cancels out the noise of the light receiver, improves spatial resolution (OCT) and measurement sensitivity (sensor). This 1600nm SLED is a 14 pin butterfly package. It meets the requirements of Bellcore file GR-468-CORE.

Product PN#	product name	Center wavelength	Output power	Other parameters
DL-CS6055A	1600nm SLD laser 5mW (Denselight)	1600nm	5mW		Add Inquiry

1690nm SLD laser 10mW (Denselight)

The DenseLight DL-CS69M5A series is a broadband SLD that operates in an inherent superluminescent mode This superluminescent characteristic can generate a wider spectral bandwidth under higher current driving, while other traditional ASE based SLEDs will produce a narrower spectral bandwidth under higher current driving. Its low coherence reduces Rayleigh backscattering noise. In addition, with high power and wide spectral width, it cancels out the noise of the light receiver, improves spatial resolution (OCT) and measurement sensitivity (sensor). This 1690nm LED comes in a 14 pin butterfly package. It meets the requirements of Bellcore file GR-468-CORE.

Product PN#	product name	Center wavelength	Output power	Other parameters
DL-CS69M5A	1690nm SLD laser 10mW (Denselight)	1690nm	10mW		Add Inquiry

1650nm SLD polarization maintaining laser diode 10mW (Anristsu)

AS6B118GM50M is a 1.65nm SLD (Super Light Emitting Diode) module used as a incoherent light source for various optical measurements. This laser emits incoherent light with a wide spectrum and high output power from PMF (polarization maintaining fiber).

Product PN#	product name	Center wavelength	Output power	Packaging type	Other parameters
AS6B118GM50M	1650nm SLD polarization maintaining laser diode 10mW (Anristsu)	1650nm	10mW	FC/PC		Add Inquiry
