Thulium fiber ASE source

S-band ASE source desktop single-mode ASE-FL7210 (1460-1490nm power greater than+7dBm)

ASE FL7210 is a high brightness ASE light source that utilizes Tm doped fluoride fiber for amplified spontaneous emission. The S-band achieves high power density, excellent output stability, and spectral stability. This is the best light source for characterizing S-band optical components. This product also offers OEM module format. S-band ASE source (desktop) operating wavelength: 1460nm~1490nm

Product PN#	product name	Working wavelength	Output power	Other parameters

2000nm band ASE broadband light source 10/20/40mW (non adjustable)

The 2000nm band ASE Broadband Light Source uses short wavelength laser pumped thulium doped fiber, with a single-mode fiber output power of up to 40mW and spectral coverage of 1850-2000nm. It is suitable for applications such as laser biology and spectral measurement.

Product PN#	product name	Spectral Range	Output Power
ASE-2000-40-SM-M	2000nm band ASE broadband light source modular 40mW (non adjustable)	1850~2000nm	40mW	Add Inquiry
ASE-2000-10-SM-M	2000nm band ASE broadband light source modular 10mW (non adjustable)	1850~2000nm	10mW	Add Inquiry
ASE-2000-20-SM-M	2000nm band ASE broadband light source modular 20mW (non adjustable)	1850~2000nm	20mW	Add Inquiry
ASE-2000-40-SM-B	2000nm band ASE broadband light source desktop 40mW (non adjustable)	1850~2000nm	40mW	Add Inquiry
ASE-2000-10-SM-B	2000nm band ASE broadband light source desktop 10mW (non adjustable)	1850~2000nm	10mW	Add Inquiry
ASE-2000-20-SM-B	2000nm band ASE broadband light source desktop 20mW (non adjustable)	1850~2000nm	20mW	Add Inquiry

2000nm high-power desktop mid infrared single-mode ASE light source 10/30mW

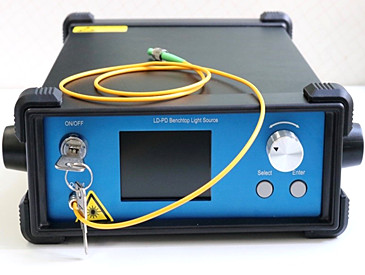

Xiaoxiao Photon's Ultra Wideth series 2000nm ASE light source is an amplified spontaneous emission (ASE) light source with a working wavelength around 1900 nm, providing one click operation and single-mode fiber output for testing and measurement applications. It is based on thulium doped fluoride fiber to maximize ASE, with a typical maximum optical output power of 10 mW. The integrated isolator minimizes back reflection into the light source to enhance output power stability. The nominal center wavelength of the emitted light is 1920 nm and it is non polarized. Measure a wide spectral width of 100 nm below the peak at 20 dB. This light source adopts Turn Key pump laser protection function, which can effectively prevent customer misoperation. The power can be roughly adjusted (in increments of 1mw) or finely adjusted in increments of 0.1mW. The 2000nm single-mode pump light source of LD-PD is a highly integrated desktop system light source with high-definition LCD display screen, continuously adjustable output power, and synchronous display of current and voltage, which is very suitable for experimental scientific research and production testing. In addition, the company can also provide modular packaging according to user requirements to facilitate system integration.

Product PN#	product name	Center wavelength	Spectral width	Output power	Other parameters
LP-FP-2000-B-30-80-SM	2000nm mid infrared desktop ASE light source 30mW	2000nm	80nm	30mW		Add Inquiry
LP-ASE-2000-B-10-30-SM	2000nm mid infrared desktop ASE light source 10mW	2000nm	30nm	10mW		Add Inquiry

2 μ m broadband light source (based on ASE)

Xiaoxiao Photon's OEBLS-100 is a broadband light source (CW) based on the principle of amplified spontaneous emission (ASE), which uses a laser to pump thulium doped fiber. There are different working modes in the range of 1800-2150nm. Mid infrared (MIR) broadband light sources with output power ranging from a few milliwatts to several hundred milliwatts can be used for testing mid infrared optical components, gas sensing, and biomedical applications.

Product PN#	product name	Center wavelength	Total power	Bandwidth (-10 dB)	Type
OEBLS-100-1850-80	1850nm broadband light source (based on ASE and Turn key)	1850nm	80mW	>80nm	Turn-key	Add Inquiry
OEBLS-100-1900-100	1900nm broadband light source (based on ASE and Turn key)	1900nm	100mW	>90nm	Turn-key	Add Inquiry
OEBLS-100-1950-80	1950nm broadband light source (based on ASE and Turn key)	1950nm	80mW	>90nm	Turn-key	Add Inquiry
OEBLS-100-2000-100	2000nm broadband light source (based on ASE and Turn key)	2000nm	100mW	>90nm	Turn-key	Add Inquiry
OEBLS-100-2070-100	2070nm broadband light source (based on ASE and Turn key)	2070nm	100mW	>60nm	Turn-key	Add Inquiry

S-band ASE source desktop single-mode ASE-FL7210 (1460-1490nm power greater than+7dBm)

Product PN#	product name	Working wavelength	Output power	Output fiber	Other parameters
B80010073	S-band ASE light source single-mode fiber desktop ASE-FL7210 (1460-1490nm power greater than+7dBm FC/PC)	1460 至 1490	≥+7	单模光纤 (*2)		Add Inquiry
ASE-FL7210	S-band desktop single-mode ASE light source ≥+7dBm	1460 至 1490nm	≥+7dBm	单模光纤		Add Inquiry
