1060-1080nm FP laser diode

1064nm wide area laser diode 6/8/12/15W

High-power wide-area laser diode is a semiconductor device specially designed to produce high-power laser output. It combines "wide area" design and high power characteristics, and is widely used in laser material processing, laser radar, optical communication, medical laser equipment, scientific research and other fields.

Product PN#	product name	Output power	averagewave length	band width	mesa width
BAH1064004CC015WXXXX	1064nm High Power Wide Area Laser Diode (15W)	15W	1064nm	4nm	250um	Add Inquiry
BAH1064004CC012WXXXX	1064nm high-power wide area laser diode (12W)	12W	1064nm	4nm	250um	Add Inquiry
BAE1064004CC008WXXXX	1064nm high-power wide area laser diode (8W)	8W	1064nm	4nm	130um	Add Inquiry
BAD1064004CC006WXXXX	1064nm high-power wide area laser diode (6W)	6W	1064nm	4nm	90um	Add Inquiry
BAH1064004CM015WXXXX	1064nm wide area laser (15W)	15W	1064nm	4nm	250um	Add Inquiry
BAH1064004CM012WXXXX	1064nm Wide Area Laser (12W)	12W	1064nm	4nm	250um	Add Inquiry

1060/1064nm fiber-coupled laser diode

Fiber-coupled laser is a kind of laser equipment that transmits laser beam through optical fiber, which is widely used in communication, medical treatment, industrial processing and other fields. Its core advantage is that it can efficiently couple the laser beam into the optical fiber, thus achieving accurate energy transmission and efficient energy output. Shinohara Guang Xiao's fiber-coupled diode not only has the characteristics of compact structure, easy integration and high stability, but also can reduce the optical loss in long-distance transmission, ensure the beam quality and meet high-demand application scenarios.

Product PN#	product name	Average wavelength	peakoutputpower (pulse)	output power	fiber type
SML1064003YY001PXXXX	1064nm fiber coupled laser diode (400mW)	1064nm	1000mW	400mW	HI-1060 光纤	Add Inquiry
SML1064003YY0D6PXXXX	1064nm fiber coupled laser diode (200mW)	1064nm	600mW	200mW	HI-1060 光纤	Add Inquiry
SML1060003YY001PXXXX	1060nm fiber coupled laser diode (400mW)	1060nm	1000mW	400mW	HI-1060 光纤	Add Inquiry

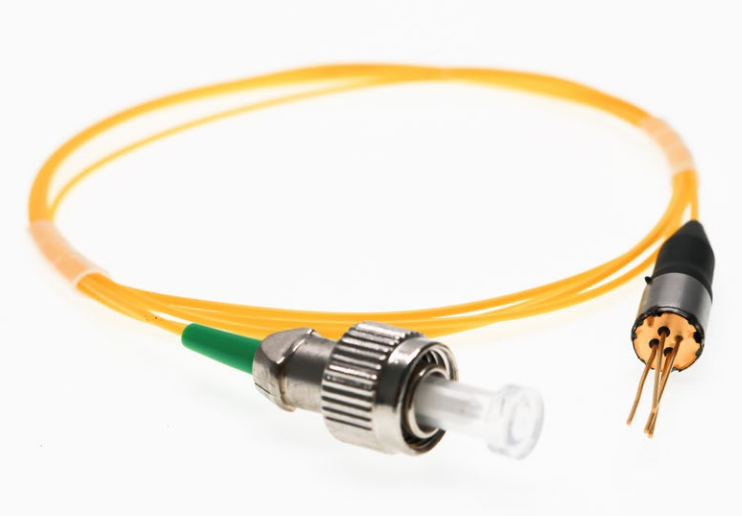

1064nm 20mW coaxial single-mode fiber-coupled laser

LP-1064SM-FA-C series coaxial single-mode fiber coupler laser is a low-cost single-mode fiber coupling laser introduced by LD-PD. It has the advantages of small package size and high output power. Our products are widely used in laser communication, printing and laser medical field.

Product PN#	product name	Central wavelength	spectralwidth	output power	optical fiber connector	Other parameters
LP-1064SM-FA-C	1064nm 20mW coaxial single-mode fiber coupled laser	1060±5nm	0.5-2nm	20mW	FC/APC		Add Inquiry
