200-3000nm Fiber Coupled Laser Diode

Integrated comb laser module 1550nm (output power 16dBm)

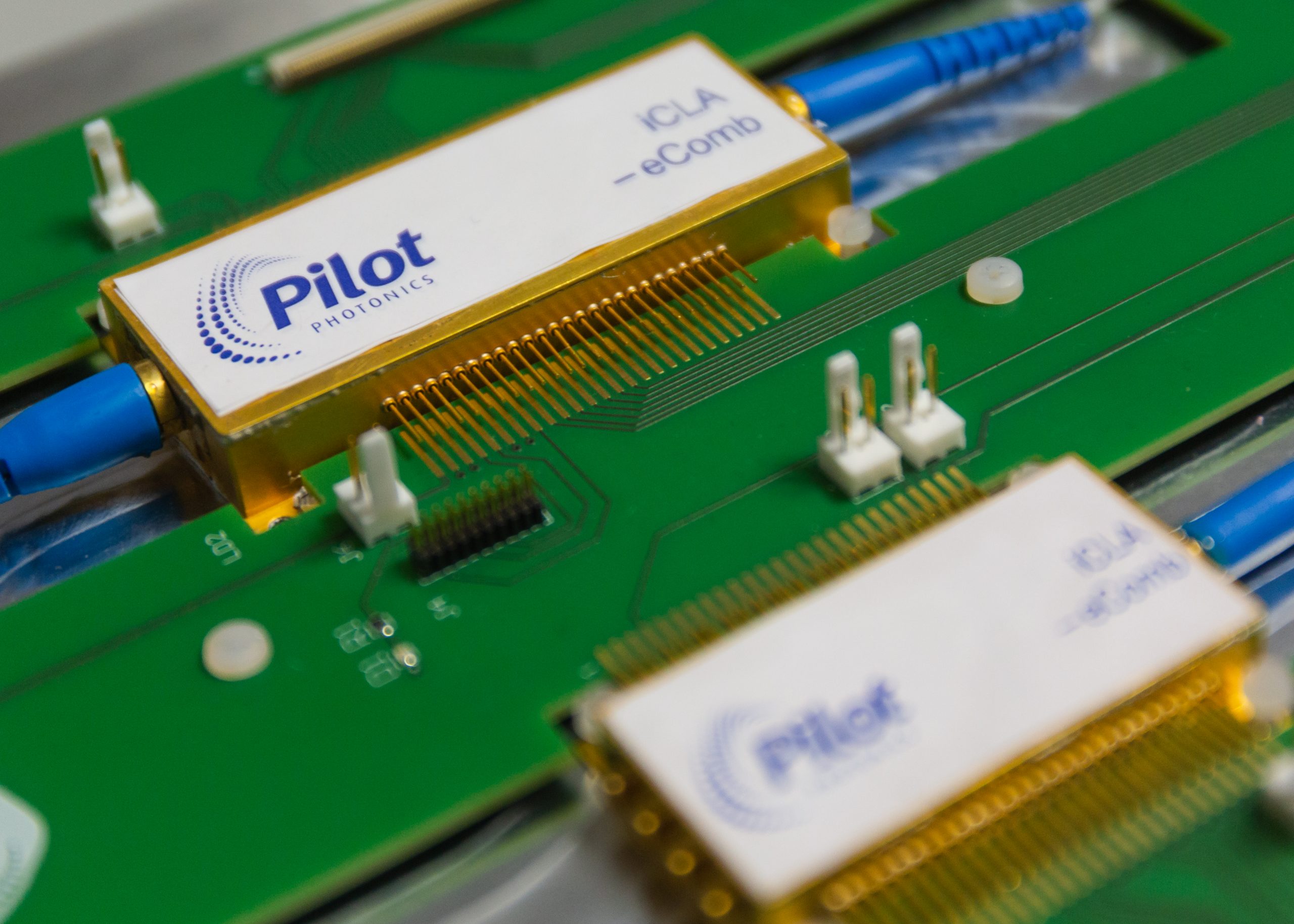

Pilot Photonics' iCLA integrates a single-chip integrated comb laser and demultiplexer, providing four or more coherent, matched outputs on separate fibers, replacing up to four integrated tunable laser components (iTLAs). It is designed to drive multiple 400G/800G coherent light engines on a single fiber from a single laser module. Provides the ability to adjust the separation of four output wavelengths, reducing the required DSP complexity while maintaining coherence and phase matching characteristics. The device provides all necessary current and temperature control on a software controlled evaluation platform. The RF signal for setting the spacing between comb tube channels can be provided internally or externally.

Product PN#	product name	Center wavelength	Output power	Line width	Other parameters
Pilot-iCLA	1550nm integrated comb laser module (output power 16dBm, linewidth 100 kHz)	1550nm	最大16dBm	< 100 kHz		Add Inquiry

Fiber coupled quantum dot comb shaped laser diode 1310nm 30mW

Comb laser is a light source whose spectrum is composed of equidistant lines, each line corresponding to a longitudinal cavity mode. The emitted spectrum also shares a singular frequency. The difference between comb lasers lies in their number of lines and their excellent individual time stability.

Product PN#	product name	Center wavelength	Output power	Fiber type	Other parameters
COMB-1310-80-PM-8	1310nm fiber coupled quantum dot comb shaped laser diode	1310nm	30mW	Panda PM1300		Add Inquiry

780/1550nm fiber coupled diode

Fiber coupled diodes have the characteristics of high coupling efficiency, stable laser output, compact design, and multiple wavelength selection, and are widely used in fields such as fiber optic communication, laser medicine, material processing, and sensors.

Product PN#	product name	Wavelength	Average Power	Bandwidth	Type
OEFLD-100-780-20-ST	780nm fiber coupled diode (standard type)	780nm	20mW	1nm	标准型	Add Inquiry
OEFLD-100-1550-20-ST	1550nm fiber coupled diode (standard type)	1550nm	20mW	1nm	标准型	Add Inquiry
OEFLD-100-780-20-WS	780nm fiber coupled diode (wavelength stable type)	780nm	20mW	1nm	波长稳定型	Add Inquiry
OEFLD-100-1550-20-WS	1550nm fiber coupled diode (wavelength stable type)	1550nm	20mW	1nm	波长稳定型	Add Inquiry
