He-Ne laser

632.8nm helium neon laser 0.5/1/1.6mW

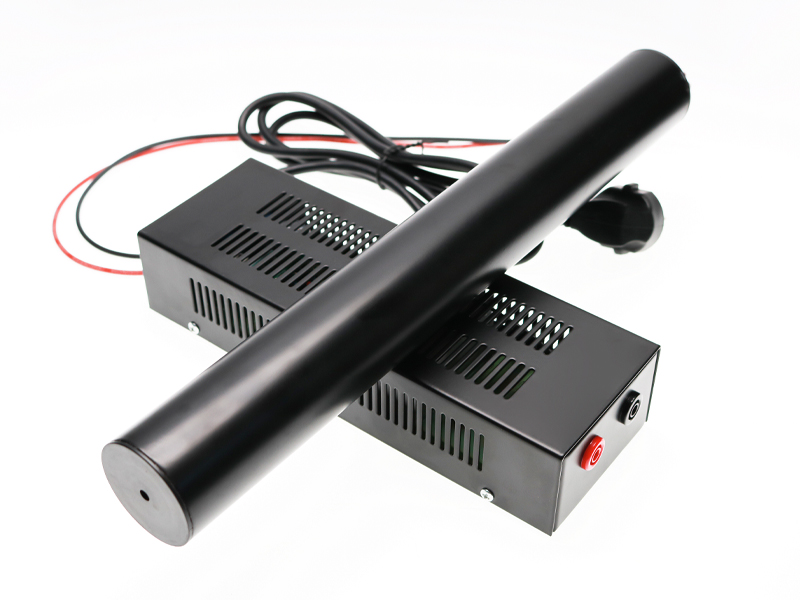

Xiaoxiao Photon's 1.6mW red (632.8 nm) cylindrical helium neon laser adopts a tubular design, making it easy to install in almost all optical systems. The laser of these lasers is linearly polarized light (200:1) or randomly polarized state. Linearly polarized light is vertically polarized relative to the cable at the back of the laser housing, with an external power supply and power cord attached. The laser of the B-type intracavity helium neon laser is separated from the power supply. By turning on the laser power switch, it will not affect the already adjusted optical path. The laser is covered with a surface sprayed alloy aluminum cylinder. Make the laser sturdy and aesthetically pleasing. The power supply adopts a switch power supply and a metal shell. The power shell is grounded, and the laser is connected to the power supply with a silicon high-voltage wire. Our HeNe laser is suitable for Chinese Mainland and is equipped with domestic mains sockets for plug in and use.

Product PN#	product name	Center wavelength	Output power
HENE012B-P	632.8nm helium neon laser 1.2mW	632.8nm	1.2mw	Add Inquiry
HENE016B-P	632.8nm helium neon laser	632.8nm	1.6mw	Add Inquiry
HENE016B	632.8nm helium neon laser	632.8nm	1.6mw	Add Inquiry
HENE010B	632.8nm helium neon laser	632.8nm	1mw	Add Inquiry
HENE005B	632.8nm helium neon laser	632.8nm	0.5mw	Add Inquiry

High power helium cadmium HE-CD gas laser (442nm 150mW)

The Plasma 150mW HCL series helium cadmium laser is a coherent emission source used in scientific research activities, photopolymerization, holographic optical component manufacturing, metrology, biochemical cell analyzers, multi-channel imaging, medical diagnosis and treatment. A laser consists of a laser head and a power supply. The optical bracket, on which the discharge tube is fixed, is sealed by a Brewster window and is the basis of laser head design.

Product PN#	product name	Center wavelength	Output power	Other parameters
HCL-100V(I)	442nm 150mw helium cadmium laser	442nm	150mw		Add Inquiry

Argon ion laser 457.9/488/514.5nm power 16/80/100/300mW

Argon ion laser is an inert gas ion laser, which is currently one of the continuously operating lasers with high output power in the visible light region. Multiple oscillatory spectral lines can be emitted in the visible light region, with the strongest being at wavelengths of 514.5nm (green) and 488nm (blue). By utilizing a hard sealed laser tube, advanced power supply, and filter wheel module, the Stellar-Pro-L Select 300 integrated air-cooled argon ion laser combines size, performance, and functionality to create an outstanding laser system. The unique design of this laser allows users to choose four different wavelength options, providing excellent laser flexibility, just like having "four lasers in one".

Product PN#	product name	Wavelength	Maximum output power	Other parameters
Stellar-Pro-L 488/100	488nm integrated air-cooled argon ion laser 100mW (gas ion laser)	488nm	100mW		Add Inquiry
Stellar-Pro-L Select 300	Integrated air-cooled argon ion laser (gas ion laser/457.9nm, 488nm, 514.5nm and multi-channel)	457.9nm、488nm、514.5nm和复线	16mW @ 457.9nm； 80mW @ 488nm； 100mW @ 514.5nm and 300mW (总计)多路		Add Inquiry
