Si Bias Detector

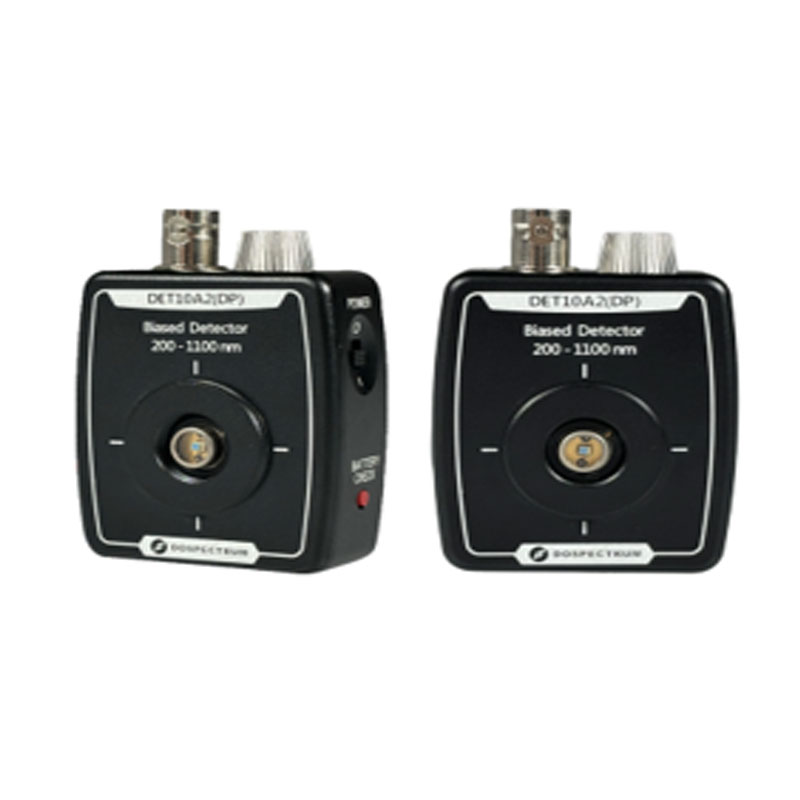

200-1100nm silicon-based bias photodetector - conventional type

Xiaoxiao Photon's silicon-based biased photodetector covers a photosensitive range of 200nm~1100nm, with extremely low noise, fast response, no gain, low cost, suitable for conventional optoelectronic detection applications, excellent performance, high cost-effectiveness, and provides Quan directional technical support. It is commonly used in ultraviolet and visible light measurements. Product features: The photosensitive range covers 200nm~1100nm and is commonly used as a bias type detector for UV and visible light measurement. It has extremely low noise, fast response, no gain and low cost, and is suitable for conventional optoelectronic detection applications. It has excellent performance and high cost-effectiveness. Quan directional technical support provides non-standard customization services. Application areas: UV and visible light measurement. Main parameters: Parameter values, wavelength range: 200-1100nm, 350-1100nm, 320-1100nm, photosensitive size: Φ 1.0mm, Φ 3.6mm, Φ 10.0mm, bandwidth range: 350MHz, 25MHz, 10MHz rise time (@ 50 Ω), 1ns14ns35nsNEP5.0 × 10-14W/Hz1/21.6 × 10-14W/Hz1/22.4 × 10-14W/Hz1/2. Dark current: 0.3nA (Typ.) 10 nA (Max) 0.35 nA (Typ.)/6.0 nA (Max) 0.9 nA (Typ.)/10 nA (Max) junction

Product PN#	product name
PDSBC3D100	320-1100nm Silicon-based Bias Photodetector, Sensitive Area Φ10.0mm	Add Inquiry
PDSBC3E36	350-1100nm Silicon-based Bias Photodetector, Sensitive Area Φ3.6mm	Add Inquiry
PDSBC2B10	200-1100nm Silicon-based Bias Photodetector, Photodetector Size Φ1.0mm	Add Inquiry

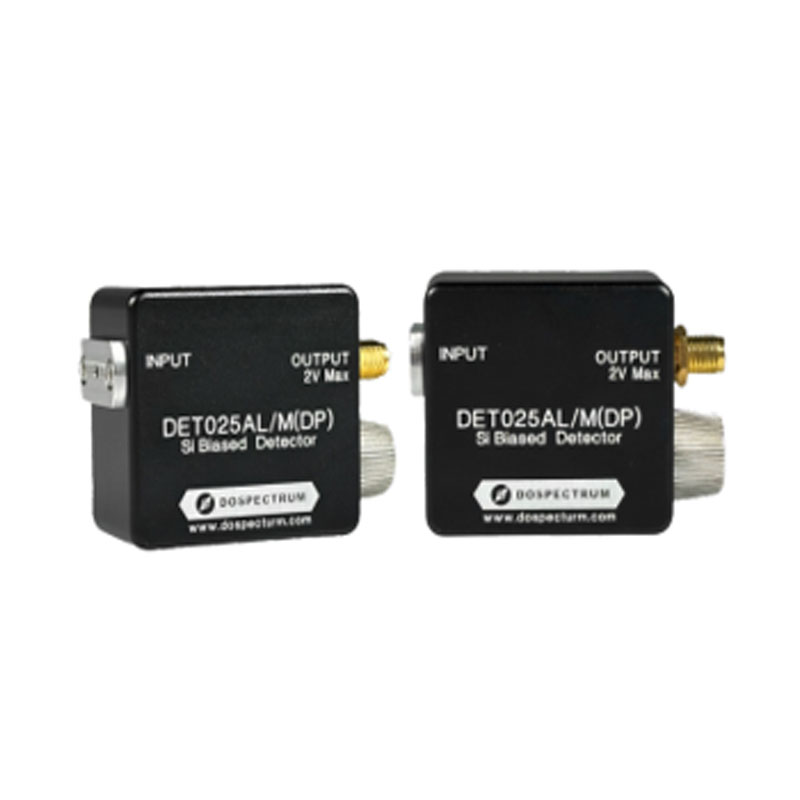

400-1100nm silicon-based bias photodetector - high-speed type

Xiaoxiao Photon's high-speed silicon-based biased photodetector covers a photosensitive range of 400nm~1100nm, with extremely low noise, fast response, no gain, low cost, suitable for conventional optoelectronic detection applications, excellent performance, high cost-effectiveness, and provides Quan directional technical support. It is commonly used for visible and infrared light measurement. Product features: The photosensitive range covers 400nm~1100nm and is commonly used as a bias type detector for visible and near-infrared light measurement. It has extremely low noise, fast response, no gain and low cost, and is suitable for measuring the intensity time waveform of high-speed laser pulses or emission events. It has excellent performance and high cost-effectiveness, and can provide non-standard customized services. Application areas: Visible light and infrared light measurement. Main parameters: parameter value input coupling method, window plate ball lens FC/PC fiber holder wavelength range of 400-1100nm, peak wavelength 730nm, peak response 0.46A/W3dB bandwidth (@ 50 Ω) 2Ghz1GHz rise/fall time (@ 50 Ω) 150ps/150ps1ns/1ns NEP9.29 × 10-15W/Hz 1/29.5 × 10-15dB 5W/Hz 1/2 dark current 35pA126pA output voltage 2V (Max...)

Product PN#	product name
PDSBH2P	400-1100nm High-speed Silicon-based Bias Photodetector, Active Area Φ250um, Rise Time 150ps	Add Inquiry
PDSBH1P	400-1100nm High-speed silicon-based biased photodetector, Active Area Φ250μm, rise time 1ns	Add Inquiry
PDSBH2W	400-1100nm High-speed Silicon-based Bias Photodetector Sensitive Area Φ250um, Rise Time 150ps, Bandwidth 2GHz Input Coupling Method: Window piece	Add Inquiry
PDSBH2L	400-1100nm High-speed Silicon-based Bias Photodetector, Input Coupling Method: Ball lens	Add Inquiry

American EOT high-speed photodetector (InGaAs/Si/GaAs) 830/1300/2000nm

Xiaoxiao Photon Company acts as an agent for EOT (Electro Optics Technology) in the United States. The entire product line of EOT's amplified photodetectors includes PIN photodiodes that convert optical power into current using the photovoltaic effect, and fixed gain transimpedance amplifiers that allow measurement of input power<1 mW. When connected to a 50 Ω resistor on an oscilloscope, the pulse width of the laser can be measured. When connected to a 50 Ω resistor of a spectrum analyzer, the frequency response of the laser can be measured. The amplified photodetector of EOT comes with its own wall mounted power supply. The coaxial cable is inserted into the SMA or BNC output connector of the photodetector and connected to a 50 Ω oscilloscope or spectrum analyzer to operate. Features: Built in transimpedance amplifier, small footprint, external wall plug-in power supply, bandwidth up to 10 GHz option, detector material, active area, providing fiber coupling or free space option applications, monitoring high repetition rate, externally modulated continuous lasers, viewing laser power of<1 mW

Product PN#	product name	Responsiveness	Bandwidth	Other parameters

High speed photodetector

Monitor the pulse energy and/or pulse shape of the laser at GHz level speed, across visible and near-infrared wavelengths, and with extremely low noise equivalent power (NEP). BNC output connector.

Product PN#	product name	Photosensitive range	bandwidth	Other parameters

400-1100nm high-speed silicon bias photodetector

Xiaoxiao Photon's high-speed silicon bias photodetector covers a photosensitive range of 400nm~1100nm, with extremely low noise, fast response, no gain, low cost, suitable for conventional optoelectronic detection applications, excellent performance, high cost-effectiveness, and provides comprehensive technical support. It is commonly used for visible light and infrared light measurement.

Product PN#	product name	Material	Sensitivity Range	Sensitivity Size	Rise Time	Input Coupling Method	Other parameters

200-1100nm conventional silicon bias photodetector

Xiaoxiao Photon's conventional silicon bias photodetector covers a photosensitive range of 200nm~1100nm, with extremely low noise, fast response, no gain, low cost, suitable for conventional photodetector applications, excellent performance, high cost-effectiveness, providing comprehensive technical support, and commonly used in ultraviolet and visible light measurements.

Product PN#	product name	Material	Sensitivity Range	Sensitivity Size	Rise Time	Other parameters
