Fiber optic filter
Fiber optic filter
Fiber optic linear filter
Fiber optic linear filter is a transmissive linear filter with a transmission range of 10% to 90%. Adopting advanced micro optical packaging technology. Linear shaped optical transmission spectra with customizable wavelengths and bandwidths. The bandwidth can range from a few nanometers to several hundred nanometers
Product PN# product name Wavelength Bandwidth Other parameters
OEOLF-100 Fiber optic linear filter 1550nm或定制 7，50nm或定制 Add Inquiry

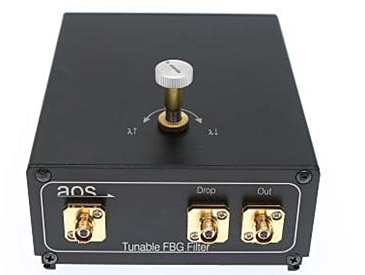

Tunable optical filter
Tunable optical filters driven by manual and motor with a wide wavelength range. It is used to adjust the center wavelength of narrow transmission bands within the tuning range of~250nm, with a narrow bandwidth as low as 0.1nm (FWHM) or below. This compact and robust filter reduces insertion loss, PDL， Provides excellent performance in terms of tuning range and transmission bandwidth uniformity.
Product PN# product name Center wavelength Type Tuning range Other parameters
OEOTF-500-500-100-M UV-VIS Tunable Optical Filter (Manual) 400-700nm 手动 100nm Add Inquiry
OEOTF-500-850-100-M 850 Tunable Optical Filter (Manual) 700-1000nm 手动 100nm Add Inquiry
OEOTF-500-1060-120-M 1060 Tunable Optical Filter (Manual) 1020-1100nm 手动 120nm Add Inquiry
OEOTF-500-1310-120-M 1310 Tunable Optical Filter (Manual) 1280-1390nm 手动 120nm Add Inquiry
OEOTF-500-1550-150-M 1550 Tunable Optical Filter (Manual) 1480-1620nm 手动 150nm Add Inquiry
OEOTF-500-2000-250-M 2000 Tunable Optical Filter (Manual) 1620-2200nm 手动 250nm Add Inquiry
OEOTF-500-500-100-E UV-VIS tunable optical filter (electric) 400-700nm 电动 100nm Add Inquiry
OEOTF-500-850-100-E 850 Tunable Optical Filter (Electric) 700-1000nm 电动 100nm Add Inquiry
OEOTF-500-1060-120-E 1060 Tunable Optical Filter (Electric) 1020-1100nm 电动 120nm Add Inquiry
OEOTF-500-1310-120-E 1310 Tunable Optical Filter (Electric) 1280-1390nm 电动 120nm Add Inquiry
OEOTF-500-1550-150-E 1550 Tunable Optical Filter (Electric) 1480-1620nm 电动 150nm Add Inquiry
OEOTF-500-2000-250-E 2000 Tunable Optical Filter (Electric) 1620-2200nm 电动 250nm Add Inquiry
OEOTF-500-2750-100-E 2750 Tunable Optical Filter (Electric) 2700-2800nm 电动 100nm Add Inquiry
OEOTF-500-2750-100-M 2750 Tunable Optical Filter (Manual) 2700-2800nm 手动 100nm Add Inquiry
Wide tuning range narrowband tunable optical filter
Xiaoxiao Photon Tunable Filter has a wide wavelength coverage range and electric automation control. It filters the input optical spectrum and its products cover communication network products, optical device testing equipment, medical imaging and other fields.
Product PN# product name Working band Type Bandwidth Other parameters
BFP91E1A 870-960nm polarization maintaining narrowband electrically tunable filter 870-960nm 电动 ＜0.05nm Add Inquiry
BFP91M1A 870-960nm polarization maintaining narrowband manually tunable filter 870-960nm 手动 ＜0.05nm Add Inquiry
BFP97E1A 920-1020nm polarization maintaining narrowband electrically tunable filter 920-1020nm 电动 ＜0.05nm Add Inquiry
BFP97M1A 920-1020nm polarization maintaining narrowband manually tunable filter 920-1020nm 手动 ＜0.05nm Add Inquiry
BFP30E1A 980-1080nm polarization maintaining narrowband electrically tunable filter 980-1080nm 电动 ＜0.05nm Add Inquiry
BFP30M1A 980-1080nm polarization maintaining narrowband manually tunable filter 980-1080nm 手动 ＜0.05nm Add Inquiry
BFP60E1A 1010-1110nm polarization maintaining narrowband electrically tunable filter 1010-1110nm 电动 ＜0.05nm Add Inquiry
BFP60M1A 1010-1110nm polarization maintaining narrowband manually tunable filter 1010-1110nm 手动 ＜0.05nm Add Inquiry
780-1000nm Gaussian type tunable filter (electric)
Xiaoxiao Photon's WLTF NE series Gaussian tunable optical filter is based on free space optics combined with diffraction gratings to generate bandpass transmission. It is a 2-port fiber optic tail device. When broadband spectrum is injected into the input port, the adjustable filter selects a narrow portion for output and suppresses the remaining frequency band of the spectrum. The center wavelength of the selected band can be adjusted within a certain range by an electric actuator.
Product PN# product name Center wavelength Wavelength tuning range FWHM bandwidth Maximum optical power Other parameters
WLTF-NE-S-810-60/0.15-PM-0.9/1.0-FC/APC-USB 810nm Gaussian type electrically tunable filter (wavelength tuning range 60nm) 810nm 60nm 0.15nm 2.0W Add Inquiry
WLTF-NE-S-940-60/0.15-PM-0.9/1.0-FC/APC-USB 940nm Gaussian type electrically tunable filter (wavelength tuning range 60nm) 940nm 60nm 0.15nm 2.0W Add Inquiry
WLTF-NE-P-810-120/1.00-PM-0.9/1.0-FC/APC-USB 810nm Gaussian type electrically tunable filter (wavelength tuning range 120nm) 810nm 120nm 1.00nm 2.0W Add Inquiry
WLTF-NE-P-940-120/1.00-PM-0.9/1.0-FC/APC-USB 940nm Gaussian type electrically tunable filter (wavelength tuning range 120nm) 940nm 120nm 1.00nm 2.0W Add Inquiry
900-1600nm narrowband tunable filter (Gaussian electric)
Xiaoxiao Photon's WLTF-NE series narrowband tunable filters are based on free space optics, combined with diffraction gratings to produce Gaussian shaped transmission. It is a 2-port fiber optic device. When broadband spectrum is injected into the input port, the tunable filter will select a target frequency band for output and suppress the remaining frequency bands of the spectrum. The wavelength tuning is connected to the micro stepper motor driver of the PC through a USB interface, where the driver is monitored by a built-in encoder and dynamically controlled in a closed loop. Both manual and electric versions of the filter can be used in the X, O, S, C, and L bands.
Product PN# product name Center wavelength Wavelength tuning range FWHM bandwidth Maximum optical power Other parameters
WLTF-NE-S-1550-50/0.15-PM-0.9/1.0-FC/APC-USB 1550nm narrowband electrically tunable filter (wavelength tuning range 50nm) 1550nm 50nm 0.15nm 5W Add Inquiry
WLTF-NE-S-1600-110/0.50-PM-0.9/1.0-FC/APC-USB 1600nm narrowband electrically tunable filter (wavelength tuning range 110nm) 1600nm 110nm 0.50nm 5W Add Inquiry
WLTF-NE-S-1060-40/0.15-PM-0.9/1.0-FC/APC-USB 1060nm narrowband electrically tunable filter (wavelength tuning range 40nm) 1060nm 40nm 0.15nm 5W Add Inquiry
WLTF-NE-S-1060-80/0.50-PM-0.9/1.0-FC/APC-USB 1060nm narrowband electrically tunable filter (wavelength tuning range 80nm) 1060nm 80nm 0.5nm 5W Add Inquiry
WLTF-NE-S-1310-45/0.15-PM-0.9/1.0-FC/APC-USB 1310nm narrowband electrically tunable filter (wavelength tuning range 45nm) 1310nm 45nm 0.15nm 5W Add Inquiry
WLTF-NE-S-1310-95/0.50-PM-0.9/1.0-FC/APC-USB 1310nm narrowband electrically tunable filter (wavelength tuning range 95nm) 1310nm 95nm 0.50nm 5W Add Inquiry
WLTF-NE-S-1550-110/0.50-PM-0.9/1.0-FC/APC-USB 1550nm narrowband electrically tunable filter (wavelength tuning range 110nm) 1550nm 110nm 0.50nm 5W Add Inquiry
WLTF-NE-S-1600-50/0.18-PM-0.9/1.0-FC/APC-USB 1600nm narrowband electrically tunable filter (wavelength tuning range 50nm) 1600nm 50nm 0.18nm 5W Add Inquiry
1060-1600nm broadband tunable filter (flat top electric)
Xiaoxiao Photon's WLTF-WE series flat top tunable filters are built on a free space optical Fourier transform platform combined with diffraction gratings. The unique optical design provides a method for selecting spatially expected spectral components for broadband spectral input while suppressing the remaining spectral bands. The wavelength tuning is connected to the micro stepper motor driver of the PC through a USB interface, where the driver is monitored by a built-in encoder and dynamically controlled in a closed loop.
Product PN# product name Center wavelength Wavelength tuning range FWHM bandwidth Maximum optical power Other parameters
WLTF-WE-S-1600-100/2.50-PM-0.9/1.0-FC/APC-USB 1600nm broadband electrically tunable filter (FWHM bandwidth 2.50-120nm) 1600nm 100nm 2.50nm 5W Add Inquiry
WLTF-WE-S-1550-100/2.50-PM-0.9/1.0-FC/APC-USB 1550nm broadband electrically tunable filter (FWHM bandwidth 2.50-120nm) 1550nm 100nm 2.50nm 5W Add Inquiry
WLTF-WE-S-1310-100/2.00-PM-0.9/1.0-FC/APC-USB 1310nm broadband electrically tunable filter (FWHM bandwidth 2.00-100nm) 1310nm 100nm 2.00nm 5W Add Inquiry
WLTF-WE-S-1060-80/1.40-PM-0.9/1.0-FC/APC-USB 1060nm broadband electrically tunable filter (FWHM bandwidth 1.40-80nm) 1060nm 80nm 1.40nm 5W Add Inquiry
1060-1600nm bandpass tunable filter (flat top electric)
Xiaoxiao Photon builds WLTF-BM series short and long bandpass adjustable filters based on free space optical Fourier transform combined with diffraction gratings, achieving passband tuning. The unique optical design allows for spatial selection of the long or short bandpass portion of the input spectrum and provides flat transmission within the passband. Wavelength tuning is achieved by a precision micrometer.
Product PN# product name Center wavelength wavelength tuning range maximum optical power Other parameters
WLTF-BE-S-L-1600-PM-0.9/1.0-FC/APC-USB 1600nm bandpass electrically tunable filter (wavelength tuning range 100nm) 1600nm 100nm 5W Add Inquiry
WLTF-BE-S-L-1550-PM-0.9/1.0-FC/APC-USB 1550nm bandpass electrically tunable filter (wavelength tuning range 100nm) 1550nm 100nm 5W Add Inquiry
WLTF-BE-S-L-1310-PM-0.9/1.0-FC/APC-USB 1310nm bandpass electrically tunable filter (wavelength tuning range 100nm) 1310nm 100nm 5W Add Inquiry
WLTF-BE-S-L-1060-PM-0.9/1.0-FC/APC-USB 1060nm bandpass electrically tunable filter (wavelength tuning range 80nm) 1060nm 80nm 5W Add Inquiry
Bandwidth wavelength tunable filter (flat top manual)
Xiaoxiao Photon has built the WLTF-BA series bandwidth adjustable filters based on a platform that combines free space optical Fourier transform with diffraction gratings. It is a 2-port fiber optic device. When a broadband spectrum is injected into the input port, the tunable filter selects a target frequency band for output and suppresses the spectrum of other frequency bands. The bandwidth and center wavelength of the selected target band are independently adjustable. Wavelength tuning is achieved by a precision micrometer.
Product PN# product name Center wavelength Wavelength tuning range FWHM bandwidth Maximum optical power Other parameters
WLTF-BA-S-1060-80-PM-0.9/1.0-FC/APC 1060nm bandwidth wavelength manually tunable filter (FWHM bandwidth 1.40-40nm) 1060nm 80nm 1.40nm 5W Add Inquiry
WLTF-BA-S-1310-90-PM-0.9/1.0-FC/APC 1310nm bandwidth wavelength manually tunable filter (FWHM bandwidth 2.00-40nm) 1310nm 90nm 2.00nm 5W Add Inquiry
WLTF-BA-S-1550-100-PM-0.9/1.0-FC/APC 1550nm bandwidth wavelength manually tunable filter (FWHM bandwidth 2.50-40nm) 1550nm 100nm 2.50nm 5W Add Inquiry
WLTF-BA-S-1600-100-PM-0.9/1.0-FC/APC 1600nm bandwidth wavelength manually tunable filter (FWHM bandwidth 2.50-40nm) 1600nm 100nm 2.50nm 5W Add Inquiry
1060-1600nm broadband tunable filter (flat top manual)
Xiaoxiao Photon's WLTF-WM series flat top tunable filters are built on a free space optical Fourier transform platform combined with diffraction gratings. The unique optical design provides a method for selecting spatially expected spectral components for broadband spectral input while suppressing the remaining spectral bands. Wavelength tuning is achieved by a precision micrometer.
Product PN# product name Center wavelength Wavelength tuning range FWHM bandwidth Maximum optical power Other parameters
WLTF-WM-S-1060-80/1.40-PM-0.9/1.0-FC/APC 1060nm broadband manually tunable filter (FWHM bandwidth 1.40-80nm) 1060nm 80nm 1.40nm 5W Add Inquiry
WLTF-WM-S-1310-100/2.00-PM-0.9/1.0-FC/APC 1310nm broadband manually tunable filter (FWHM bandwidth 2.00-100nm) 1310nm 100nm 2.00nm 5W Add Inquiry
WLTF-WM-S-1550-100/2.50-PM-0.9/1.0-FC/APC 1550nm broadband manually tunable filter (FWHM bandwidth 2.50-100nm) 1550nm 100nm 2.50nm 5W Add Inquiry
WLTF-WM-S-1600-100/2.50-PM-0.9/1.0-FC/APC 1600nm broadband manually tunable filter (FWHM bandwidth 2.50-100nm) 1600nm 100nm 2.50nm 5W Add Inquiry
1060-1600nm bandwidth tunable filter (flat top manual)
The bandwidth tunable filter (BWTF series) of Xiaoxiao Photon is built on a platform that combines free space optics with diffraction gratings to generate flat top transmission. It is a 2-port fiber optic device. When a broadband spectrum is injected into the input port, the tunable filter will select a target frequency band for output and suppress the remaining frequency bands. The transmission bandwidth is variable within a certain spectral range at a fixed center wavelength. The bandwidth adjustment is achieved by a precision micrometer.
Product PN# product name Center wavelength FWHM bandwidth maximum optical power Other parameters
BWTF-MU-1060-PM-0.9/1.0-FC/APC 1060nm bandwidth manually tunable filter (FWHM bandwidth 0.20-60nm) 1060nm 0.20nm 5W Add Inquiry
BWTF-MU-1310-PM-0.9/1.0-FC/APC 1310nm bandwidth manually tunable filter (FWHM bandwidth 0.25-60nm) 1310nm 0.25nm 5W Add Inquiry
BWTF-MU-1550-PM-0.9/1.0-FC/APC 1550nm bandwidth manually tunable filter (FWHM bandwidth 0.35-60nm) 1550nm 0.35nm 5W Add Inquiry
BWTF-MU-1600-PM-0.9/1.0-FC/APC 1600nm bandwidth manually tunable filter (FWHM bandwidth 0.40-60nm) 1600nm 0.40nm 5W Add Inquiry
1060-1600nm bandpass tunable filter (flat top manual)
Xiaoxiao Photon builds WLTF-BM series short and long bandpass adjustable filters based on free space optical Fourier transform combined with diffraction gratings, achieving passband tuning. The unique optical design allows for spatial selection of the long or short bandpass portion of the input spectrum and provides flat transmission within the passband. Wavelength tuning is achieved by a precision micrometer.
Product PN# product name Center wavelength wavelength tuning range maximum optical power Other parameters
WLTF-BM-S-L-1060-PM-0.9/1.0-FC/APC 1060nm bandpass manually tunable filter (wavelength tuning range 80nm) 1060nm 80nm 5W Add Inquiry
WLTF-BM-S-L-1310-PM-0.9/1.0-FC/APC 1310nm bandpass manually tunable filter (wavelength tuning range 100nm) 1310nm 100nm 5W Add Inquiry
WLTF-BM-S-L-1550-PM-0.9/1.0-FC/APC 1550nm bandpass manually tunable filter (wavelength tuning range 100nm) 1550nm 100nm 5W Add Inquiry
WLTF-BM-S-L-1600-PM-0.9/1.0-FC/APC 1600nm bandpass manually tunable filter (wavelength tuning range 100nm) 1600nm 100nm 5W Add Inquiry
900-1600nm narrowband tunable filter (Gaussian type manual)
Xiaoxiao Photon's WLTF-NM series narrowband tunable filters are based on free space optics, combined with diffraction gratings to produce Gaussian shaped transmission. It is a 2-port fiber optic device. When broadband spectrum is injected into the input port, the tunable filter will select a target frequency band for output and suppress the remaining frequency bands of the spectrum. Wavelength tuning is achieved by a precision micrometer. Both manual and electric versions of the filter can be used in the X, O, S, C, and L bands.
Product PN# product name Center wavelength Wavelength tuning range FWHM bandwidth Maximum optical power Other parameters
WLTF-NM-P-1060-60/0.15-PM-0.9/1.0-FC/APC 1060nm narrowband manually tunable filter (wavelength tuning range 60nm) 1060nm 60nm 0.15nm 5W Add Inquiry
WLTF-NM-P-1060-120/0.50-PM-0.9/1.0-FC/APC 1060nm narrowband manually tunable filter (wavelength tuning range 120nm) 1060nm 120nm 0.50nm 5W Add Inquiry
WLTF-NM-P-1310-60/0.15-PM-0.9/1.0-FC/APC 1310nm narrowband manually tunable filter (wavelength tuning range 60nm) 1310nm 60nm 0.15nm 5W Add Inquiry
WLTF-NM-P-1310-120/0.50-PM-0.9/1.0-FC/APC 1310nm narrowband manually tunable filter (wavelength tuning range 120nm) 1310nm 120nm 0.50nm 5W Add Inquiry
WLTF-NM-P-1550-60/0.15-PM-0.9/1.0-FC/APC 1550nm narrowband manually tunable filter (wavelength tuning range 60nm) 1550nm 60nm 0.15nm 5W Add Inquiry
WLTF-NM-P-1550-140/0.50-PM-0.9/1.0-FC/APC 1550nm narrowband manually tunable filter (wavelength tuning range 140nm) 1550nm 140nm 0.50nm 5W Add Inquiry
WLTF-NM-P-1600-60/0.18-PM-0.9/1.0-FC/APC 1600nm narrowband manually tunable filter (wavelength tuning range 60nm) 1600nm 60nm 0.18nm 5W Add Inquiry
WLTF-NM-P-1600-140/0.50-PM-0.9/1.0-FC/APC 1600nm narrowband manually tunable filter (wavelength tuning range 140nm) 1600nm 140nm 0.50nm 5W Add Inquiry
780-1000nm Gaussian type tunable filter (manual)
Xiaoxiao Photon's WLTF-NM series Gaussian tunable optical filter is based on free space optics combined with diffraction gratings to generate bandpass transmission. It is a 2-port fiber optic tail device. When broadband spectrum is injected into the input port, the adjustable filter selects a narrow portion for output and suppresses the remaining frequency band of the spectrum. The center wavelength of the selected band can be adjusted within a certain range using a precision micrometer.
Product PN# product name Center wavelength Wavelength tuning range FWHM bandwidth Maximum optical power Other parameters
WLTF-NM-P-810-60/0.15-PM-0.9/1.0-FC/APC 810nm Gaussian manually tunable filter (wavelength tuning range 60nm) 810nm 60nm 0.15nm 2.0W Add Inquiry
WLTF-NM-P-810-120/1.00-PM-0.9/1.0-FC/APC 810nm Gaussian manually tunable filter (wavelength tuning range 120nm) 810nm 120nm 1.00nm 2.0W Add Inquiry
WLTF-NM-P-940-60/0.15-PM-0.9/1.0-FC/APC 940nm Gaussian manually tunable filter (wavelength tuning range 60nm) 940nm 60nm 0.15nm 2.0W Add Inquiry
WLTF-NM-P-810-120/1.00-PM-0.9/1.0-FC/APC 940nm Gaussian manually tunable filter (wavelength tuning range 120nm) 940nm 120nm 1.00nm 2.0W Add Inquiry
1060-1600nm bandwidth tunable filter (flat top electric)
The bandwidth tunable filter (BWTF series) of Xiaoxiao Photon is built on a platform that combines free space optics with diffraction gratings to generate flat top transmission. It is a 2-port fiber optic device. When a broadband spectrum is injected into the input port, the tunable filter will select a target frequency band for output and suppress the remaining frequency bands. The transmission bandwidth is variable within a certain spectral range at a fixed center wavelength. The bandwidth adjustment is connected to the micro stepper motor driver of the PC through a USB interface, where the driver is monitored by a built-in encoder and dynamically controlled in a closed loop.
Product PN# product name Center wavelength FWHM bandwidth maximum optical power Other parameters
BWTF-EU-1600-PM-0.9/1.0-FC/APC-USB 1600nm bandwidth electrically tunable filter (FWHM bandwidth 0.40-60nm) 1600nm 0.40nm 5W Add Inquiry
BWTF-EU-1550-PM-0.9/1.0-FC/APC-USB 1550nm bandwidth electrically tunable filter (FWHM bandwidth 0.35-60nm) 1550nm 0.35nm 5W Add Inquiry
BWTF-EU-1310-PM-0.9/1.0-FC/APC-USB 1310nm bandwidth electrically tunable filter (FWHM bandwidth 0.25-60nm) 1310nm 0.25nm 5W Add Inquiry
BWTF-EU-1060-PM-0.9/1.0-FC/APC-USB 1060nm bandwidth electrically tunable filter (FWHM bandwidth 0.20-60nm) 1060nm 0.20nm 5W Add Inquiry
