Fiber coupled gain switch distributed feedback laser diode component (picosecond ultra short pulse seed laser) 1027-1080nm

Xiaoxiao Photon's ultra short picosecond pulse seed laser driver is an ideal choice for driving 14 pin butterfly packaged laser modules, suitable for applications with pulse widths less than 1ns. Applications include material processing, time-resolved spectroscopy, LIDAR, etc. The driving circuit is provided by a single 5V power supply. All other required voltages are generated on the circuit board through efficient power conversion. The driver provides a bidirectional proportional integral derivative controller (PID) thermoelectric cooler controller (TEC) with a current of 3A and a voltage of 4.2V. Equipped with LD-PD inc 1020-1083nm DFB laser diode, it can achieve ultra fast output with a pulse width of 60ps and a peak power of 300mw.

Product PN#	product name	Center wavelength	Pulse width	Peak power
OP-1030-PM-300-GS	1030nm picosecond ultra short pulse seed laser (polarization maintaining output)	1030nm	60 ps	300mW	Add Inquiry
OP-1053-PM-300-GS	1053nm picosecond ultra short pulse seed laser (polarization maintaining output)	1053nm	60 ps	300mW	Add Inquiry
OP-1064-HI-300-GS	1064nm fiber coupled gain switch distributed feedback laser diode component (picosecond) HI-1060 fiber	1064nm	60 ps	300mW	Add Inquiry
OP-1064-PM-300-GS	1064nm picosecond ultra short pulse seed laser (polarization maintaining output)	1064nm	60 ps	300mW	Add Inquiry

1030nm picosecond fiber laser oscillator mode-locked fully normal dispersion (ANDI) fiber laser 30mW 37MHz 3ps

GO Pico is a mode-locked fully normal dispersion (ANDI) fiber oscillator that achieves mode locking through nonlinear polarization rotation. The sturdy design ensures excellent stability and maintenance free operation. As a seed source for both a single amplifier and the entire diode pumped solid-state laser (DPSSL) front-end, it is a great choice.

Product PN#	product name	Center wavelength	Pulse width	Repetition frequency	Other parameters
GO pico	1030nm picosecond fiber laser oscillator/mode-locked fully normal dispersion (ANDI) fiber laser	1030nm	<3ps	37MHz		Add Inquiry

266/355/532nm picosecond hybrid laser 4-30W 15ps less than 1000kHz

The 4-30W 266/355/532nm picosecond laser implemented by this product. Make it suitable for processing well-known difficult to process transparent materials such as glass, resin, film drilling, patterning, ceramics, metal films, and composite materials, thereby achieving unprecedented high-quality processing.

Product PN#	product name	Center wavelength	Output power
LDH-G0610	532nm picosecond hybrid laser (greater than 6W, 15ps, 200kHz~1000kHz)	532nm	6W	Add Inquiry
LDH-G0612	532nm picosecond hybrid laser (greater than 6W, 15ps, less than 50kHz)	532nm	6W	Add Inquiry
LDH-G2510	532nm picosecond hybrid laser (greater than 25W, 15ps, 200kHz~1000kHz)	532nm	25W	Add Inquiry
LDH-V0412	355nm UV picosecond hybrid laser (greater than 4W, 15ps, less than 50kHz)	355nm	4W	Add Inquiry
LDH-V0410	355nm UV picosecond hybrid laser (greater than 4W 15ps 200-1000kHz)	355nm	4W	Add Inquiry
LFV-30104	355nm UV picosecond hybrid laser (over 30W, 15ps, 400-1000kHz)	355nm	30W	Add Inquiry

1064.2nm computer-controlled high repetition rate microchip MOPA laser 600mW 150-300ps

P1064 HP64 computer-controlled high repetition rate microchip MOPA laser

Product PN#	product name	Center wavelength	Output power	Pulse width	Other parameters
P1064-HP64	1064.2nm computer-controlled high repetition rate microchip MOPA laser 150-300ps	1064.2 nm	600mW	150-300ps		Add Inquiry

S1064 PS11 compact high repetition rate microchip seed laser 1064.2nm 20mW 100ps

Picophilonics' S1064-PS11 is a seed laser with a wavelength of 1064 nm, a pulse width of 100 to 150 ps, and a tunable repetition rate of 50-150 kHz.

Product PN#	product name	Center wavelength	Output power	Repetition frequency	Other parameters
S1064-PS11	1064.2nm Compact High Repetition Microchip Seed Laser 20mW 100ps	1064.2 nm	20mW	100 kHz		Add Inquiry

1064nm DFB picosecond pulse laser 75.5ps 200uW

This is a DFB pulse laser with a wavelength of 1064 nm, a pulse width of 75.5 ps, and a tunable repetition rate of 1-30 MHz.

Product PN#	product name	Center wavelength	Pulse width	Repetition frequency	Other parameters
MP-PSL-1064-75.5PS-PM-FC/APC	1064nm DFB picosecond pulse laser 75.5ps 200uW	1064 nm	75.5ps	15MHz		Add Inquiry

Ytterbium doped picosecond seed source fiber laser module 1064nm 30mW pulse width 10ps

Ytterbium doped Picosecond Fiber Laser Module

Product PN#	product name	Center wavelength	Output power	Repetition frequency	Other parameters
YPFLM-06-10-30-30-L-03-L-2	1064nm ytterbium doped picosecond seed source fiber laser module with 30mW pulse width of 10ps	1064nm	30mW	30MHz		Add Inquiry

1064/532/355/266nm PICOPOWER high-energy picosecond laser 10kHz

High-Energy Picosecond Laser PICOPOWER ™- The RG1-1064-10K picosecond laser can provide ultra short pulses with high energy, peak value, and average power at a wavelength of 1064 nm, with a variable repetition rate from single emission to 10 kHz. It has different synchronization functions and can provide excellent 3.5 ps jitter pulses as needed. The optional wavelengths of 532 nm, 355 nm, and 266 nm can be collinear or used as multiple output beams. The notable features of this laser are excellent power, pulse to pulse and beam pointing stability, diffraction limited output beam, on-demand pulse triggering, and peak power exceeding 2 MW, while the electrical power consumption is less than 30 W. It is an ideal choice for many applications, including microfabrication of metal and non-metal materials, semiconductor wafer inspection, engraving, nonlinear optics, ultrafast spectroscopy, and more.

Product PN#	product name	Center wavelength	Repetition frequency	Other parameters
PICOPOWER-RG1-1064-10K	1064nm PICOPOWER High Energy Picosecond Laser 10kHz	1064nm	10kHz		Add Inquiry

1030nm Picosecond Thin Film Laser System/Microchip Picosecond Pulse High Power Laser 100W 100kHz 2ps

PERLA 100 is a small laser system based on a thin disk regenerative amplifier, providing picosecond pulses at a repetition rate of 100 kHz and a pulse energy of 1mJ. It integrates a fiber optic front-end seed optical amplifier and a universal control system, allowing for precise control and monitoring of the laser. The robust design ensures excellent stability and maintenance free operation. The PERLA laser platform design allows for flexible modification of output parameters. Users can customize solutions according to their requirements.

Product PN#	product name	Center wavelength	Pulse duration (pulse width)	Repetition frequency	Other parameters
PERLA 100	1030nm Thin Film Picosecond Pulse Laser System	1030nm	2ps	100kHz		Add Inquiry

1064nm ultra stable picosecond fiber laser 10mW 25MHz 15ps

Xiaoxiao Photon's development of a 1064 nm ultra stable picosecond fiber laser is an excellent seed source solution for industrial grade ultrafast laser processing applications. This laser has typical advantages of traditional fiber lasers, such as small size (external dimensions: 235 × 120 × 40 mm), no need for thermal management, and high output beam quality (single-mode output). The spectral center wavelength of the output pulse of this ultrafast laser is 1064 nm, with a selectable repetition rate of 20-30 MHz. The pulse width can be less than 10 ps, and the spectral width is less than 0.5 nm, Max. Pulse energy 3 nJ. Due to the use of special nonlinear technology to achieve the equivalent saturable absorber effect, the output pulse not only has high long-term stability, but also can withstand high and low temperature working environments of 0-45 ° C.

Product PN#	product name	Center wavelength	Pulse duration (pulse width)	Repetition frequency	Other parameters
PL-UFL-10-10-PA	1064nm ultra stable picosecond fiber laser	1064nm	15ps	25MHz		Add Inquiry

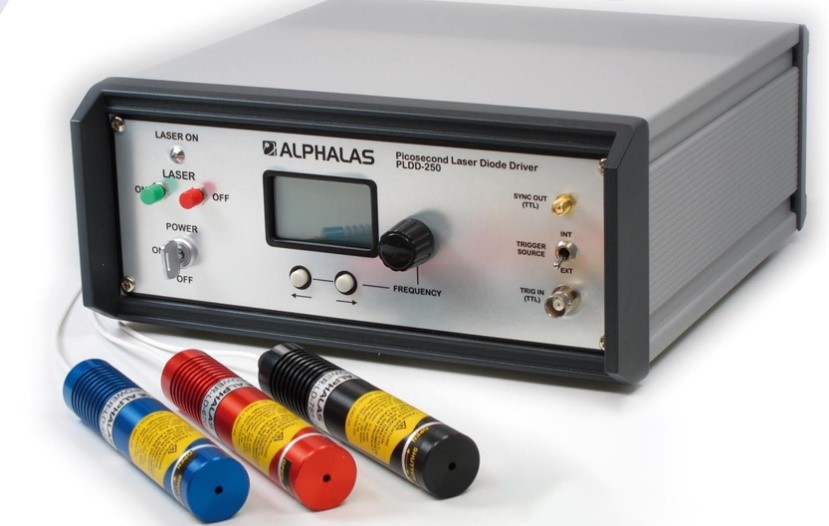

Visible light picosecond pulse diode laser 370-1550nm 250mW-3W

Provide standard wavelengths: 375, 405, 450, 488, 635, 670, 785, 976, 1030, 1064, 1300, 1550nm, and many other customized specific wavelengths! The laser pulse is shorter than 40 ps. The peak power of specific wavelengths can reach up to 3 W, and the laser head can be replaced. Output type: FSB=Free Space Beam; FCP=Fiber optic cable coupled to connector FC/PC; FCA=Fiber Optic Coupling with Connector FC/APC

Product PN#	product name	Pulse width	Other parameters
PICOPOWER-LD-810-FSB	810nm Picosecond Pulse Diode Laser with Driver 100MHz	50ps		Add Inquiry
PLDD-100-40	Visible light picosecond pulse diode laser (picosecond laser diode driver)	40 ps		Add Inquiry

1560nm Picosecond Pulse Fiber Laser 50ps 10mW 80MHz

The E-Fiber series picosecond pulse updating laser uses high-performance rare earth fiber as the working medium, combined with high-precision dispersion compensation technology and active servo system, to achieve stable output of 1560nm wavelength picosecond pulse laser. One click auto start, long-term stable operation and maintenance free, with the characteristics of extremely narrow laser pulses and high peak pulse power, widely used in optical frequency comb, supercontinuum spectrum, terahertz THz and other fields* Accept customization of parameters such as pulse width, power, repetition rate, etc.

Product PN#	product name	Center wavelength	Pulse width	Average power	Other parameters
PS-PL-1560-50-10-80-PM-B	1560nm Picosecond Pulse Fiber Laser	1560nm	50ps	10mW		Add Inquiry

515/532nm Picosecond Pulse Fiber Laser 50ps 10mW 50MHz

The Y-Fiber series ultrafast laser utilizes high-performance rare earth fiber as the working medium, combined with full polarization maintaining mode locking and frequency doubling technology, to achieve stable output of picosecond pulse laser in the 515/532nm wavelength band. It can start automatically and work stably for a long time, with the characteristics of narrow laser pulses and high peak optical power. It can be used for scientific research in fields such as fluorescence lifetime microscopy imaging and nonlinear optics* Accept customization of parameters such as pulse width, power, repetition rate, etc

Product PN#	product name	Center wavelength	Pulse width	Average power	Other parameters
PSPL-515-50-10-50-FS-B	515nm Picosecond Pulse Fiber Laser	515nm	50ps	10mW		Add Inquiry

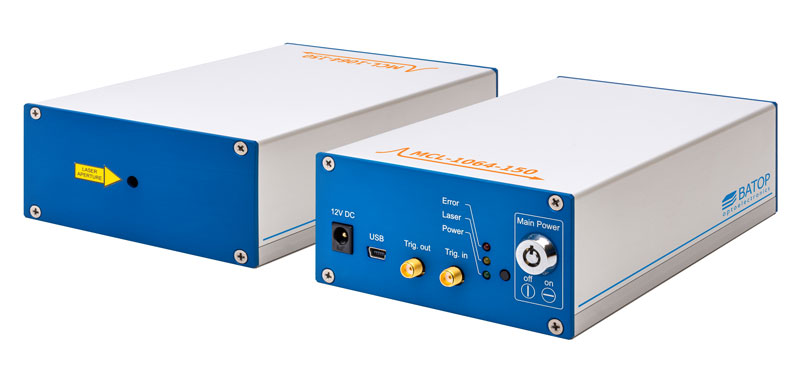

BATOP Picosecond Microchip Laser 150ps 500kHz 3mW 15nJ

The microchip laser module can provide short single-mode pulses with a wavelength of 1064 nm as needed. The pulse repetition rate is controlled by software and can be set between a single trigger and 500 kHz. The nominal pulse duration is 150 ps. MCL-1064-150 includes a microchip with pump diodes and a software controlled electronic module. The chip includes an Nd: YVO4 laser crystal and a semiconductor saturable output coupler.

Product PN#	product name	Laser emission wavelength (air)	pulse duration	output power	Other parameters
MCL-1064-150	1064nm BATOP Picosecond Microchip Laser	1064nm	150ps	3mW		Add Inquiry

UKKO picosecond fiber laser 355/532/1064nm (air-cooled/water-cooled 70W 60 μ J 50ps 50kHz-20MHz)

Picosecond fiber laser is a laser widely used in precision machining, scientific research, medical and other fields. It plays an important role in many demanding technical fields due to its high peak power, short pulse duration and high beam quality.

Product PN#	product name	Center wavelength	Output power	Pulse duration (FWHM)
UKKO-PS-1064-50-10-20	1064nm UKKO picosecond fiber laser (air-cooled 10W 20uJ 50ps)	1064nm	10W	50±5皮秒	Add Inquiry
UKKO-PS-1064-50-10-60	1064nm UKKO picosecond fiber laser (air-cooled 10W 60uJ 50ps)	1064nm	10W	50±5皮秒	Add Inquiry
UKKO-PS-1064-50-70-60	1064nm UKKO Picosecond Fiber Laser (Water cooled 70W 60uJ 50ps)	1064nm	70W	50±5皮秒	Add Inquiry
UKKO-PS-355-50-12-10	355nm UKKO picosecond fiber laser (water-cooled 12W 10uJ 50ps)	355nm	12W	50±5皮秒	Add Inquiry
UKKO-PS-532-50-30-25	532nm UKKO picosecond fiber laser (water-cooled 30W 25uJ 50ps)	532m	30W	50±5皮秒	Add Inquiry
UKKO-PS-532-50-5-10	532nm UKKO picosecond fiber laser (air-cooled 5W 10uJ 50ps)	532m	5W	50±5皮秒	Add Inquiry
UKKO-PS-532-50-5-25	532nm UKKO picosecond fiber laser (air-cooled 5W 25uJ 50ps)	532m	5W	50±5皮秒	Add Inquiry

1GHz repetition rate multi-channel ultra short pulse laser source 365-1550nm 30ps-100ns

A multi-channel ultra short pulse laser source is a type of laser source that can simultaneously emit multiple laser beams with extremely short pulse widths (typically ranging from femtosecond to picosecond). These laser pulses have high power and extremely short time widths, enabling high-precision time and spatial resolution experiments or applications.

Product PN#	product name	Center wavelength	Pulse width	Other parameters
LDM-35PS-1310-GHz-Burst	1GHz repetition rate multi-channel ultra short pulse laser source 1310nm 35ps	1310nm	35ps		Add Inquiry

Short pulse diode module LDM (wavelength 405-1550nm optional)

This short pulse diode module LDM is suitable for 405-1550n wavelength laser diodes, with laser pulses as short as 30 ps, nanosecond pulse width 1-100ns, peak power up to 2W, repetition rate up to 30 MHz, and high repetition rate up to 60 MHz using an external TTL signal source. Can be controlled by computer through mini USB interface

Product PN#	product name	Center wavelength	Peak power	Repetition frequency	Other parameters
LDM-PS-1064	1064nm picosecond short pulse diode module LDM 600MW (pulse width repetition rate 30MHz)	1064	600mW	30MHz		Add Inquiry

1020-1090nm narrow linewidth picosecond pulse laser source

Xiaoxiao Photon provides main oscillator power amplification (MOPA) and pulsed laser seed source at different center wavelengths. Applications include but are not limited to quantum optics, spectroscopy, industrial and medical/biomedical applications, etc. Specifically, high-power narrow linewidth pulse laser sources have important application value in quantum photonics, single photon sources, entangled photon sources, sensing, and medical applications.

Product PN#	product name	Wavelength	Average power	Repetition frequency	Pulse width	3dB bandwidth
OEPLS-PS-100-NL-1030-0.01-10-100-S	1030nm narrow linewidth picosecond pulse laser source (Seed)	1030nm	0.01W	10MHz	100ps	0.02nm	Add Inquiry
OEPLS-PS-100-NL-1064-0.01-10-100-S	1064nm narrow linewidth picosecond pulse laser source (Seed)	1064nm	0.01W	10MHz	100ps	0.02nm	Add Inquiry
OEPLS-PS-100-NL-1030-1-10-100-M	1030nm narrow linewidth picosecond pulse laser source (MOPA)	1030nm	1W	10MHz	100ps	0.07nm	Add Inquiry
OEPLS-PS-100-NL-1064-1-10-100-M	1064nm narrow linewidth picosecond pulse laser source (MOPA)	1064nm	1W	10MHz	100ps	0.07nm	Add Inquiry

266-2000nm picosecond pulse laser source

Xiaoxiao Photon provides main oscillator power amplification (MOPA) and pulsed laser seed source at different center wavelengths. The application scope includes but is not limited to spectroscopy, industry, and medical/biomedical fields.

Product PN#	product name	Wavelength	Average Power	Repetition Frequency	Pulse Width
OEPLS-PS-100-1060-0.05-200k-50-S	1060nm Picosecond Pulse Laser Source (Seed)	1060nm	0.05W	200kHz	50ps	Add Inquiry
OEPLS-PS-100-1550-0.05-30k-40-S	1550nm Picosecond Pulse Laser Source (Seed)	1550nm	0.05W	30kHz	40ps	Add Inquiry
OEPLS-PS-100-2000-0.01-1M-100-S	2000nm Picosecond Pulse Laser Source (Seed)	2000nm	0.01W	1MHz	100ps	Add Inquiry
OEPLS-PS-100-1060-10-200k-50-M	1060nm Picosecond Pulse Laser Source (MOPA)	1060nm	10W	200kHz	50ps	Add Inquiry
OEPLS-PS-100-1550-10-30k-40-M	1550nm Picosecond Pulse Laser Source (MOPA)	1550nm	10W	30kHz	40ps	Add Inquiry
OEPLS-PS-100-2000-5-1M-100-M	2000nm Picosecond Pulse Laser Source (MOPA)	2000nm	5W	1MHz	100ps	Add Inquiry
