FBG filter

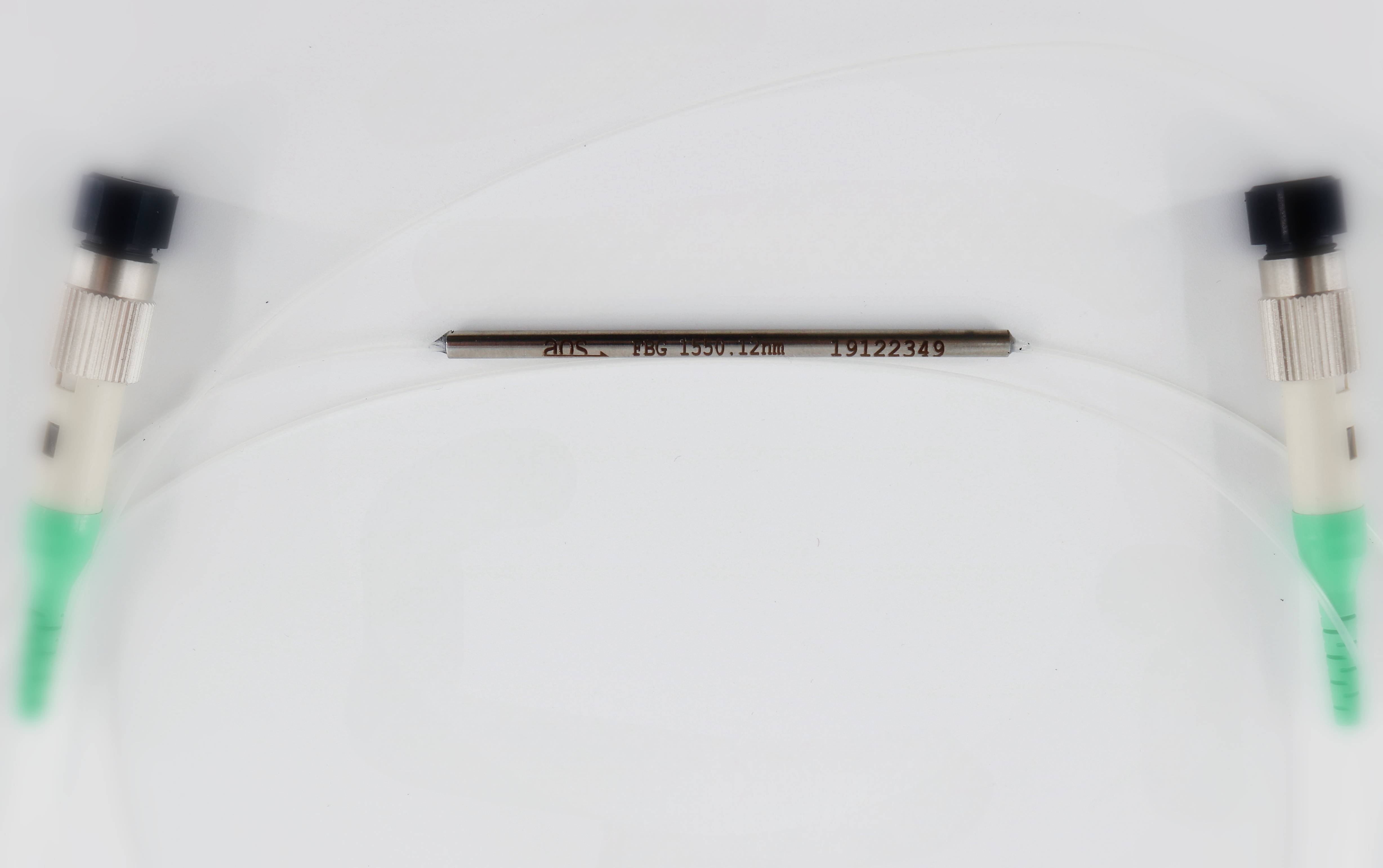

AOS broadband FBG filter 1550nm

By utilizing the "chirp" (linear variation of the period within the FBG structure) fiber Bragg grating technology, we can provide a very wide bandwidth and high suppression for FBGs. We can provide a wide range of center wavelengths, bandwidths, and reflectivity.

Product PN#	product name		Other parameters
BB-FBG-99-30-FA	AOS broadband FBG filter 1550nm			Add Inquiry

Broadband Fiber Bragg Grating FBG Filter 1310/1550/1660/1627/1742nm

Xiaoxiao Photon has introduced coherent excimer engraving technology and recognized packaging technology, solving the reliability problem of fiber Bragg grating products. By utilizing its excellent holographic phase mask technology XmaskTM and grating writing technology, it has achieved technological breakthroughs in multiple products in the field of FBG technology. The products include gain flattening filters (GFF), single channel and multi-channel dispersion compensators, dispersion slope compensators, pump laser frequency stabilization, fiber laser gratings, etc. At present, we provide bulk supply to multiple international units, and our products have long-term stable and reliable performance. The grating used in fiber lasers can withstand a maximum power of 1500W. Our product supports wavelength ranges of 1310 nm (O-band), 1520 nm (S-band), 1550 nm (C-band), and 1600 nm (L-band), with a bandwidth of 0.1-0.5 nm. Support the engraving of various passive optical fibers. The company has introduced the Yokogawa high-precision spectrometer, which enables customers to have a better understanding of the product's performance by providing each fiber with a single spectrum.

Product PN#	product name
FBG-01-1388.5-2000-2-2-3	1388.5nm broadband fiber Bragg grating filter	Add Inquiry
FBG-01-1392-3000-2-2-3	1392nm broadband fiber Bragg grating filter	Add Inquiry
SWFBG-1627-02-90-02-SA	1627nm broadband fiber Bragg grating filter	Add Inquiry
FBG-90-1310-500-2-2-3	1310nm broadband fiber Bragg grating filter FBG-90-1310-500-2-2-3	Add Inquiry
SWFBG-1660-8-99-SA	1660nm broadband fiber Bragg grating filter	Add Inquiry

Ultra narrow line broadband fiber Bragg grating FBG filter 1539.4/1551.08nm (bandwidth<0.05nm, reflectivity 90% polarization maintaining optional)

Xiaoxiao Photon's ultra narrow linewidth passband filter is based on our advanced fiber Bragg grating technology. Narrow linewidth passband filters can be used to select small bandwidth optical signals to pass through and block all other wavelengths. This narrow linewidth passband filter is designed for applications such as fiber laser ASE noise suppression, laser radar filters, high-resolution Raman spectroscopy, fluorescence microscopy, and optical instruments.

Product PN#	product name		Other parameters
NBFBG-1539.4-004-99-01-SA	1539.4nm Narrow Bandwidth Fiber Bragg Grating (FBG) Filter			Add Inquiry
NBFBG-1551.08-004-99-01-SA	1551.08nm Narrow Linewidth Fiber Bragg Grating (FBG) Filter (Bandwidth < 0.05nm, Reflectivity up to 90%, PM Option Available)			Add Inquiry

AOS 100GHz DWDM FBG Filter

Fiber Bragg Grating is a widely used component in optical communication. FBG serves as a narrowband fiber filter. Bragg gratings are printed into optical fibers through holographic technology. They can be produced using standard single-mode fibers or special fibers, namely radiation mode suppression fibers used to reduce cladding mode losses.

Product PN#	product name		Other parameters
AOS-FBG-1550-50-120-FC/APC	FBG Filter of 50GHz & 1550nm			Add Inquiry
AOS -FBG-1062-100-75-FC/APC	FBG Filter 100GHz 1062nm			Add Inquiry

Electric tunable fiber Bragg grating filter

Xiaoxiao Photon's tunable fiber Bragg grating filter (OETFG-200) can provide a stable adjustable range, simple structure, high resolution, and long lifespan. This adjustable filter adopts Fiber Bragg Grating (FBG) technology, which can be used for both transmission mode and reflection mode, or only for reflection mode (as required). As an option, a fiber optic circulator can be integrated to provide a bandpass signal for the output port. The cyclist can be used in the range of 1060nm, 1310nm, and 1550nm. The band stop option without the need for a loop protector is also available. In the bandstop version, the communication signal is reflected to the input end.

Product PN#	product name	Center wavelength	Tuning range	FWHM bandwidth	Insertion loss	Type	Other parameters

Standard narrow linewidth passband fiber grating filter

Xiaoxiao Photon's OEPBG-100 standard narrow linewidth passband filter is based on advanced fiber Bragg grating technology. This type of filter can be used to select a small bandwidth optical signal to pass through while blocking all other wavelengths. This narrow line broadband filter can be applied in fields such as ASE noise suppression in fiber lasers, laser radar filters, high-resolution Raman spectroscopy, fluorescence microscopy, and optical instruments.

Product PN#	product name	Center wavelength	Reflectance	FWHM bandwidth	stopband	Other parameters

Ultra narrow linewidth passband fiber grating filter

Xiaoxiao Photon's OEUBG-100 ultra narrow linewidth filter based on fiber Bragg grating is a cutting-edge optical component designed to provide wavelength selectivity with high transmission efficiency. With extremely narrow bandwidth, it isolates specific wavelengths with high precision, making it highly suitable for applications such as spectroscopy, laser systems, and telecommunications. Due to their excellent performance in suppressing unwanted spectral noise, they are crucial for high-resolution systems that require precise control of transmission wavelengths.

Product PN#	product name	Center wavelength	Reflectivity	FWHM bandwidth	Isolation	Other parameters

Manually tunable fiber Bragg grating filter

Product PN#	product name	Center wavelength	Tuning range	FWHM bandwidth	Insertion loss	Type	Other parameters

Thermally tunable fiber Bragg grating filter

The temperature tunable fiber Bragg grating filter (OETFG-300) of Xiaoxiao Photon utilizes a thermoelectric cooler (TEC) to fine tune the center wavelength of FBG in the range of 1 nm. The specifications of fiber Bragg grating (FBG) filters can be fully customized and defined by customers (with some limitations in application). When in reflective mode, the customer needs to use an external optical ring resonator. The circulators can be obtained from Xiaoxiao Photon in the range of 1060nm, 1310nm, and 1550nm, and can be provided upon request.

Product PN#	product name	Center wavelength	tuning range	FWHM bandwidth	reflectivity	type	Other parameters
