AOM
1310nm (polarization maintaining) fiber optic acousto-optic modulator
Product PN# product name Other parameters
AOM100-1310-1(X) 1310m polarization-maintaining acousto-optic modulator (operating frequency 100MHz) Add Inquiry
AOM150-1310-1(X) 1310m polarization-maintaining acousto-optic modulator (operating frequency 150MHz) Add Inquiry
AOM200-1310-1(X) 1310m polarization-maintaining acousto-optic modulator (operating frequency 200MHz) Add Inquiry
1064nm (polarization maintaining) fiber optic acousto-optic modulator
Microphotons' acousto-optic modulators are widely used in the field of fiber optic sensing due to their high modulation extinction ratio and high power tolerance. This product is specifically developed for the application requirements of fiber optic sensing. It has the advantages of small size, low power consumption (<1W), fast rise time (12ns), good modulation pulse shape (small overshoot), and good pulse repeatability (small repetition period jitter). In addition, the modulator and driver can be integrated and packaged for system integration. It can be widely used in various fiber optic sensing systems that require pulse modulation, such as φ - OTDR, BOTDR, OFDR, etc.
Product PN# product name Other parameters
AOM100-1064-1(X) 1064nm polarization-maintaining acousto-optic modulator Add Inquiry
1550nm dual output fiber coupled acousto-optic device (all fiber acousto-optic modulator)
The Xiaoxiao photon all fiber acousto-optic modulator allows users to change the output light amplitude, duration, and period/frequency. The insertion loss can be as low as 2 dB, the extinction ratio can be as high as 50 dB, the rise time can be as low as 5 nanoseconds, and the periodicity can be as high as several hundred MHz. Applications include switches, pulse pickups, fast attenuators, etc. The wavelength range is from near ultraviolet to near infrared. A special application of modulators is programmable attenuators. Attenuator is a key component in the design of fiber optic transmission systems. Attenuators are used to match the optical power level with the dynamic range of the receiver, adjust the input and output levels in EDFA, balance the power between different DWDM channels, and test the overall performance of the system under different optical power conditions.
Product PN# product name Other parameters
DP-AOM80-1550-PA 1550nm Dual-Output Fiber Coupled Acousto-Optic Device (All-Fiber Acousto-Optic Modulator) Add Inquiry

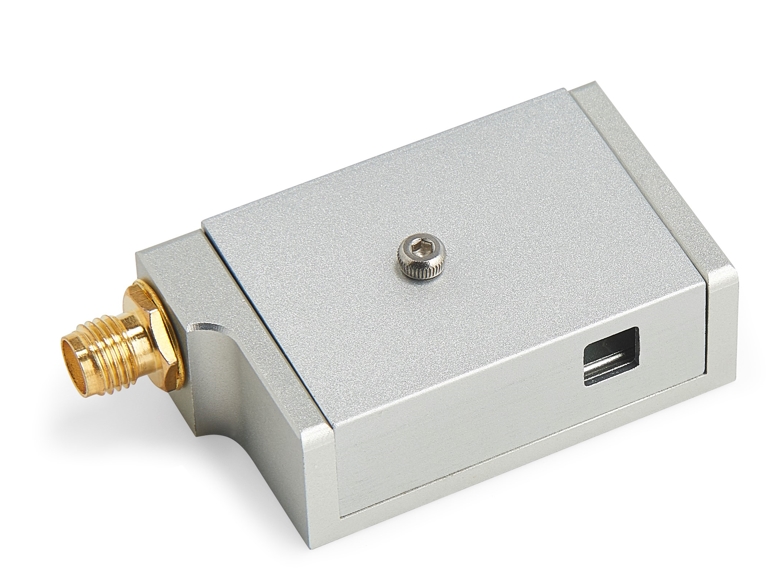

Full band free space acousto-optic modulator 532/632/780/850/1064/1550nm
The Xiaoxiao acousto-optic modulator allows users to change the output light amplitude, duration, and period/frequency. The insertion loss can be as low as 2 dB, the extinction ratio can be as high as 50 dB, the rise time can be as low as 5 nanoseconds, and the periodicity can be as high as hundreds of MHA. Applications include switches, pulse pickups, fast attenuators, etc. The wavelength range is from near ultraviolet to near infrared.
Product PN# product name Other parameters
A-780-110-L-T-D1-T-A-K Full-band Free-Space Acousto-optic Modulator 110MHz Add Inquiry
A-780-150-L-T-D1-T-A-K Full-band Free-Space Acousto-optic Modulator150MHz Add Inquiry
A-780-200-L-T-D0.3-T-A-K Full-band Free-Space Acousto-optic Modulator200MHz Add Inquiry
A-632-100-L-T-D1-T-A-K 632nm Full Bandwidth Free-Space Acousto-Optic Modulator 100MHz Add Inquiry
A-532-80-L-T-D1-T-A-K 532nm Full Bandwidth Free-Space Acousto-Optic Modulator 80MHz Add Inquiry
A-780-150-L-T-D2-T-A-K 780nm Full Bandwidth Free-Space Acousto-Optic Modulator 150MHz Add Inquiry
A-850-200-L-T-D0.3-T-A-K 850nm Full Bandwidth Free-Space Acousto-Optic Modulator 200MHz Add Inquiry
A-1064-120-L-T-D0.7-T-A-K 1064nm Full Band Free Space Acousto-Optic Modulator 120MHz Add Inquiry
A-1550-40-L-T-D0.7-T-A-K 1550nm Full Band Free Space Acousto-Optic Modulator 40MHz Add Inquiry
780nm polarization maintaining single-mode acousto-optic modulator (operating frequency: 80/100/200MHz optional)
Microphotons' acousto-optic modulators are widely used in the field of fiber optic sensing due to their high modulation extinction ratio and high power tolerance. This product is specifically developed for the application requirements of fiber optic sensing. It has the advantages of small size, low power consumption (<1W), fast rise time (12ns), good modulation pulse shape (small overshoot), and good pulse repeatability (small repetition period jitter). In addition, the modulator and driver can be integrated and packaged for system integration. It can be widely used in various fiber optic sensing systems that require pulse modulation, such as φ - OTDR, BOTDR, OFDR, etc.
Product PN# product name Other parameters
AOM200-780-1-SA 780nm SM acousto-optic modulator (operating frequency 200MHz, FC/APC) Add Inquiry
AOM200-780-1-PA 780nm PM acousto-optic modulator (operating frequency 200MHz, FC/APC) Add Inquiry
AOM80-780-1-PA 780nm PM acousto-optic modulator (operating frequency 80MHz, FC/APC) Add Inquiry
AOM80-780-1-SA 780nm SM acousto-optic modulator (operating frequency 80MHz, FC/APC) Add Inquiry
AOM100-780-1-SA 780nm SM acousto-optic modulator (operating frequency 100MHz, FC/APC) Add Inquiry
AOM100-780-1-PA 780nm PM acousto-optic modulator (operating frequency 100MHz, FC/APC) Add Inquiry
1550/1650nm single-mode/polarization maintaining fiber acousto-optic modulator
Microphotons' acousto-optic modulators are widely used in the field of fiber optic sensing due to their high modulation extinction ratio and high power tolerance. This product is specifically developed for the application requirements of fiber optic sensing. It has the advantages of small size, low power consumption (<1W), fast rise time (12ns), good modulation pulse shape (small overshoot), and good pulse repeatability (small repetition period jitter). In addition, the modulator and driver can be integrated and packaged for system integration. It can be widely used in various fiber optic sensing systems that require pulse modulation, such as φ - OTDR, BOTDR, OFDR, etc.
Product PN# product name Other parameters
AOM100-1650-1-SA 1650nm SM Acousto-Optic Modulator 100MHz Add Inquiry
AOM200-1550-1-SA 1550nm Single-Mode Acousto-Optic Modulator Add Inquiry
AOM100-1650-1-SA 1650nm Single-mode acousto-optic modulator 100MHz Add Inquiry
AOM40-1550-1-SA 1550nm SM Acousto-Optic Modulator 40MHz Add Inquiry
AOM40-1550-1-PA 1550nm polarization-preserving acousto-optic modulator 40MHz Add Inquiry
AOM150-1650-1-PA 1650nm Polarization Maintaining AOM 150MHz Add Inquiry
AOM200-1650-1-PA 1650nm Polarization Maintaining AOM 200MHz Add Inquiry
AOM100-1550-1(X) 1550nm polarization-maintaining acousto-optic modulator Add Inquiry
AOM150-1550-1(X) 1550nm PM acousto-optic modulator 150MHz Add Inquiry
AOM200-1550-1(X) 1550nm PM acousto-optic modulator 200MHz Add Inquiry
