VCSEL Laser Driver 20mA Maximum Voltage 4V DB9 Output Interface
VCSEL Laser Driver 20mA Maximum Voltage 4V DB9 Output Interface
Idealphotonics' VCSEL laser driver features a full aluminum housing, offering excellent heat dissipation and shell strength to ensure stable and reliable long-term operation. It includes a 2.4-inch OLED display with large, clear fonts. The built-in low-noise adjustable constant current driver and TEC control are integrated. The VCSEL driver base, developed and designed by us, allows for easy insertion of the laser's pins, facilitating testing. It supports software-controlled operation and can also accept external modulation signals. Customization is available based on the laser's pin definitions.
Product features:Compact structure 、Easy operation 、Software control
Application area:Gas analysis 、Laser driver
Unit Price
Please contact customer service for a discounted quote.
Part Number
VCSEL-20-M
Lead Time
Please contact customer service for lead time.
Stock
Please contact customer service for stock availability.
Add to Inquiry
Inquire online
General Parameters
Dimensional Drawing

Parameter

Technical Specifications

Parameters

Operating Voltage

220VAC

Power Frequency

50Hz

Power (Max)

6W

Maximum Laser Tube Drive Voltage

4V

Maximum Laser Control Temperature

50.0℃

Minimum Laser Control Temperature

5.0℃

TEC Drive Current (Low)

0.13A

TEC Drive Current (High)

0.3A

Laser Drive Current

0-20mA

Modulation Voltage

0-15V

Modulation Frequency

300k

 Note: Output interface DB9

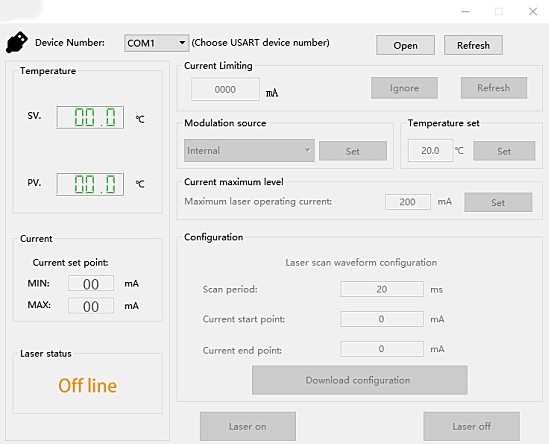

Software Interface




1550nm VCSEL Laser Experimental Test Case

1.Without External Modulation

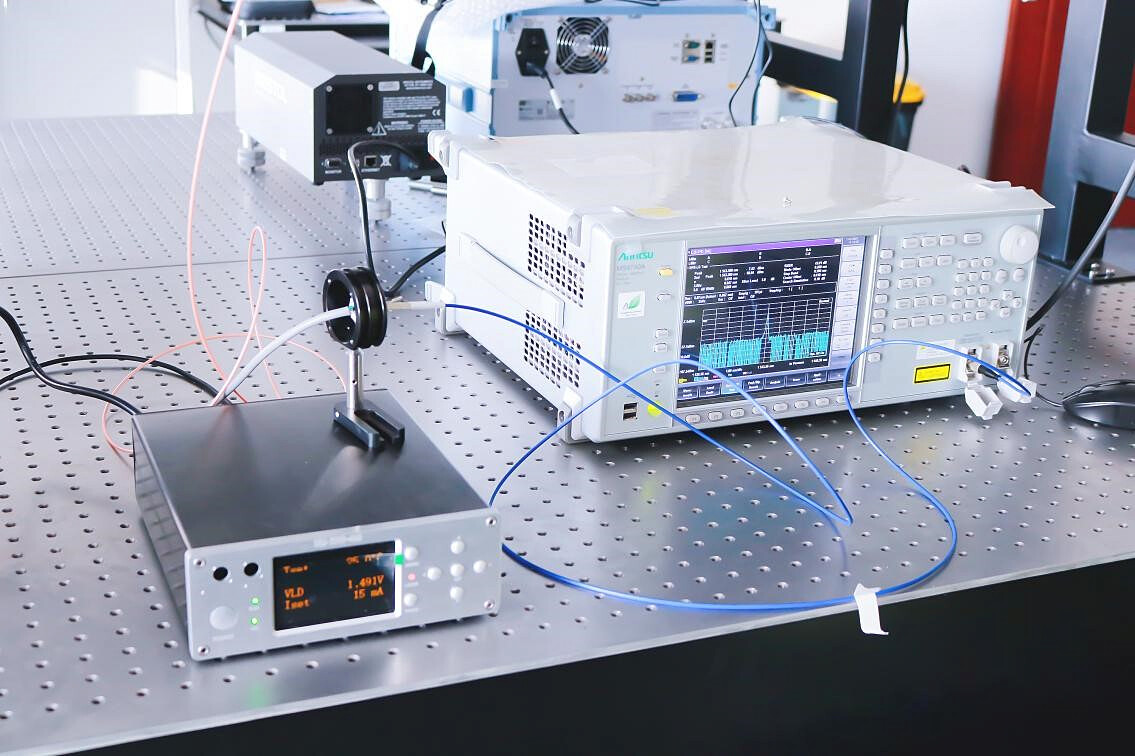

2.jpg(1) Connect the 1550nm TOSA laser to an LC-APC connection cable, then insert the laser into the driver base and connect it to the driver. The other end of the connection cable is linked to a spectrometer or power meter.

(2) Connect the USB cable to the computer, open the driver software, set the maximum current to 20mA in the software, configure it to internal modulation (inter), click SET, and the setup is complete.
(3) Set the current and turn on the laser.

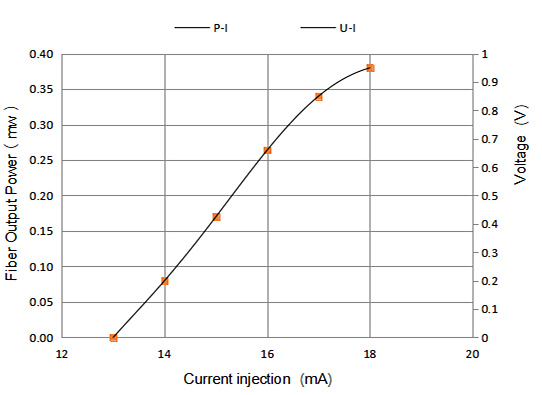

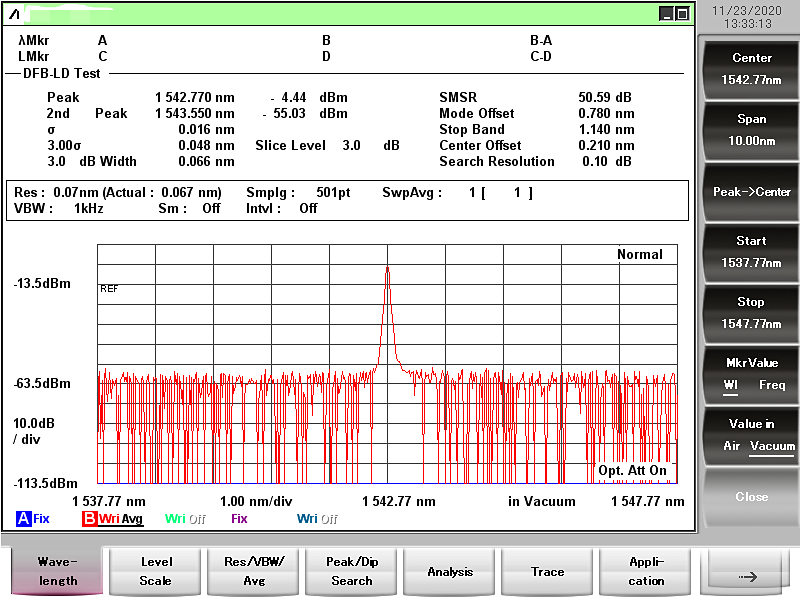

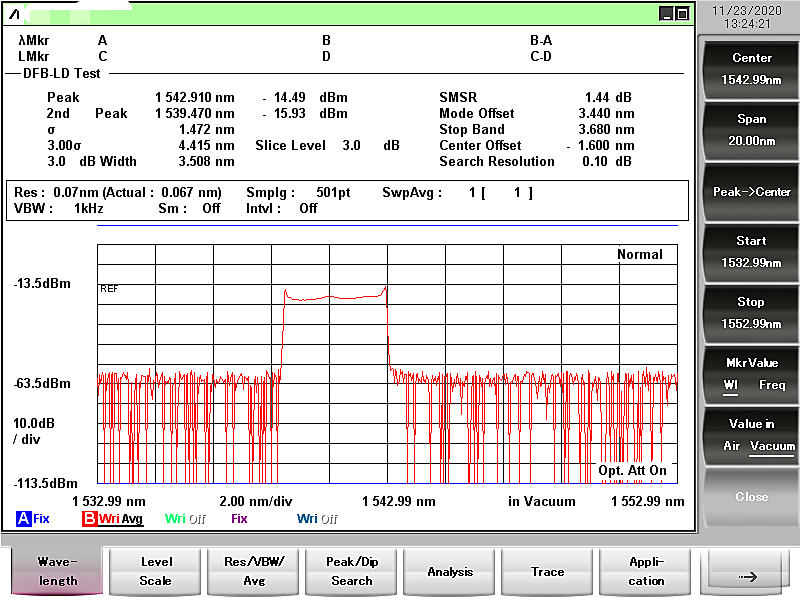

Test result





2.With External Modulation Using a Signal Generator
(1) Set the signal generator to sweep mode.

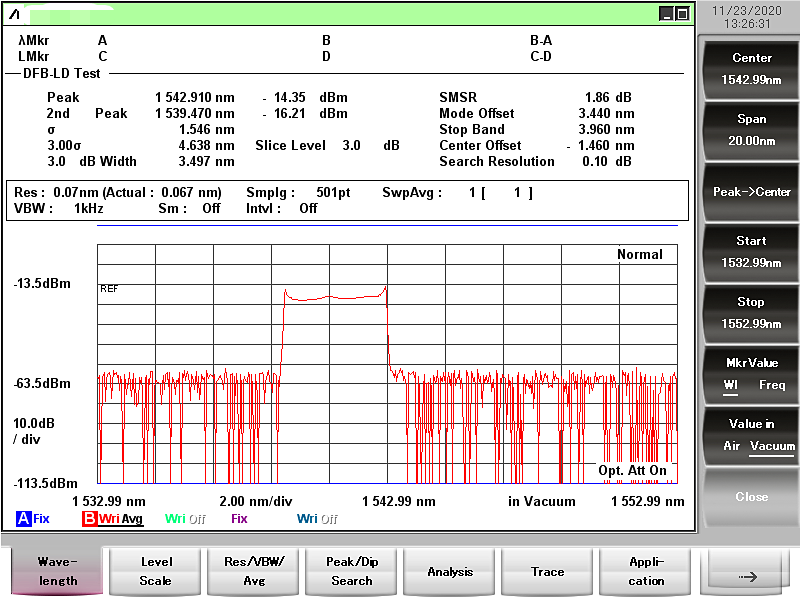

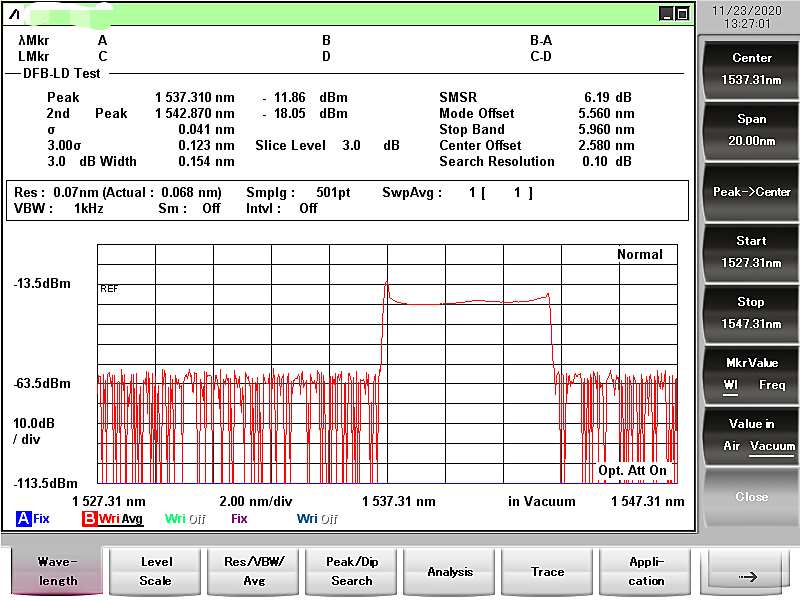

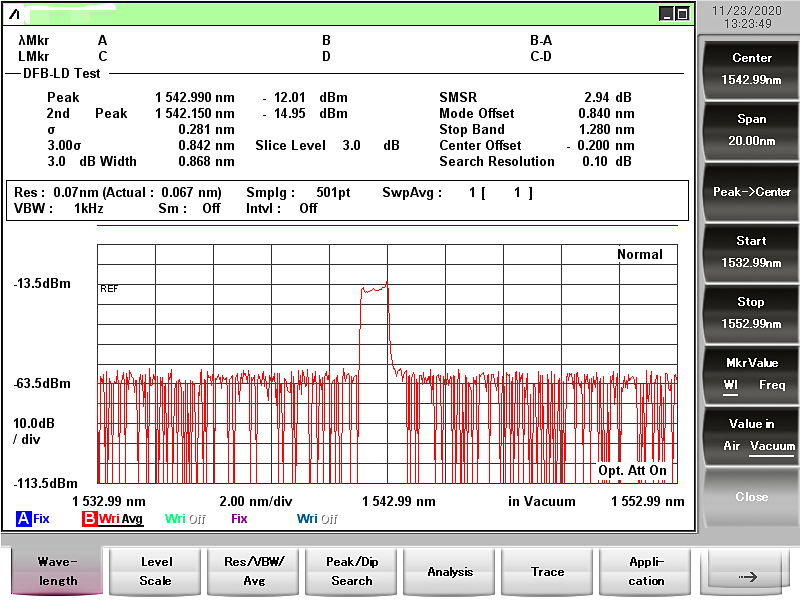

When a fixed frequency of 50KHz is set, the corresponding spectral diagrams for different voltages are as follows:


3V


 6V


9V


12V

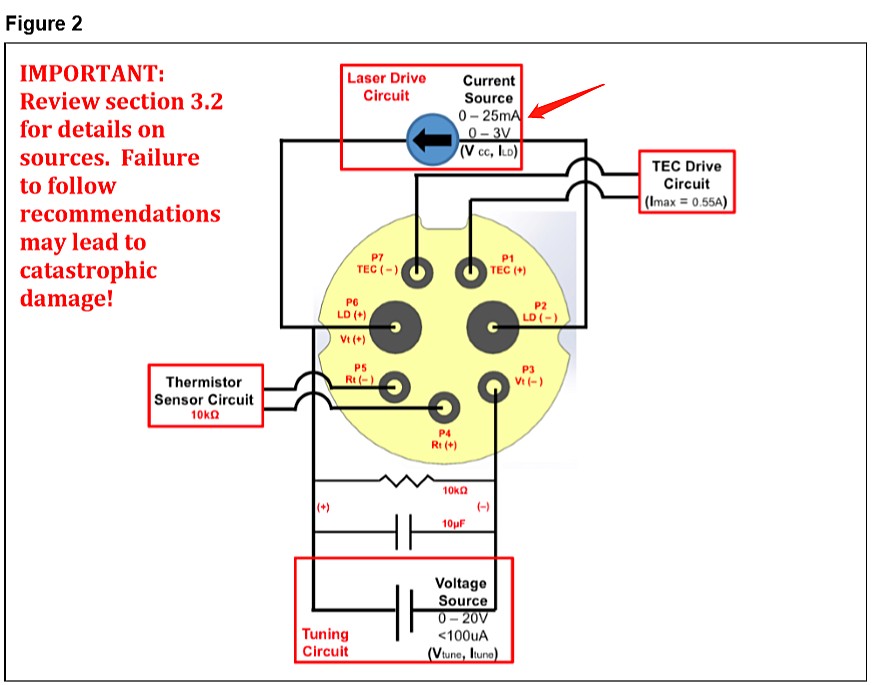

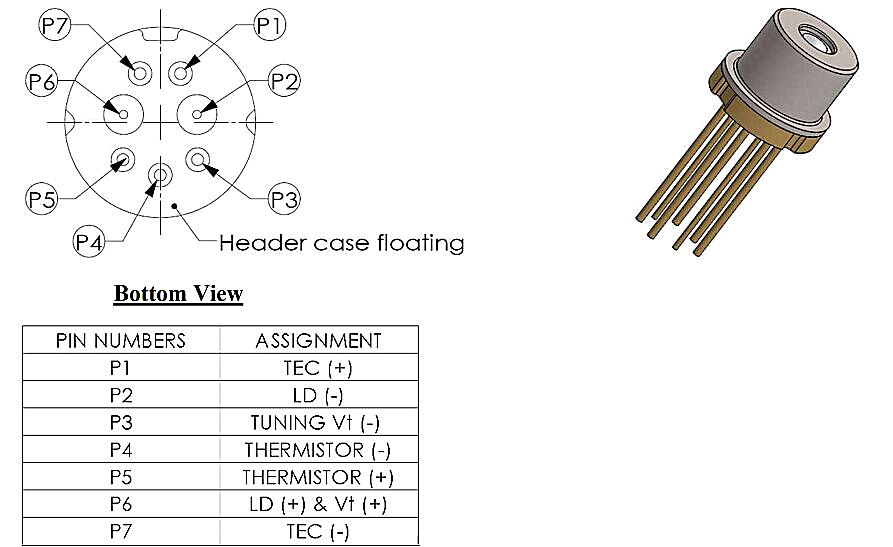

Laser Pin Definition Description
