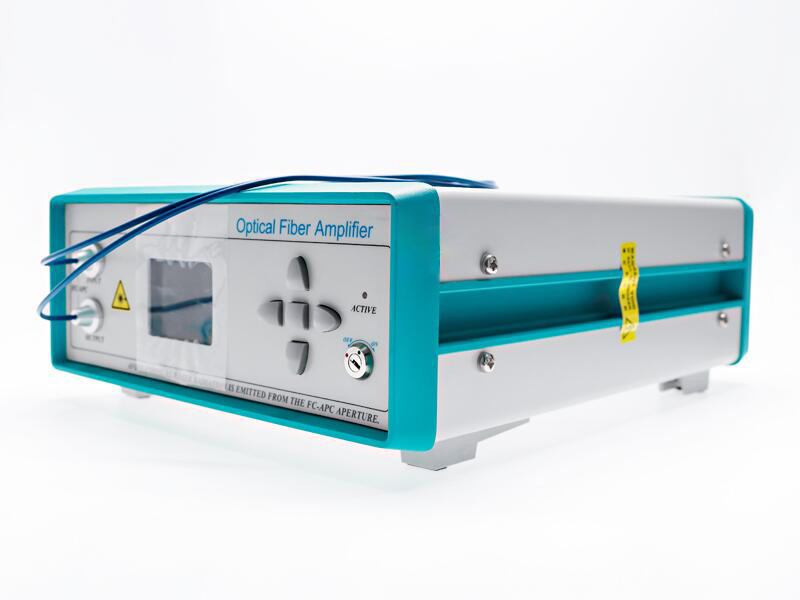

L-band single mode Erbium Doped Fiber Amplifier 2W

Idealphotonics optical amplifier module, optional bands: O-band, S-band, C-band, L-band. Optional amplifier types: Booster Amplifier, Pre-Amplifier. Low noise, gain 8dB~40dB optional. EDFA- L-B-30-ISO series is a L-band fiber amplifier with a wavelength of 1565~1580nm. It has a wide range of applications including high-speed data signals, image signals, and femtosecond pulse amplification applications. For WDM signals, it has excellent gain smoothness throughout the L-band broadband. Max. output, input/output fiber, control method and appearance can be customized

Product features：Output power: 20-40dBm、 Excellent noise figure、 Stable gain spectrum、 Low cost、 Output power and pump current monitoring、 ACC / ALC mode operation

Application area：Optical communication、 Test and measurement、 Scientific applications

Unit Price

Please contact customer service for a discounted quote.

Part Number

EDFA-L-B-33-1-SA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

parameter	Unit	Min.	Typical.	Max.
Operating wavelength range	nm	1565	-	1580
Input light power	dBm	-6	-	10
Output power	W	-	-	3
Noise index	dB	-	-	6
Operating temperature	℃	-5	-	+45
Operating humidity range	%	-	-	75
Storage temperature range	℃	-40	-	+85
power supply		AC 110-240V
Working mode		ACC/APC
Pigtail		PM1550 。3mm slow axis alignment
Connector type		FC/APC
Dimension	mm	260（W）X 320（D）X 120（H）

Note: If the input signal is a pulse laser with a repetition rate of less than 1MHz, do not use the APC mode, only the ACC mode can be used

Ordering Information

EDFA-△-PG-OPP-ISO △ :

C=C band

L=L Band

C+L=C+L Band

PG: package method

B: benchtop

M: module

OPP (Output Power): output power，Unit dBm

E.G. : 16-16dbm，23-23dBm

ISO: Built-in isolator protection

0-None

1-Pump protection

XX: Fiber and Connector Type

SA=SMF-28E+ FC/APC

SP=SMF-28E+ FC/PC

PP=PM Fiber+ FC/PC

PA=PM Fiber+ FC/APC
