780nm long-distance collimating lens

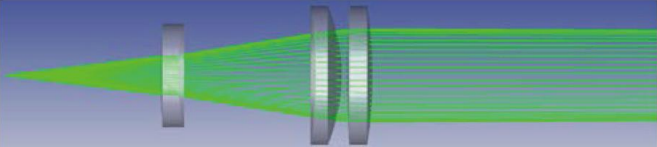

The fiber output can be collimated and shaped for different laser outputs from fiber connections, providing diffraction-limited performance at the designed wavelength with collimation distances up to 200 meters. The design of this series of collimating lenses is compact and unaffected by misalignment. During design, image aberration correction is applied, and a double-lens series with air spacing is chosen for excellent collimation performance. The effective focal length of the double-lens is wavelength-dependent. Therefore, this series of collimating lenses should be used at the designed wavelength for optimal performance.
Product features:Fiber Collimator with FC/APC, FC/PC, or SMA905 Connectors、 Usable for wavelength range from 405 nm to 1.55 μm、 Simplifies free-space laser-to-fiber coupling、 Double-lens design with aberration correction
Application area:
Unit Price
Please contact customer service for a discounted quote.
Part Number
NIR-CLM-780-14.2-0.004-95
Lead Time
Please contact customer service for lead time.
Stock
Please contact customer service for stock availability.
Add to Inquiry
Inquire online
General Parameters
Dimensional Drawing


Beam waist spot diameter: Taken at the 1/e² point of the Gaussian beam, calculated using the theoretical value for single-mode fiber at each wavelength.
Far-field divergence angle of the beam: The input uses single-mode fiber for each wavelength, with the divergence angle calculated according to the theoretical value of a Gaussian beam at the 1/e² point.
Tolerance: + 0.01° / 0.0°






Technical Parameters

Central Wavelength

Bandwidth

Beam Waist Diameter (at 1/e²)

Beam Divergence Angle (Far Field)

Effective Focal Length

Numerical Aperture (Lens)

Fiber Type

Transmittance

405nm

±30nm

10.2mm

0.09mrad

66.5mm

0.19

405HP

>92%

450nm

±30nm

13.7mm

0.07mrad

68.4mm

0.18

405HP

>92%

520nm

±30nm

14.2mm

0.06mrad

70.3mm

0.18

460HP

>92%

635nm

±30nm

14.5mm

0.07mrad

72.1mm

0.17

630HP

>92%

780nm

±30nm

14.2mm

0.07mrad

73.3mm

0.17

780HP

>92%

850nm

±30nm

14.9mm

0.07mrad

73.7mm

0.17

780HP

>92%

905nm

±30nm

14.9mm

0.07mrad

73.9mm

0.17

980HP

>92%

980nm

±30nm

15.0mm

0.09mrad

74.2mm

0.17

980HP

>92%

1064nm

±30nm

15.2mm

0.09mrad

74.5mm

0.17

980HP

>92%

1310nm

±30nm

12.9mm

0.12mrad

75.1mm

0.17

SMF-28e

>92%

1550nm

±30nm

14.2mm

0.14mrad

75.6mm

0.17

SMF-28e

>92%

1650nm

±30nm

14.5mm

0.14mrad

76.0mm

0.17

SMF-28e

>92%
