880-2600nm High Speed Extended InGaAs Photodetector

ING-I2600LA1 series photoelectric detector is a photoelectric detector with wide wavelength response. Response wavelength range: 880-2600nm. Our detector has fast response speed and is widely used in the field of communication sensing.

Product features：Compact size、 4 φ6mm through holes for coaxial mounting、 Light-tight and air-tight、 Multiple sensor options、 Switchable 20dB gain、 Wide power input: ±5 to ±20V

Application area：Q-modulated laser monitoring、 Mode-locked laser output monitoring 、 Weak visible light detector

Unit Price

Please contact customer service for a discounted quote.

Part Number

C3A-I2600LA1

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Photoelectric detector ING-I2600LA1 parameters

Properties	Value
Photodetector	Extended InGaAS Indium Gallium Arsenide Detector
Photosensitive surface size	Φ1mm
Optical window	Plane borosilicate glass
Response wavelength range	880-2600nm
Peak wavelength	1860nm
Sensitivity	0. 85A/ W @1310nm 0. 95A/ W @1550nm
Directivity	±20º
NEP	6*10^-15 W/ Hz^{1/ 2}
Operating bandwidth	3-5MHz
Transimpedance gain	50k V/ A @ 0dB Gain 500k V/ A @20dB Gain
Output voltage range	0~+3V (into Hi-Z) 0~+1. 5V (into 50Ω)
Output impedance	50Ω
Input operating voltage	V+: +5 ~ +20V V- : -5 ~ -20V
Operating temperature	10~50 ºC
Maximum pressure difference	±50kPa

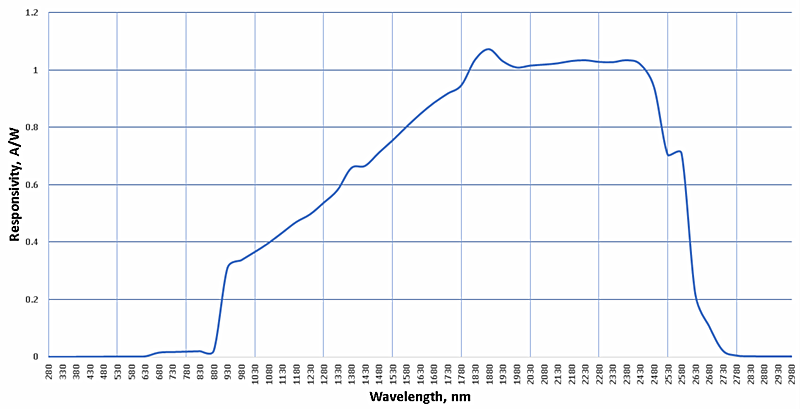

Response spectrum

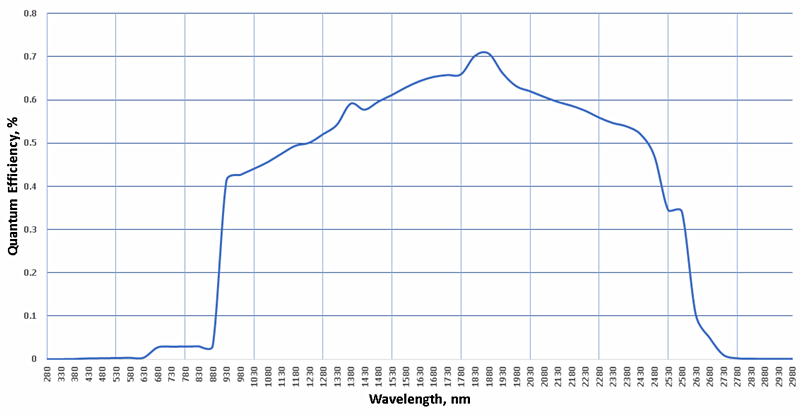

Quantum efficiency graph

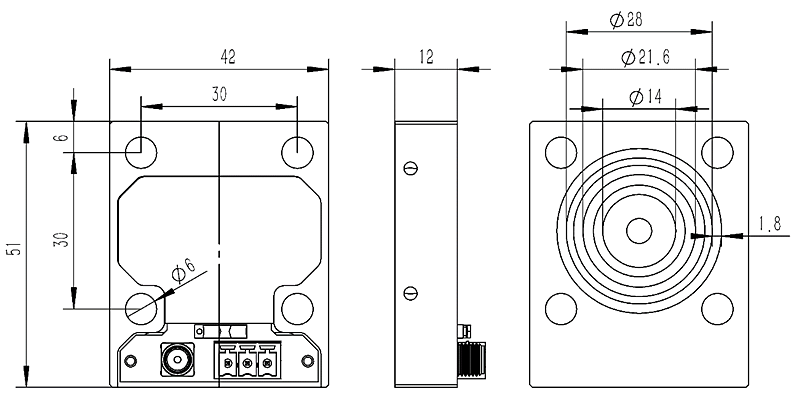

Photodetector C3A-I2600FA Dimensional drawing

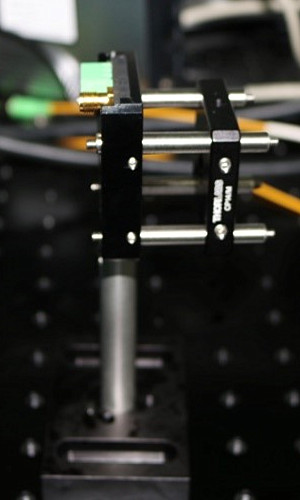

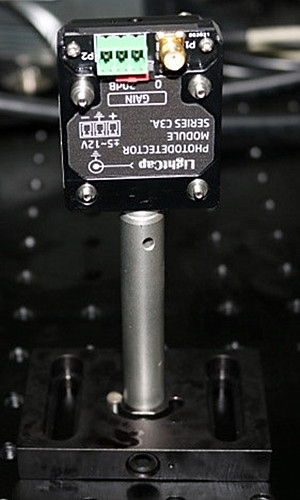

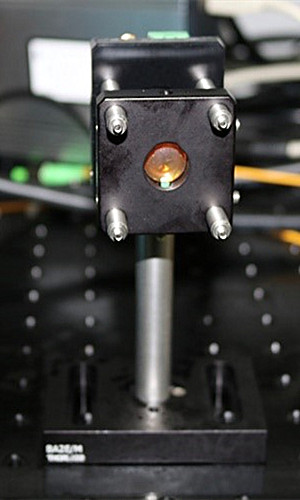

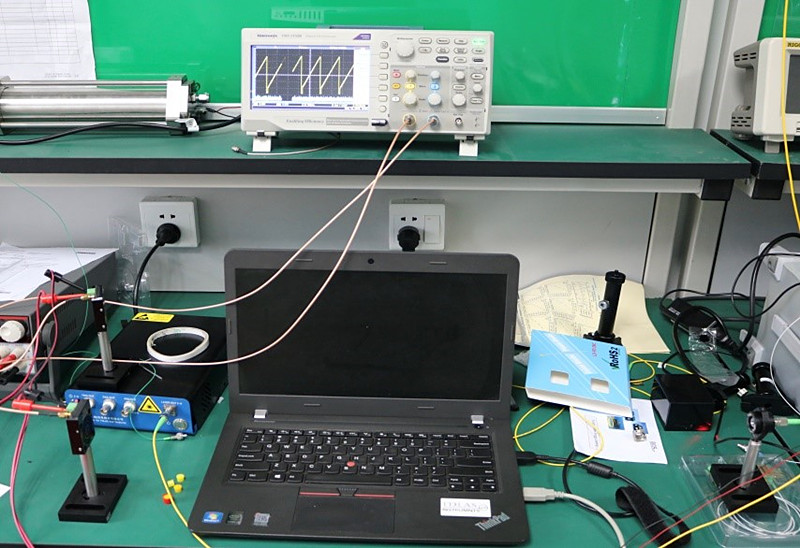

Installation Example

Recommended mounting hole diameter:

Use the two guide rails to precisely position the sensor. Use four M6 screws to secure the position.
