SOA nonlinear semiconductor optical amplifier (used as nanosecond ultrafast optical switch) 1550nm 14dBm (25mw)

It is a polarization-insensitive optical amplifier with advanced epitaxial wafer growth and optoelectronic packaging technology to achieve high output saturated power, low noise figure and large gain over a wide spectral bandwidth.

Product features：Broadband optical、 High output power、 Low polarization sensitivity、 Multiple quantum well or bulk structures

Application area：Boosting optical amplifiers、 Telecommunications and data communications、 Loss compensation

Unit Price

Please contact customer service for a discounted quote.

Part Number

OS-SOA-A-A81-W1550-SASA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Electrical/Optical Characteristics (Tsub=25 ℃ , CW)

Parameter	symbol	OS-SOA-A-A81-W1550-SASA
		Min.	Typical	Max.
Operating Current	IOP	-	450 mA	500 mA
Operating Wavelength Range		1528 nm	-	1562 nm
Center Wavelength	λC	-	1550	-

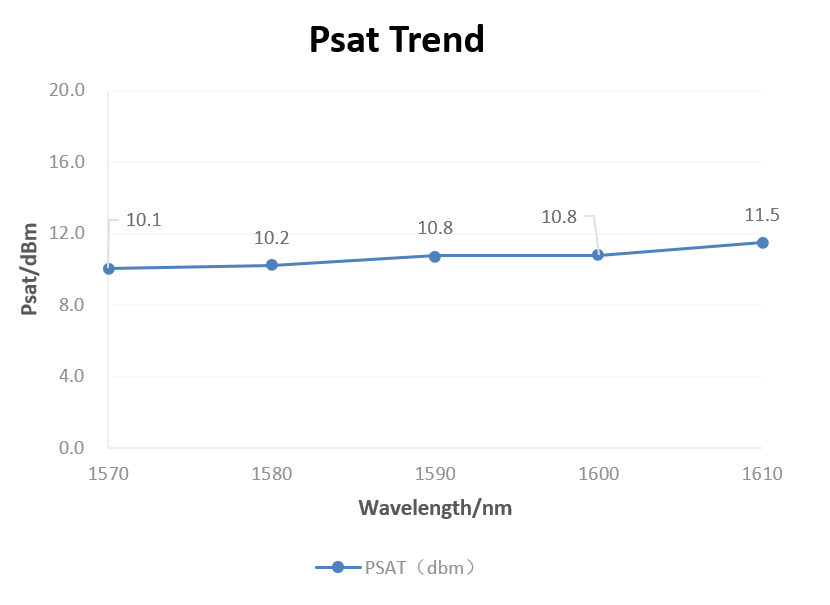

Saturated Output Power (@ -3 dB)	PSAT	12 dBm	14 dBm	-

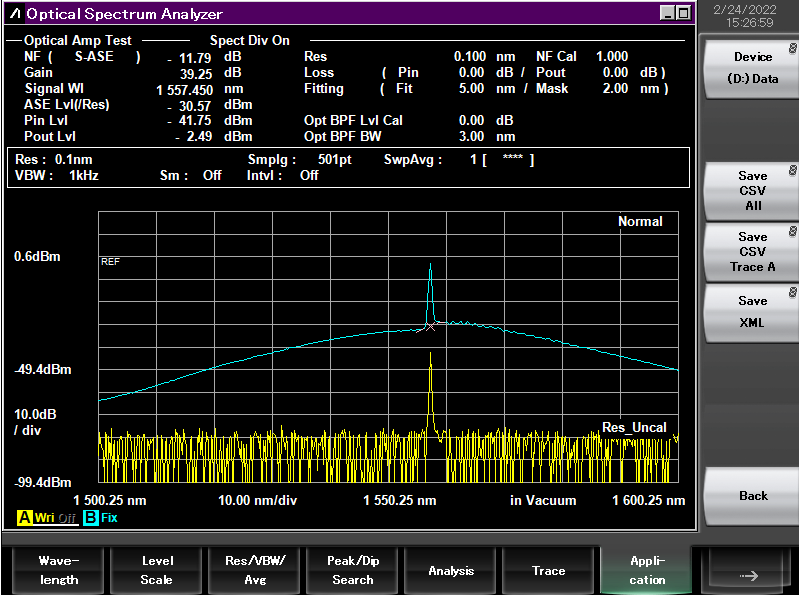

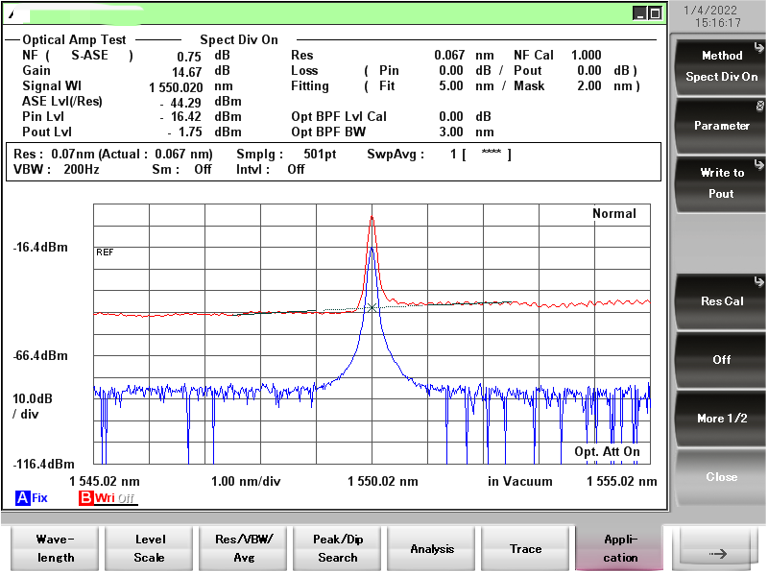

Small Signal Gain (Over C-Band @ Pin = -20 dBm)	G	10 dB	13 dB	-
Gain Flatness (Over C-Band @ Pin = -20 dBm)	ΔG	-	5 dB	7 dB
Gain Ripple (p-p) @ IOP, λC	δG	-	0.1 dB	0.5 dB
Polarization Dependent Gain	PDG	-	1.0 dB	1.8 dB
Noise Figure	NF	-	8 dB	9.5 dB
Forward Voltage	VF	-	1.6 V	1.8 V
Chip Length	-	-	1.5 mm	-
Waveguide Refractive Index	-	-	3.2	-
TEC Operation (Typical/Maximum @ TCASE = 25/70℃)
TEC Current	ITEC	-	0.23 A	1.5 A
TEC Voltage	VTEC	-	0.5 V	4.0 V
Thermistor	RTH	-	10 kΩ	-

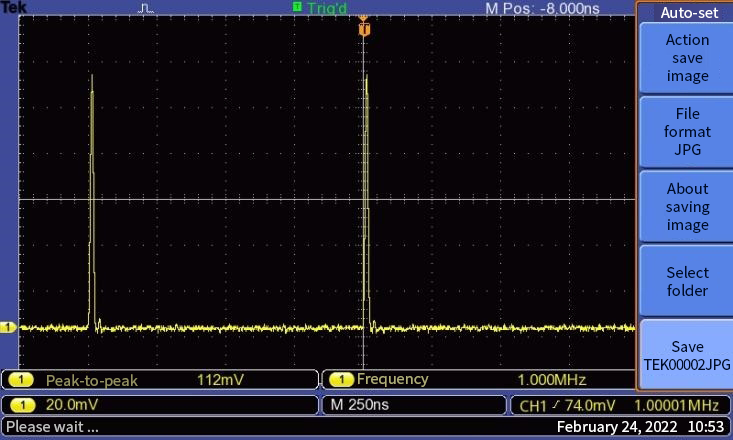

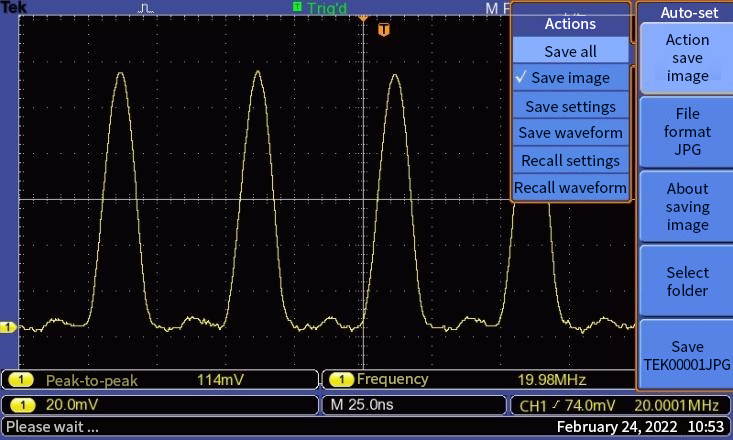

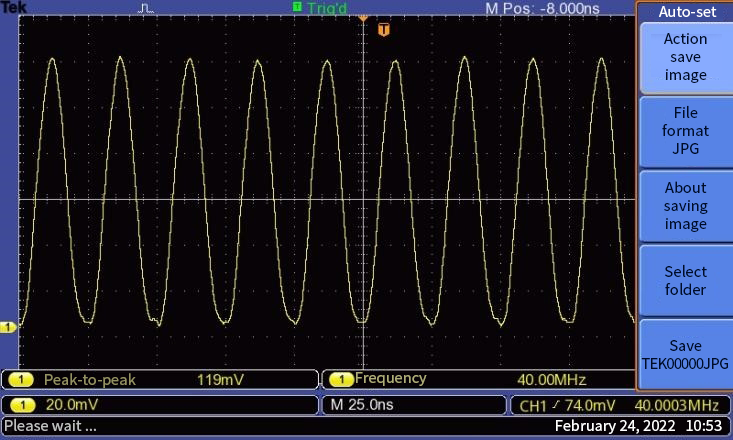

Optical Switch Characteristics Rise Time	ps	-	1000	-
Optical Switch Characteristics Fall Time	ps	-	1000	-
