SM450 Short-Wavelength Single-Mode RGB Fiber

Single Mode Fiber (SMF) refers to an optical fiber that supports only one transmission mode at a specific wavelength (with two degenerate polarization modes allowed). Single mode fibers typically have a core diameter in the range of 10 microns, with a very small refractive index difference between the core and cladding (<1%). Due to the characteristics of single-mode fibers, such as long transmission distance, high bandwidth, low transmission loss, no intermodal dispersion, and strong reliability, they can be used in outdoor long-distance data transmission, fiber optic communications, fiber optic sensing, and other fields. SM450 fiber, when fused with a coupler, has a very low splice loss and is suitable for device connector manufacturing.

Product features：Excellent consistency and uniformity 、Extremely strong mechanical stability and reliability 、Excellent geometric control 、High core refractive index 、High coupling efficiency 、High numerical aperture

Application area：Low-loss tapered splitters 、Optical fiber couplers and DWDM (Dense Wavelength Division Multiplexing) devices 、Short-wavelength lasers and LED light sources 、Sensors and gyroscope specifications

Unit Price

Please contact customer service for a discounted quote.

Part Number

SM450

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameters

SM450 short wavelength SM RGB Fiber

Operating wavelength range	488-633nm
Core numerical aperture	0. 14
Mode field diameter	4. 0um @ 488nm
Cutoff wavelength	400±nm
Core attenuation	50db/ km @ 488 nm
Cladding diameter	125 ±0. 5μm
Core diameter	2. 8-4. 1um
Coating diameter	245 ±10μm
Core/cladding offset	≤0. 3μm
Operating temperature range	-60 to 85°C
Strength test level	100kpi or 200kpi
Bend loss	< 0. 05(dB/ turn) (20 mm O. D.; 850 nm)
Core refractive index	1. 463 @ 651 nm
Standard length	50 m, 100m, 1 km, 2, km, 5 km
Dispersion	-132(ps/ nm/ km) @780 nm -99(ps/ nm/ km) @850 nm

SM600 630nm SM Fiber SMF

Operating wavelength range	>520nm
Core numerical aperture	0. 13
Mode field diameter	4.0 ± 0.4um @630nm 3.5 ± 0.5um @ 532nm
Cutoff wavelength	570±50nm
Core attenuation	8db/km @ 532nm 6db/km @630 nm
Cladding diameter	125 ±0. 5μm
Core diameter	4.0um
Coating diameter	245 ±10μm
Core/cladding offset	≤0. 3μm
Operating temperature range	-60 to 85°C
Strength test level	100kpi or 200kpi
Bend loss	< 0. 05(dB/ turn) (20 mm O. D.; 850 nm)
Core refractive index	1. 463 @ 651 nm
Standard length	500m, 1 km, 2, km, 5 km
Dispersion	-160(ps/nm/km) @532nm -135(ps/nm/km) @633nm

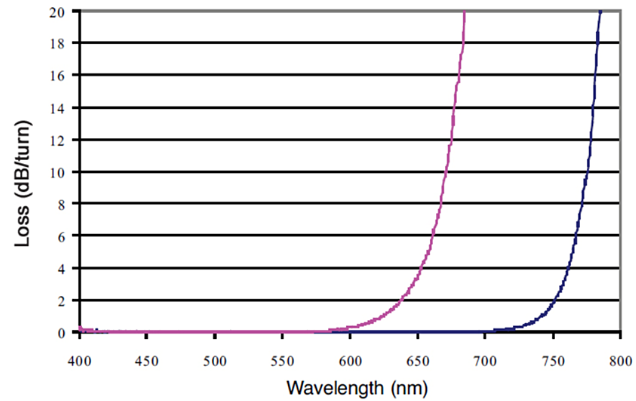

Bending test curve

SM600 fiber bend loss at 20 mm(Blue curve) and 50 mm diameters（Pink curve）

Ordering info

PN#: SM450

Product Description:

Operating Wavelength Range: 488 - 633nm

Cutoff Wavelength: 350 - 470nm

Numerical Aperture: 0.10 - 0.13

Mode Field Diameter: 3.0 - 4.1μm @488nm

Attenuation: ≤50 dB/km @488nm
