Thermal Diffusion Expansion Fiber Core Custom Processing, Core Diameter 20um

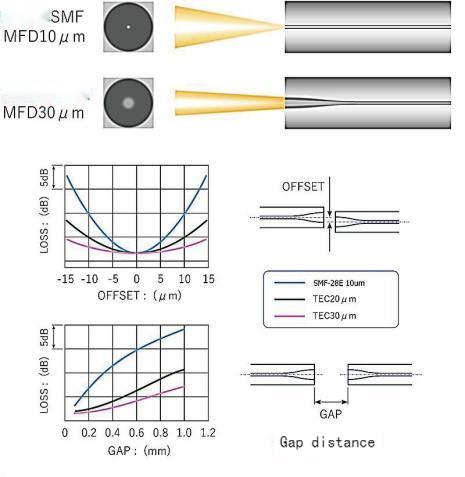

NIR-TEC-30-9-SA TEC (Thermally-diffused Expanded Core Fiber) fiber technology, with the mode field diameter at the end of the thermally-expanded fiber core. This can be used in commercial SI-SMF (Single-Mode Fiber). The mode field diameter increases by one or three times at the fiber end, altering the refractive index distribution and reducing the numerical aperture. The larger the axial and gap displacement tolerances, the smaller the coupling loss. Small variations in cladding diameter can be compensated by inserting a metal sleeve and installing a connector (as shown in the figure below).

Product features：High optical surface quality、 High control precision、 Low insertion loss

Application area：Silicon photonics integration technology、 Optical waveguide coupling、 Optical equipment manufacturing、 Testing tools

Unit Price

Please contact customer service for a discounted quote.

Part Number

NIR-TEC-20-9-SA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Product structure


Ordering info

NIR-TEC- ☆ - △ -XX
☆: Thermally Diffused Expanded Core Fiber
30: 30um
20: 20um
△: Loose Tube
B: Bare Fiber
9: 900um Loose Tube
20: 2mm Loose Tube
30: 2mm Loose Tube
XX: Fiber and Connector Type
SA=SMF-28E+ FC/APC
SP=SMF-28E+ FC/PC
PA=PMFiber+ FC/APC
PP=PMFiber+ FC/PC
