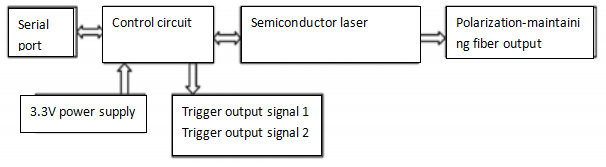

Internal structure of the module
Parameter
PN# | GC-76000C | GC-76001C |
Wavelength range | 1528.8 -1563.8 nm | 1528 - 1568 nm |
Output power | 20 mW | |
Minimum resolution | 0.1 GHz or 1 pm | |
Absolute wavelength accuracy | +/-10 pm Typ < 5 pm | |
Relative wavelength accuracy | +/-5 pm Typ +/- 2 pm | |
Wavelength repeatability | +/-2 pm Typ +/-1 pm | |
Wavelength stability( -5 to +65 ℃) | < +/- 2 pm | |
Scan speed | 1.2 Second for 4000 Points (C-Band) | |
Default scan step | 1 GHz or 0.5 GHz | |
Power stability | +/- 0.05 dB | |
Power vs wavelength flatness | < 0.5 dB | |
Side mode suppression ratio | > 40 dB | |
Relative intensity noise | < -135 dB/Hz | |
Power supply | +3.3 V/3 A | |
linewidth | < 5 MHz, Typ 1 MHz | |
Trigger signal output level | TTL | |
Communication interface | RS232 | |
Communication protocol | OIF-ITLA-MSA-1.2 | |
Dimension | 120mm x 80mm x 32mm | |
Optical interface | FC/UPC or customer defined | |
Temperature range | 0-60 ℃ |

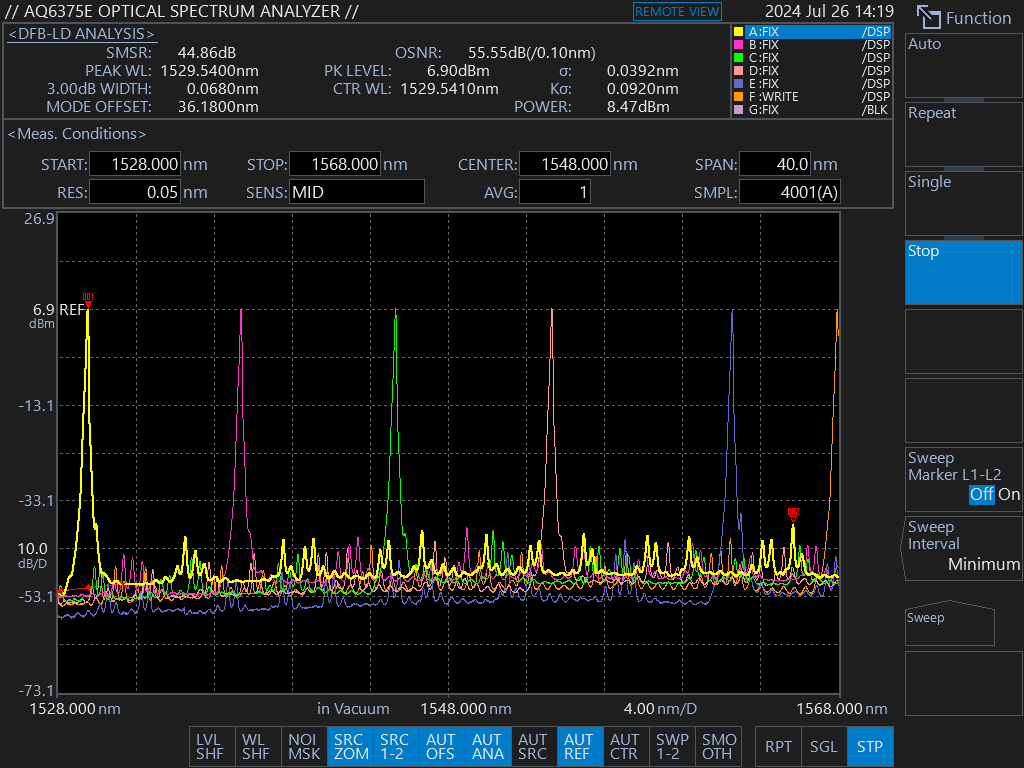

Spectral analysis test chart
Electrical characteristics:

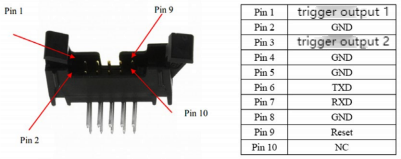

Signal socket link (3M 155210-5303-RB)

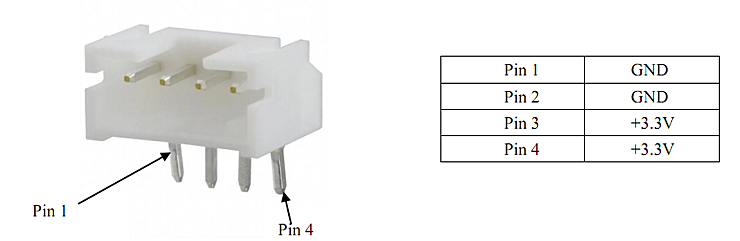

Power socket link (S4B-PH-K-S) (SN)

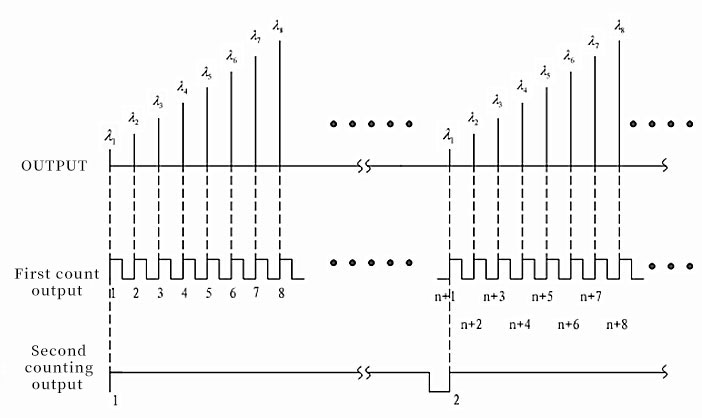

Signal timing diagram
As shown in the figure, when the laser outputs at each wavelength, there is a synchronous rising edge output in the trigger output signal 1, and at the beginning of the first wavelength of each cycle, there is a synchronous rising edge output in the trigger output signal 2. In this way, the receiving end starts the counter at the rising edge of the trigger output signal 2, and counts the number of trigger output signals 1. The wavelength information can be easily obtained based on the starting wavelength and step information, which is convenient and accurate.
