Microstructured Multi-core Sensing Fiber (Hydrogen Corrosion Resistant, Pure Quartz, Mode Field Diameter @ 1550nm: 3µm)

Compared to conventional step-index optical fibers, specially designed microstructured optical fibers offer ultra-low loss, improved optical modes, hydrogen corrosion resistance, and a single-material composition (pure silica, without doping). These superior characteristics significantly enhance the sensitivity of distributed optical fiber sensing systems, system stability, spatial measurement accuracy, and fiber lifespan. The fiber structure and parameters can be customized for production.

Product features：High-temperature resistance、 Durability, high bending strength, and sealing performance、 Enables the welding of embedded optical fibers, fiber bundles, and pigtails into high-vacuum environments

Application area：High-temperature environments、 Harsh chemical environments、 Nuclear radiation environments、 High-power laser transmission、 Medical applications、 Optical fiber bundle welding

Unit Price

Please contact customer service for a discounted quote.

Part Number

MC1550

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Specs

Optical Performance:

Parameter	Attribute
Fiber core material	High purity silica
Mode field diameter	@1310 nm 2.8 ± 0.5 µm @1550 nm 3 ± 0.5 µm
Attenuation coefficient	@1310 nm 1 - 2 dB/km @1550 nm 1 - 2 dB/km

Geometrical parameter

Delivery length	1 - 30 km
Cladding diameter	150 ± 1 µm
Coating layer diameter	180 ± 5 µm
Concentricity of core cladding layer	≤3 µm
Cladding non-circularity	≤0.5
Coating material	poly
Long term use temperature	-55 - 300 ℃
Short term temperature tolerance	400 ℃
Filter intensity	100 kpsi

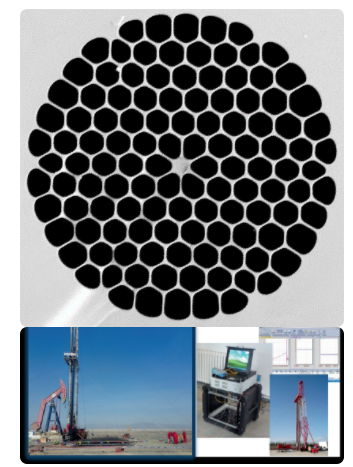

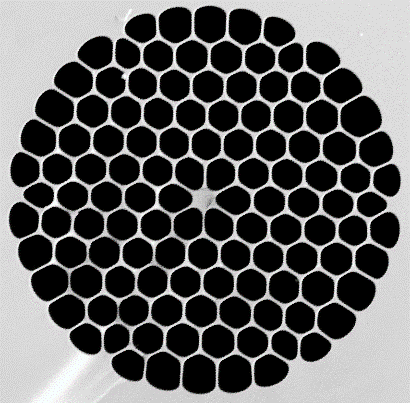

Structure

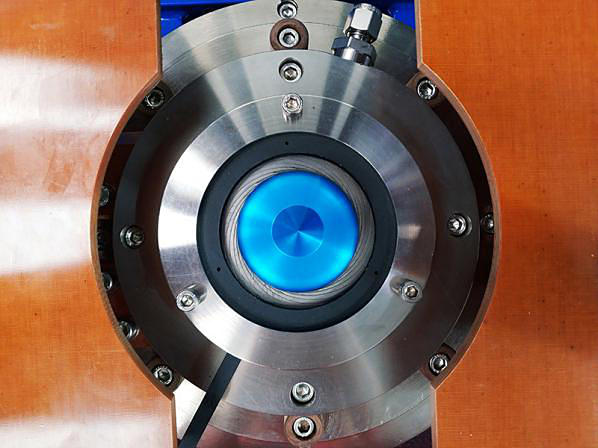

Manufacturing Platform

Ordering info

PN#MC1550 Optical Fiber - Microstructured Multi-Core Sensing Optical Fiber
