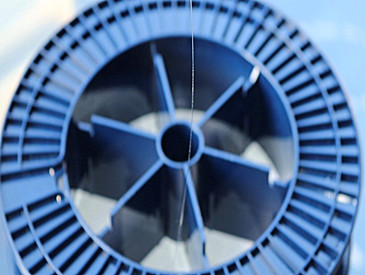

900um large core energy transmission optical fiber

We are currently able to provide international commercial-level quartz energy optical fibers in batches. Our energy optical fibers include two categories: quartz cladding type high-performance energy optical fibers and plastic cladding type high-performance energy optical fibers. Quartz cladding type energy optical fibers can transmit higher laser power, have good resistance to optical damage, as well as lower attenuation and higher light transmittance (from near ultraviolet band to near infrared band 400nm ~ 1600nm).

Product features：High laser power transmission capability、 Large core diameter、 Good flexibility and high strength、 Made of synthetic high-purity quartz material, with low transmission loss, high transmittance and other excellent properties、 Can be processed into various end face shapes

Application area：Laser transmission, laser coupling, laser welding、 laser cutting, laser medical treatment, spectrum detection、 lighting, sensors and other high power transmission fields

Unit Price

Please contact customer service for a discounted quote.

Part Number

PDF-900/990

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

Large core power transmission fiber
Fiber PN#	PDF-100/140	PDF-105/125	PDF-200/230	PDF-400/440	PDF-600/660	PDF-900/990
Core diameter(μm)±2%	100	105	200	400	600	900
Clad diameter(μm)±2%	140	125	230	440	660	990
Coating diameter(μm)±3%	245	245	380	535	850	1370
Core-clad concentricity um	≤3	≤3	≤3	≤3	≤3	≤3
Core non-circularity	≤3	≤3	≤3	≤3	≤3	≤3
Cladding non-circularity	≤2	≤2	≤2	≤2	≤2	≤2
Numerical aperture	0.29	0.24	0.22	0.22	0.22	0.22
Attenuation@850nm db/km	≤4.5	≤4.5	≤4.5	≤6	≤6	≤6
@1310nm	≤2	≤2	≤2	≤8	≤8	≤8
Core/cladding material	GEO2/SIO2
