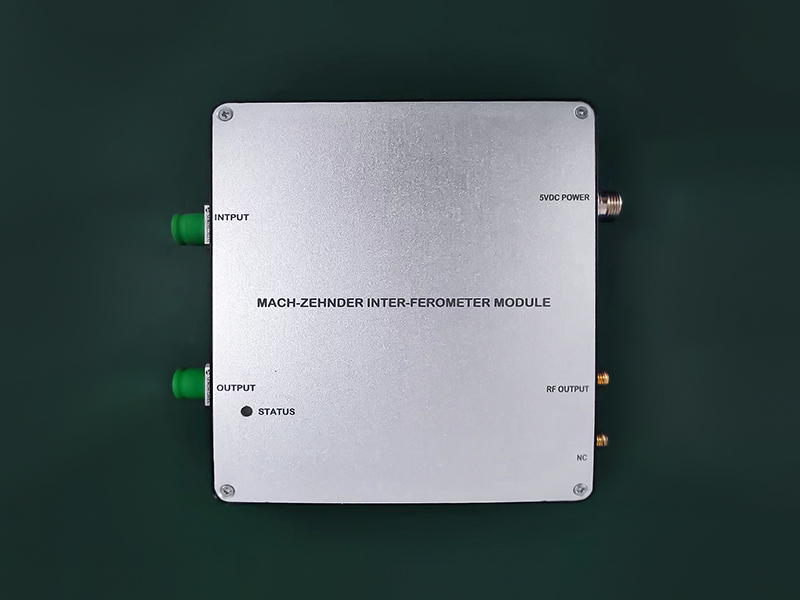

Mach-Zehnder interferometer 1225-1375nm

The OL-MZI series Mach-Zehnder interferometer is used in scanning OCT systems. It contains a fixed-arm difference MZI and a low-noise photoelectric balanced detector. The balanced detector in the module is used to provide the K clock signal. Different wavelengths and different arm differences can be customized according to different customer needs. The module is designed with shock absorption and heat insulation to ensure the stability of the module to the maximum extent.

Product features：Customizable different wavelengths、 Customizable different arm difference MZI、 With balanced detector output、 Shock absorption and heat insulation design、 Compact structure

Application area：Optical coherence tomography、 Other related fields

Unit Price

Please contact customer service for a discounted quote.

Part Number

OL-MZI-1300

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

PN#	OL-MZI-1300
Wavelength	1225-1375nm
Free spectral range MZI output	103.3GHz±5%
MZI two-arm difference	2mm (other arm differences can be customized)
Fiber type	SMF-28 (PM optional)
Fiber interface	FC/APC
Detector type	InGaAs / PIN
Detector wavelength	800 - 1700nm
Balanced detector bandwidth	200MHz
Saturated power	50mW@1300nm
Connector	SMA
Operating voltage/current	5V/0.5A（max）
Dimensions	12010025mm
