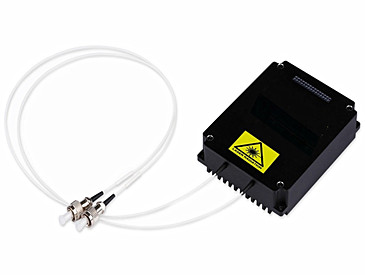

C-band Modular Polarization Maintaining Erbium-doped Fiber Amplifier 23dBm

Idealphotonics' polarization-maintaining EDFA module uses a 980nm pump laser to provide energy, adopts polarization-maintaining passive devices, and has a high output extinction ratio. The product can work in ACC/APC/AGC mode, and uses highly achievable temperature control technology to enable the product to have good thermal performance in a wide temperature range. It has been widely used in fiber optic sensing and fiber optic fields.

Product features：Output power up to 40dBm、 ACC/APC/AGC operation mode、 Low noise index, low power consumption、 High stability, high reliability、 Customization

Application area：Fiber optic sensing、 Polarization-maintaining optical communication system、 Universities, research institutes

Unit Price

Please contact customer service for a discounted quote.

Part Number

PMEDFA-C-B-23-1

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

Parameter	Min.	Typical	Max.
Wavelength (nm)	1528.77	—	1565.05
Pulse width (ns)	—	100	—
Repetition frequency (Hz)	-16	-12	-10
Input average power (dBm)	—	23	23.5
Output average power (dBm)	—	20	23.5
Gain (dB)		—
Gain flatness (dB)		—
Noise figure (dB)	—	≤5.0（P_in=0dBm）	—
Return loss (dB)	≤-45
Operating temperature (℃)	-40	—	65
Storage temperature (℃)	-40	—	85
Supply voltage (V)	4.75	5	5.25
Power consumption (W)	—	—	20
Communication interface	RS232/485
Electrical connector	TEM-115-02-03.0-FG-D-L1
Optical interface type	LC/SC/FC
Pigtail length (cm)	100±2
Dimensions (mm)	90(L) x 70(W) x 25(H)

Technical indicators:

1. Output power is optional;

2. Peak operating wavelength can be specified;

3. Isolation refers to the isolation for ASE light;

4 The output power stability test condition is 25 degrees, after 30 minutes of preheating;

5. Max. power consumption refers to the overall power consumption under extreme working conditions.

Ordering Information

PMEDFA-△-PG-OPP-ISO

△：

C=C band

L=L Band

C+L=C+L Band

PG: package method

B：benchtop M：module

OPP（Output Power）：output power，unit dbm。

E.g. ：16-16dbm，23-23dbm

ISO：

Built-in isolator protection 0-none, 1-pump protection
