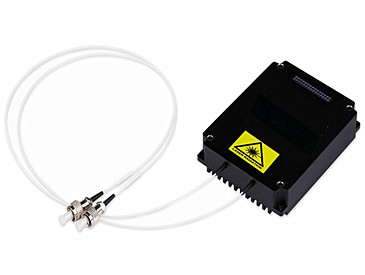

C-band Modular Polarization Maintaining Erbium-doped Fiber Amplifier 30dBm

The high-power Er-Yb co-doped EDFA module uses single-mode lasers and multi-mode pump lasers as energy sources, and performs gain conversion between pump light and signal light through Er-Yb co-doped optical fiber. The maximum output power can reach 40dBm. It has been widely used in cable TV systems and FTTH. The product can work in ACC/APC/AGC mode and adopts highly achievable temperature control technology, so that the product has good thermal performance in a wide temperature range.

Product features：High output power、 ACC/APC/AGC operation mode、 High stability and reliability、 Customization

Application area：CATV、 FTTH、 Doppler LiDAR system、 Colleges and universities, research institutes

Unit Price

Please contact customer service for a discounted quote.

Part Number

EYDFA-C-M-30-1

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Parameter

Parameter	Min.	Typical	Max.
Wavelength (nm)	1535	1550	1565
Input power (dBm)	-3	—	10
Output power (dBm)	30	—	40
Output power stability (dBm)	±0.1
Gain (dB)	—	40	—
Gain flatness (dB)	—
Noise figure (dB)	≤5.0（P_in=0dBm）
Return loss (dB)	≤-45
Gain slope accuracy (dBm)	0.6	0.8	1
Operating temperature (℃)	-15	—	50
Storage temperature (℃)	-30	—	80
Supply voltage (V)	11.4	12	12.6
Power consumption (W)	—	—	50
Communication interface	RS232/485
Electrical connector	TEM-115-02-03.0-FG-D-L1
Optical interface type	LC/SC/FC
Pigtail length (cm)	100±2
Dimensions (mm)	200(L) x 142(W) x 30(H)

Technical indicators:

1. Output power is optional;

2. Peak operating wavelength can be specified;

3. Isolation refers to the isolation for ASE light;

4 The output power stability test condition is 25 degrees, after 30 minutes of preheating;

5. Max. power consumption refers to the overall power consumption under extreme working conditions.

Ordering Information

EYDFA-△-PG-OPP-ISO

△：

C=C band

L=L Band

C+L=C+L Band

PG: Packaging method

B: benchtop M: Module

OPP (Output Power): Output power, unit is dBm.

E.g. : 30:30dbm 40-40dbm,

ISO:

Built-in isolator protection 0-None, 1-Pump protection
