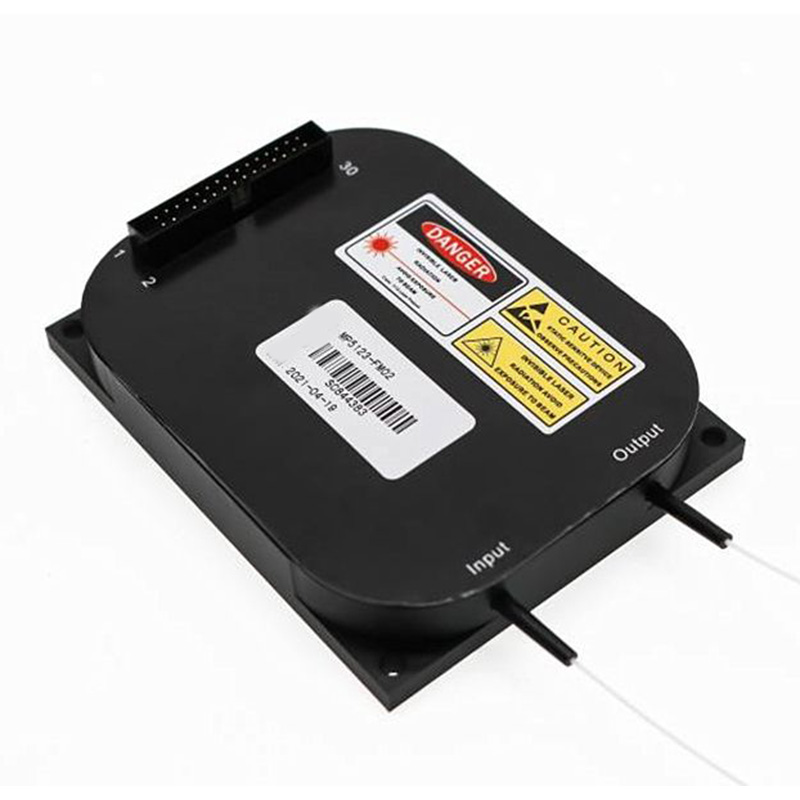

Parameters
Performance | Unit | Min. | Typical | Max. | Note | |
Optical characteristic | Operating wavelength range | nm | 1528 | 1564 | ||
Typical applications | nm | 1540 | 1564 | |||
Input optical power (Pin) | dBm | -10 | 10 | |||
Total output power @Pin=0dBm | dBm | 13 | 24 | |||
Noise figure | dB | 4 | 5 | |||
Polarization dependent gain (PDG) | dB | 0.3 | ||||
Polarization mode dispersion (PMD) | ps | 0.3 | ||||
Polarization dependent loss (PDL) | dB | 0.3 | ||||
Pump power leakage | dB | -30 | ||||
Output/input optical isolation | dB | 30 | ||||
Reflection loss | dB | 45 | UPC | |||
Fiber type | 55 | APC | ||||
Connector | SMF-28,900um loose tube | |||||
Connector polishing | FC | |||||
Performance | APC | |||||
Characteristic | Communication interface | TTL | ||||
Power supply voltage | V | 3.3 | 5 | 5.5 | ||
Power consumption | W | 1 | 2 | Uncooled laser | ||
2 | 10 | Cooled laser | ||||
Operating temperature | ℃ | -5 | 70 | |||
Storage temperature | ℃ | -40 | 85 | |||
Relative humidity | %RH | 5 | 95 | |||
Dimensions (W) x (L) x (H) | mm | 70X90X15 |
Note: Applicable to working at 20℃ -30℃.
Electrical interface definition
Pin | definition | Pin | definition |
1 | +5.0 | 2 | +5.0 |
3 | / | 4 | / |
5 | GND | 6 | GND |
7 | TTL receive | 8 | TTL launch |
9 | GND | 10 | GND |
11 | / | 12 | / |
13 | Amplifier switch (enable) input, low level enables | 14 | / |
15 | / | 16 | / |
17 | / | 18 | / |
19 | 20 | / | |
21 | GND | 22 | GND |
23 | / | 24 | / |
25 | GND | 26 | GND |
27 | / | 28 | / |
29 | +5.0 | 30 | +5.0 |
note:30-Pin type:HIROSE DF11-30DP -2DSA

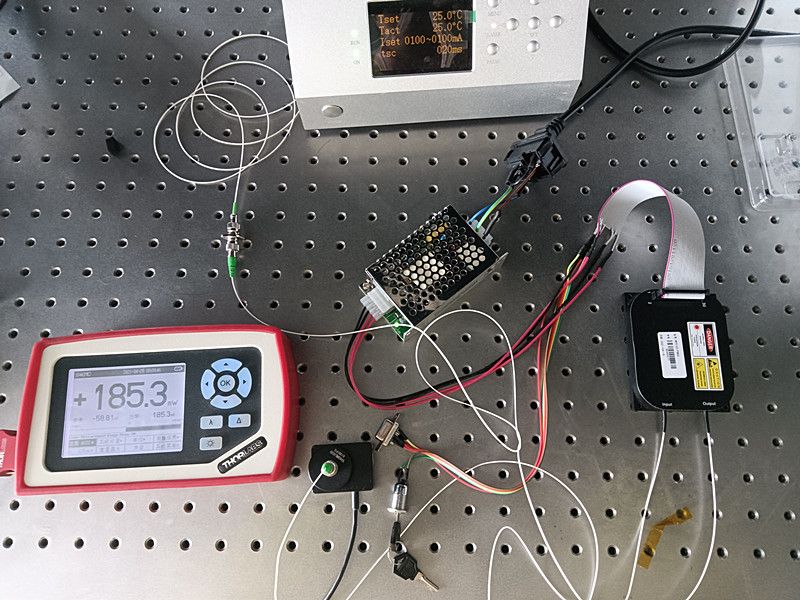

Experimental testing
1. Connect the power supply of the fiber amplifier
2. Use flange to connect the 1550nm laser output fiber and the fiber amplifier input fiber
3. Connect the output fiber of the fiber amplifier to the power meter
4. Turn on the seed source, turn on the key switch of the fiber amplifier, and check the amplified output power
5. Connect the output fiber of the fiber amplifier to the spectrometer and check the amplified spectrum

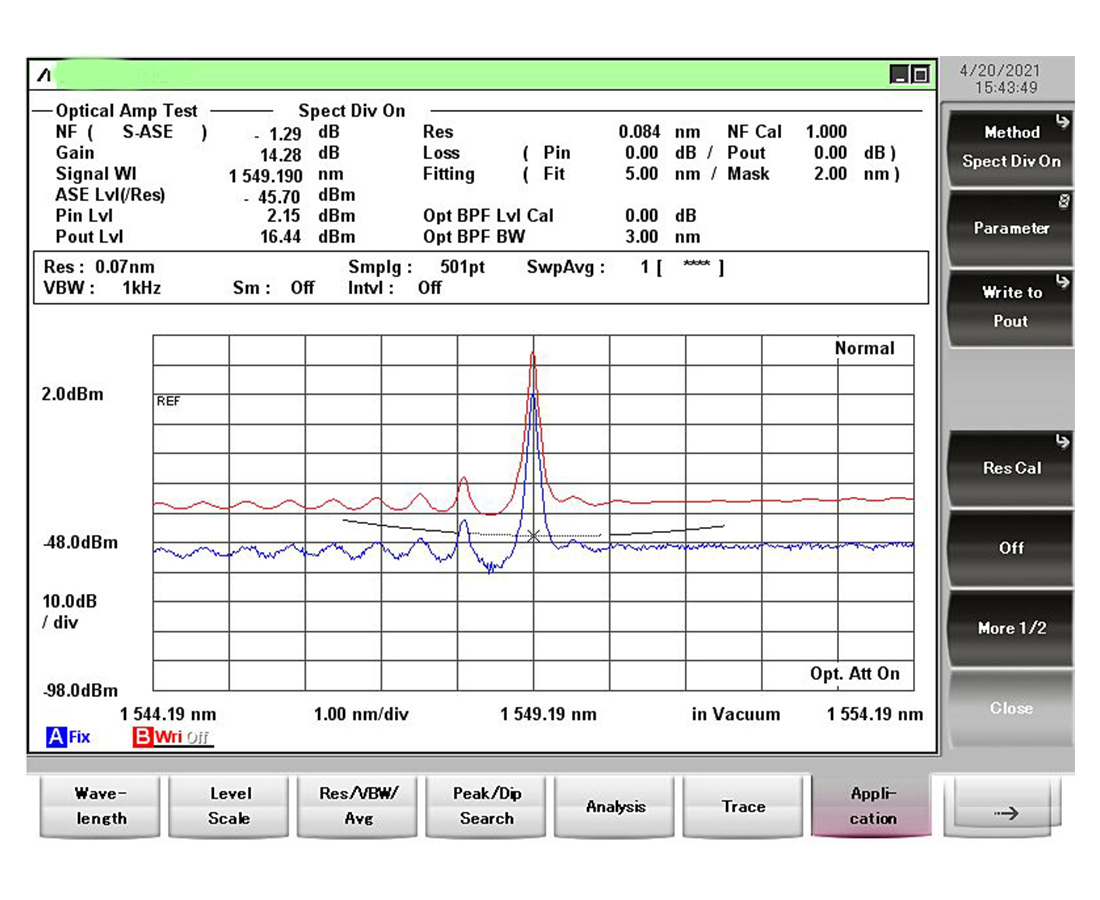

Fiber amplifier spectrum comparison test (blue is the seed source spectrum, red is the spectrum after amplification)
Ordering Information
Model: EDFA-C-M-23-SA
C: Working wavelength range: C band 1528-1564nm
M: Modular design
23:Output power 23dBm
SA: Fiber Optic Types and Connectors:SMF-28+FC/APC
Product range
PN# | Input power range (dBm) | Output power (dBm) (Pin=0dBm) | Noise Figure (dB) |
MP5113-FM02 | -10~+10 | 13 | <4.0 |
MP5114-FM02 | -10~+10 | 14 | <4.0 |
MP5115-FM02 | -10~+10 | 15 | <4.0 |
MP5116-FM02 | -10~+10 | 16 | <4.0 |
MP5117-FM02 | -10~+10 | 17 | <4.0 |
MP5118-FM02 | -10~+10 | 18 | <4.0 |
MP5119-FM02 | -10~+10 | 19 | <4.5 |
MP5120-FM02 | -10~+10 | 20 | <4.5 |
MP5121-FM02 | -10~+10 | 21 | <4.5 |
MP5122-FM02 | -10~+10 | 22 | <5.0 |
MP5123-FM02 | -10~+10 | 23 | <5.0 |
MP5124-FM02 | -10~+10 | 24 | <5.0 |
