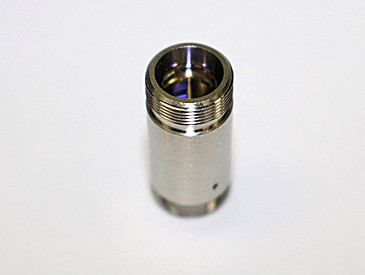

1550nm SMA collimator NA 0.2 focal length 11mm

Idealphotonics' fiber collimators are pre-aligned to collimate light from FC/APC-connected fibers and have diffraction-limited performance. These fiber collimators have no moving parts, are compact, and can be easily integrated into existing devices. Because aspheric lenses produce chromatic aberration, the effective focal length (EFL) is wavelength-dependent. The design wavelength is the wavelength corresponding to the ideal beam divergence. Some collimators at the design wavelength have different collimated beam diameters. When connected to specific single-mode fiber patch cords, they can collimate light at the design wavelength. In addition, the aspheric lenses are anti-reflection coated on both sides to minimize surface reflections (see the AR Coating Curves tab). For some applications, the collimators can also be used for other wavelengths within the AR coating wavelength range. Please refer to the theoretical divergence angle curves for each collimator to determine whether it is suitable for your application. These collimators have a stable operating range from -40°C to 93°C. Please note that these collimators cannot be used in a vacuum. For custom alignment wavelength, operating temperature or vacuum compatibility, please contact us for customization.

Product features：Fiber Collimator with FC/APC Connector (2.2 mm Wide Key) for Single Mode Patch Cables、 Aligned wavelengths from 405 nm to 4.55 µm、 Collimated beam diameters from 0.63 mm to 4.05 mm, depending on wavelength、 Each collimator is factory aligned、 Simplifies fiber-coupled detection systems、 Non-magnetic stainless steel housing compatible with narrow and wide key FC/APC plugs

Application area：Fiber amplifiers、 WDM & DWDM systems、 Fiber optic equipment、 Fiber lasers

Unit Price

Please contact customer service for a discounted quote.

Part Number

NIR-CLM-W1550-N2E11-SA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

General parameters

Parameter	Unit	Value	Note
Focal length Ding wavelength (nm)	nm	1150.00	Other wavelengths can be customized
Insertion loss	dB	≤0.2	1550nm,30mw,DFB
Corrected wavelength (nm):	nm	1550.00	@25 ℃
Corrected wavelength (nm):	nm	1310.00	@25 ℃
Effective aperture CA	mm	5.5	Full temperature：-40-+75℃
Effective focal length EFL	mm	11.0
Shield diameter	mm	11.00
Shield length	mm	17.1
Numerical aperture NA	N/A	0.25	Other fiber types available
Coating:		BBAR (1050-1600nm)
Connector		FC
Return loss (light in/light out)	dB	> 60/55dB
Maximum operating power	W	2
Operating temperature	℃	-5-70℃
Storage temperature	℃	-40-85℃
Substrate	D-ZK3
Refractive index nd:	1.586
Effective focal length/effective aperture diameter ratio		2.00
Wavelength range		1050 - 1600
RoHS:		Comply with standards
Test light source		1550nm Benchtop Light
Package size (mm)		As shown below
