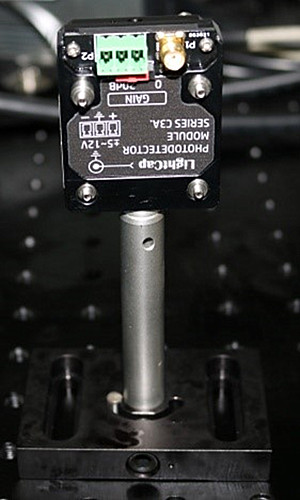

1000-2600nm Extended Large Photosensitive Surface InGaAs Detector

The C3A-2300LAE series photoelectric detection module integrates photodiodes, amplifier circuits and power conditioning circuits in a miniaturized module. It is not only suitable for the construction of various laboratory optical systems, but also suitable for integration in user products. The module is easy to install and can achieve sealing of the optical path. The module can operate with a wide range of positive and negative power supplies. The module contains a linear rectifier circuit to reduce input noise and improve the signal-to-noise ratio. Different types, sizes and speeds of photodiodes are available in the series, such as Si or InGaAs. The typical output characteristics of the module using a 3mm diameter photodiode are ±3V, 0~25MHz (at positive and negative 5V power supplies).

Product features：Compact size、 4 φ6mm through holes for coaxial mounting、 Light-tight and air-tight、 Multiple sensor options、 Switchable 20dB gain、 Wide power input: ±5 to ±20V

Application area：Q-modulated laser monitoring、 Mode-locked laser output monitoring、 Weak visible light detector

Unit Price

Please contact customer service for a discounted quote.

Part Number

C3A-2700LAE

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

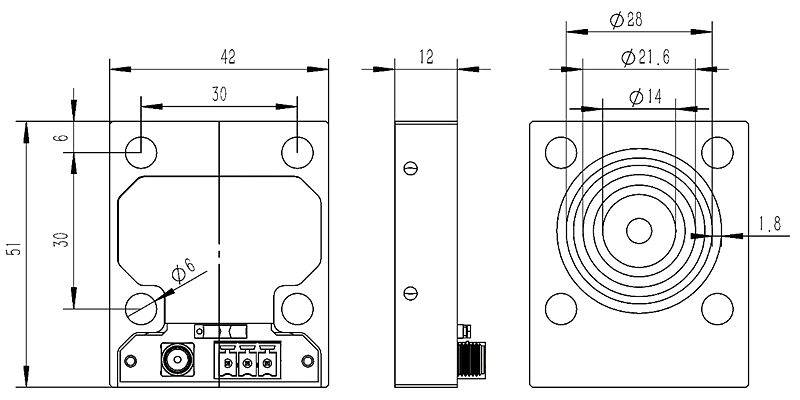

Dimensional Drawing

Photoelectric detector C3A-2700LAE Parameter

Parameter	Value
Photodetector	InGaAS Extended Indium Gallium Arsenide Detector
Photosensitive surface size	Φ2mm
Optical window	Plane borosilicate glass
Response wavelength range	1000-2600nm
Peak wavelength	2000nm
Relative response intensity	75% @1550nm,100@2000nm
Directivity	±40º
NEP	6*10-15 W/Hz^1/2
Operating bandwidth	50MHZ
Transimpedance gain	50kV/A @ 0dB Gain；500kV/A @20dB Gain
Output voltage range	0~+3V (into Hi-Z)；0~+1.5V (into 50Ω)
Output impedance	50Ω
Input operating voltage	V+: +5 ~ +20V；V- : -5 ~ -20V
Operating temperature	10~50 ºC
Maximum pressure difference	±50kPa

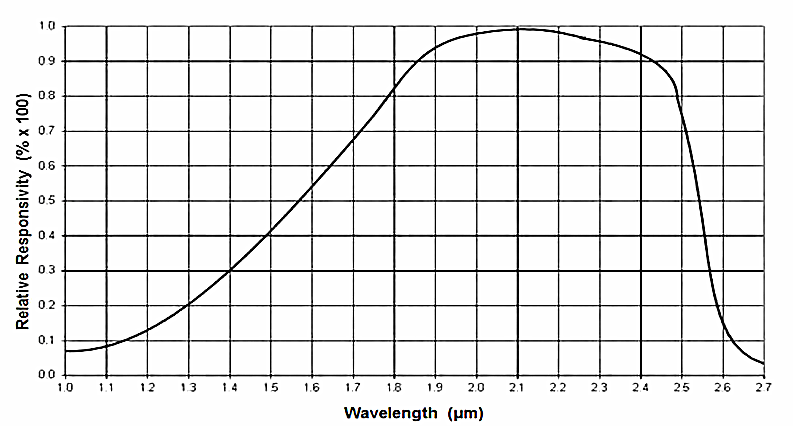

Response spectrum

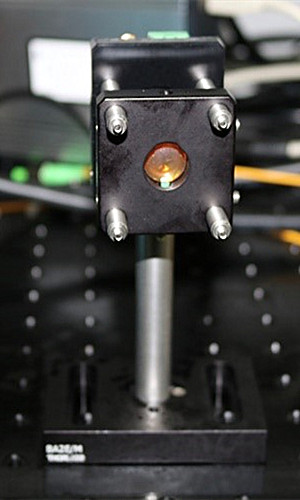

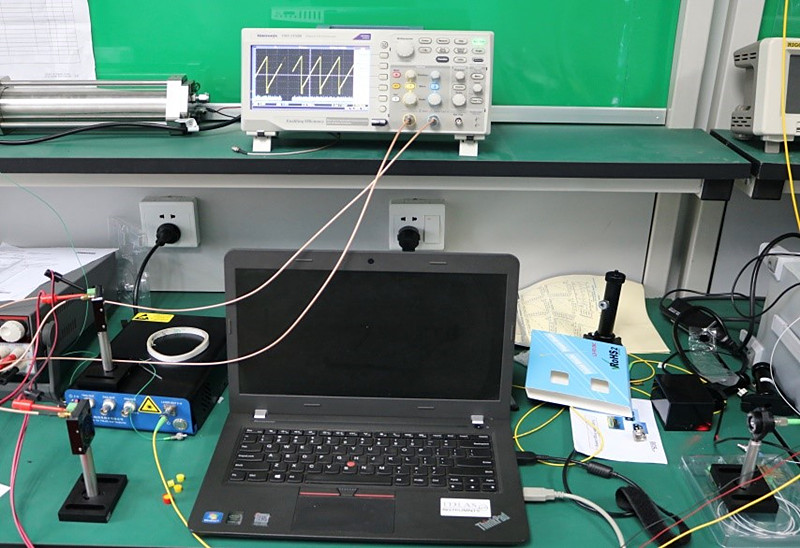

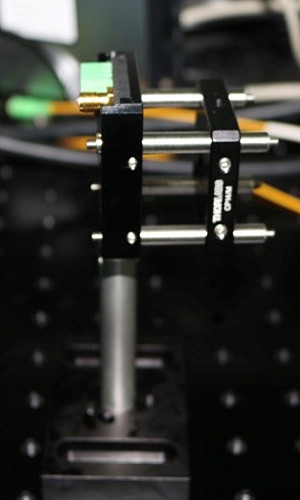

Installation example

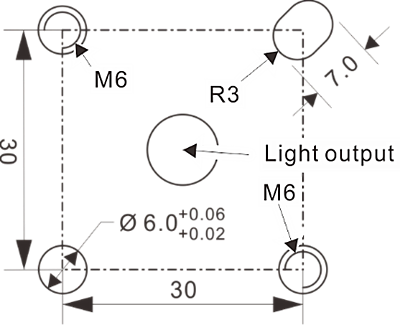

Recommended mounting hole diameter

Use the two guide rails to precisely position the sensor. Secure the position with four M6 screws.

(All dimensions in mm)
