800-2200nm infrared extended InGaAs amplified photodetector, response time constant 35ns
800-2200nm infrared extended InGaAs amplified photodetector, response time constant 35ns
Idealphotonics' infrared extended InGaAs amplified photodetector has a sensitivity range of 800nm~2600nm, 8 levels of adjustable gain, can achieve quantitative photoelectric conversion, and has a wide dynamic range. It is suitable for various optoelectronic development scenarios, has excellent performance, and is cost-effective. It provides all-round technical support and is often used in near- and mid-infrared light measurement.
Product features:The photosensitive range covers 800nm~2600nm, which is often used for near-mid-infrared light measurement、 Amplified detector, 8-level adjustable gain, quantitative photoelectric conversion、 Wide dynamic range, suitable for various infrared photoelectric development scenarios、 Excellent performance, high cost performance, omnidirectional technical support、 Provide non-standard customization services
Application area:Near and mid-infrared light measurement
Unit Price
Please contact customer service for a discounted quote.
Part Number
PDJAA8L10
Lead Time
Please contact customer service for lead time.
Stock
Please contact customer service for stock availability.
Add to Inquiry
Inquire online
General Parameters
Dimensional Drawing

Parameter



Parameters

Value

Wavelength range

800-2600nm

800-2200nm

Response time constant

25ns

35ns

200ns

Gain range

Hi-Z load 1.51kV/A~4.75MV/A;50Ω load 0.75kV/A~2.38MV/A

Signal amplitude

Hi-Z load 0 ~10V;50Ωload 0~5V

Gain adjustment method

Rotary gear adjustment: 0~70dB, 10dB per gear, 8 gears in total. Bandwidth is inversely proportional to gain.

NEP

1.0 × 10-12W/Hz1/2

1.0 × 10-13W/Hz1/2

2.5 × 10-14W/Hz1/2

Photosensitive size

1mm×1mm

1mm×1mm

2mm×2mm

Photosensitive surface depth

0.13"     (3.3  mm)

Detector net weight

0.10kg

Operating temperature

10-40℃

Storage temperature

-20-70℃

Appearance size

2.79" X 2.07" X 0.89"  (70.9  mm X  52.5  mm X  22.5  mm)

Power supply interface

Power switch

Signal interface

Gain Adjustment

Support rod interface

Optical interface

LUMBERG  R

SMV3  FEMA LE

Slide switch

With LED indicator



BNC female socket



8-position knob



M4 ×2

SM1 × 1

SM0.5 × 1




Eight-level quantitatively adjustable gain parameters



0dB

10dB

20dB

30dB

Gain (Hi-Z)

1.51× 103V

/A

Gain (Hi-Z)

4.75× 103V

/A

Gain (Hi-Z)

1.5 × 104V/

A

Gain (Hi-Z)

4.75× 104

V/A

Gain (50Ω)

0.75× 103V

/A

Gain (50Ω)

2.38× 103V

/A

Gain (50Ω)

0.75× 104V

/A

Gain (50Ω)

2.38× 104

V/A

Bandwidth (BW)

13MHz

Bandwidth (BW)

1.7MHz

Bandwidth (BW)

1.1MHz

Bandwidth (BW)

300kHz

Noise (RMS)

≤258uV

Noise (RMS)

≤250uV

Noise (RMS)

≤250uV

Noise (RMS)

≤250uV

40dB

50dB

60dB

70dB

Gain (Hi-Z)

1.51× 105V

/A

Gain (Hi-Z)

4.75× 105V

/A

Gain (Hi-Z)

1.5 × 106V/

A

Gain (Hi-Z)

4.75× 106

V/A

Gain(50Ω)

0.75× 105V

/A

Gain(50Ω)

2.38× 105V

/A

Gain(50Ω)

0.75× 106V

/A

Gain(50Ω)

2.38× 106

V/A

Bandwidth (BW)

90kHz

Bandwidth (BW)

28kHz

Bandwidth (BW)

9kHz

Bandwidth (BW)

3kHz

Noise (RMS)

≤250uV

Noise (RMS)

≤250uV

Noise (RMS)

≤300uV

Noise (RMS)

≤400uV

Signal offset

±8mV(Typ.) , ± 12mV(Max)

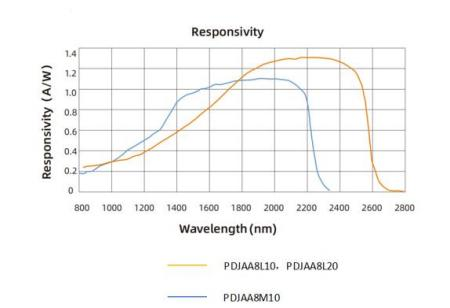

Response Curve

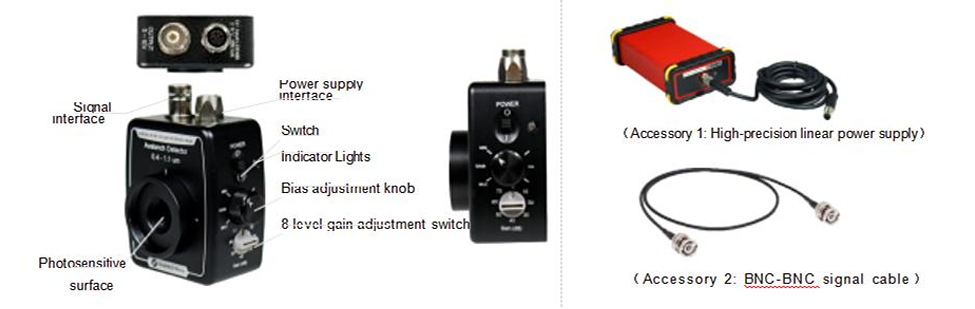

Product Configuration




Appendix 1: Optional Configuration Table



Infrared Extended InGaAs Amplified Photodetector

Optional Configuration

Product Name

Material

Type

Features

Wavelength range Photosensitive size

Reserve optional configuration

PD:  "Photodetectors"

J:InGaAs

A:Amplified

A:Adjustable gain

8M10 800-2600nm 1mm × 1mm






8L10 800-2200nm 1mm× 1mm






8L20 800-2200nm 2mm× 2mm




Appendix 2: Model and Part Number Comparison Table





PN#

Stock#

Specifications

PDJAA8M10

A80153457

800-2600nm infrared extended InGaAs amplified photodetector, photosensitive size 1mm×1mm, 0~70dB eight-level quantitative adjustable gain, response time constant 25ns

PDJAA8L10

A80153458

800-2200nm infrared extended InGaAs amplified photodetector, photosensitive size 1mm×1mm, 0~70dB eight-level quantitative adjustable gain, response time constant 35ns

PDJAA8L20

A80153459

800-2200nm infrared extended InGaAs amplified photodetector, photosensitive size 2mm×2mm, 0~70dB eight-level quantitative adjustable gain, response time constant 200ns
