Capillary Optical Fiber Inner Diameter 75±2µm (Polyimide Coating)
It can be widely used in the fields of sensing, energy transfer, and lasers, such as: vacuum ultraviolet high-energy pulse compression and shaping in vacuum ultraviolet femtosecond laser generation; vacuum ultraviolet dispersion wave generation; soliton blue shift; preparation of extrinsic fiber interferometers; absorption spectrum gas component detection; liquid phase biochemical detection and connection of optical microfluidic chips, etc. Quartz capillaries are widely used in separation science, including hot fields such as gas chromatography, capillary liquid chromatography, and capillary electrophoresis. Since its introduction in the late 1970s, the product quality has been steadily improving. Light-guiding quartz capillary fiber is a new development in this continuous development.
Product features:
Application area:
Unit Price
Please contact customer service for a discounted quote.
Part Number
HCCF_PSC75/125/150PI
Lead Time
Please contact customer service for lead time.
Stock
Please contact customer service for stock availability.
Add to Inquiry
Inquire online
General Parameters
Dimensional Drawing

Features

Pure synthetic fused silica

Smooth inner wall with low resistance, strong internal pressure consistency, and better fluid movement performance. High-purity quartz material has high light transmittance, which is conducive to optical analysis, radiation resistance, and low loss. The material is uniform and easy to cut and fuse optical fiber connectors, and the length can be easily customized;



Complete specifications, strict quality control, stable precision

Using multi-level online measurement, even for a few hundred meters of thin-diameter capillary optical fiber, the inner and outer diameters can be kept stable. It meets all technical requirements for optical fiber and industrial equipment connectors.



Polyimide coating

Advanced polyimide coating material with adjustable coating thickness, low dielectric constant, combustion and gasification characteristics, high strength under radiation, water-free self-lubricating properties, good high temperature resistance (long-term 300℃, short-term 400℃), corrosion resistance, and wear resistance, is an ideal protective coating for capillary optical fibers. It has good biocompatibility and can be widely used in human interventional systems in the medical industry.

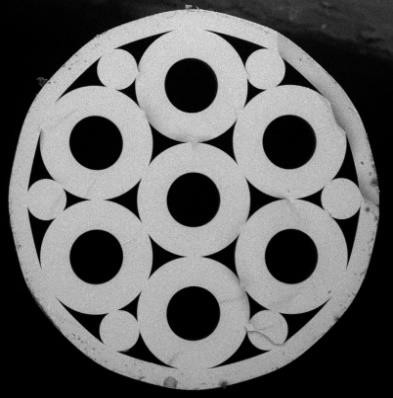

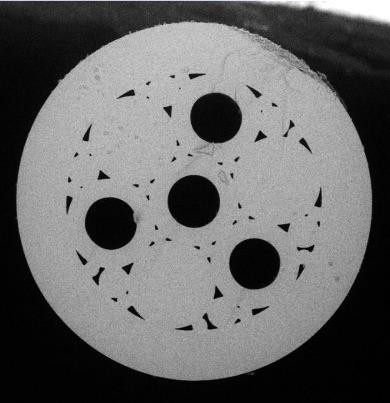

Customized microstructure capillary

The expert team with many years of fiber manufacturing experience can design composite porous capillary structures according to user needs, form multiple channels in a capillary optical fiber, and ensure that it is as smooth as a mirror. We also accept customized services with various inner and outer diameter ratios and sizes.





Applications

Medicine

Precision drug delivery systems

Flow control systems

Clinical and diagnostic equipment

Wearable drug delivery devices



Technology

Chromatography

Micro- and nanofluidics

Mass spectrometry interfaces

Communication system packaging



Industry

Packaging leakage

Evaporative cooling system

Petroleum analysis

Catalysis research

Fiber coupled fan-in fan-out



Optics

Fiber optic sensing

Vacuum ultraviolet femtosecond laser

Vacuum ultraviolet dispersion wave generation

Soliton blue shift

Extrinsic fiber interferometer




General parameters






PN#

Fiber

inner diameter

(μm)

outer diameter(μm)

Coating outer diameter(μm)

HCCF_PSC0.3/125/150PI

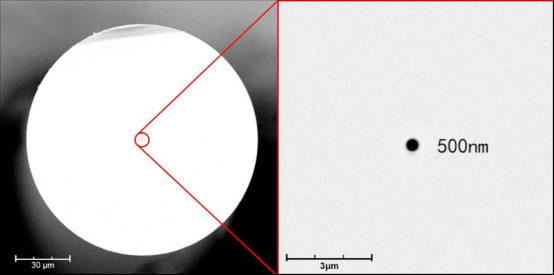

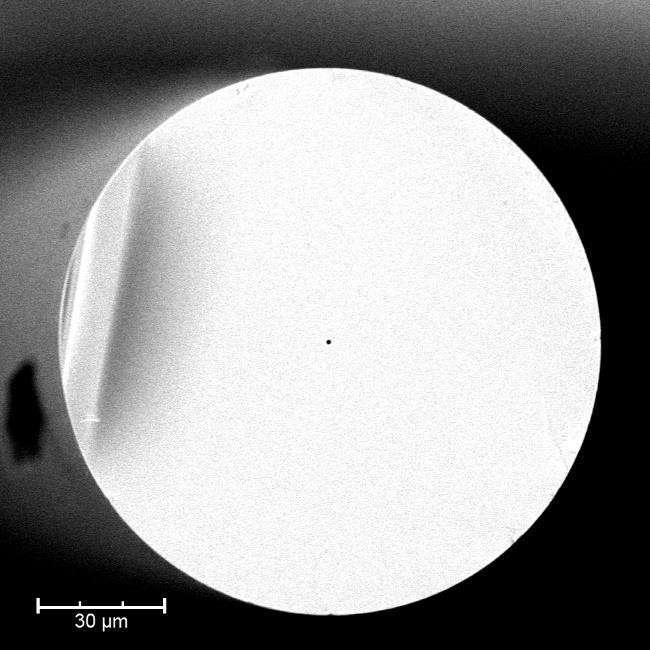

Micro-nano capillary

0.3±0.01

125±1

150±5

HCCF_PSC0.5/125/150PI

0.5±0.01

125±1

150±5

HCCF_PSC2/125/150PI

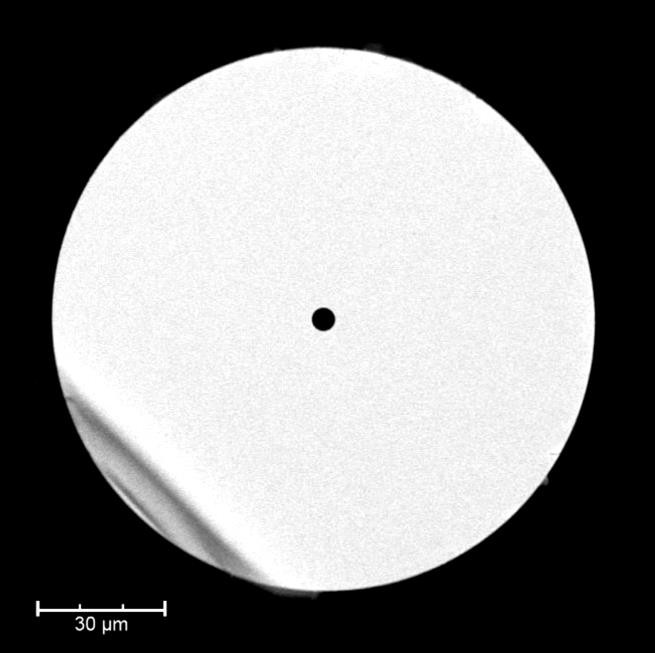

Capillary Fiber

2±0.5

125±1

150±5

HCCF_PSC5/125/150PI

5±1

125±1

150±5

HCCF_PSC10/125/150PI

10±2

125±1

150±5

HCCF_PSC15/125/150PI

15±2

125±1

150±5

HCCF_PSC20/125/150PI

20±2

125±1

150±5

HCCF_PSC25/125/150PI

25±2

125±1

150±5

HCCF_PSC30/125/150PI

30±2

125±1

150±5

HCCF_PSC40/125/150PI

40±2

125±1

150±5

HCCF_PSC50/125/150PI

50±2

125±1

150±5

HCCF_PSC75/125/150PI

75±2

125±1

150±5

HCCF_PSC100/125/150PI

100±2

125±1

150±5

HCCF_PSC100/220/240PI

100±2

220±2

240±5

HCCF_PSC2/340/360PI

2±1

340±2

360±5

HCCF_PSC5/340/360PI

5±1

340±2

360±5

HCCF_PSC6/340/360PI

6±2

340±2

360±5

HCCF_PSC10/340/360PI

10±2

340±2

360±5

HCCF_PSC15/340/360PI

15±2

340±2

360±5

HCCF_PSC20/340/360PI

20±2

340±2

360±5

HCCF_PSC25/340/360PI

25±2

340±2

360±5

HCCF_PSC30/340/360PI

30±2

340±2

360±5

HCCF_PSC40/340/360PI

40±2

340±2

360±5

HCCF_PSC50/340/360PI

50±2

340±2

360±5

HCCF_PSC60/340/360PI

60±2

340±2

360±5

HCCF_PSC75/340/360PI

75±2

340±2

360±5

HCCF_PSC180/340/360PI

180±2

340±2

360±5

HCCF_PSC320/340/360PI

320

410

440

HCCF_PSC450/640/670PI

450

640

670

HCCF_PSC100/760/790PI

100

760

790

HCCF_PSC300/760/790PI

300

760

790

HCCF_PSC200/1800



Quartz capillary

200

1800

None

HCCF_PSC500/1250

500

1250

None

HCCF_PSC700/1750

700

1750

None

Customizable multi-channel capillary optical fiber and capillary products

Customize

20~1500

60~2000

optional
