1550nm single-mode acousto-optic modulator 80MHz
Idealphotonics' acousto-optic modulators are widely used in the field of fiber optic sensing due to their high modulation extinction ratio and high power handling. This product is specially developed for the application needs of fiber optic sensing. It has the advantages of small size, low power consumption (<1W), fast rise time (12ns), good modulated pulse shape (small overshoot), good pulse repeatability (small repetition period jitter), etc. In addition, the modulator and driver can be packaged in an integrated manner, which is convenient for system integration. It can be widely used in various fiber optic sensing systems that require pulse modulation, such as φ-OTDR, BOTDR, OFDR, etc.
Product features:Small size、 Low power consumption (<500mW)、 Fast rise time (12ns)、 Good modulation pulse shape (small overshoot)、 Good pulse repeatability (small repetition period jitter)
Application area:Fiber Optic Sensing、 LiDAR、 BOTDA
Unit Price
Please contact customer service for a discounted quote.
Part Number
AOM80-1550-1-SA
Lead Time
Please contact customer service for lead time.
Stock
Please contact customer service for stock availability.
Add to Inquiry
Inquire online
General Parameters

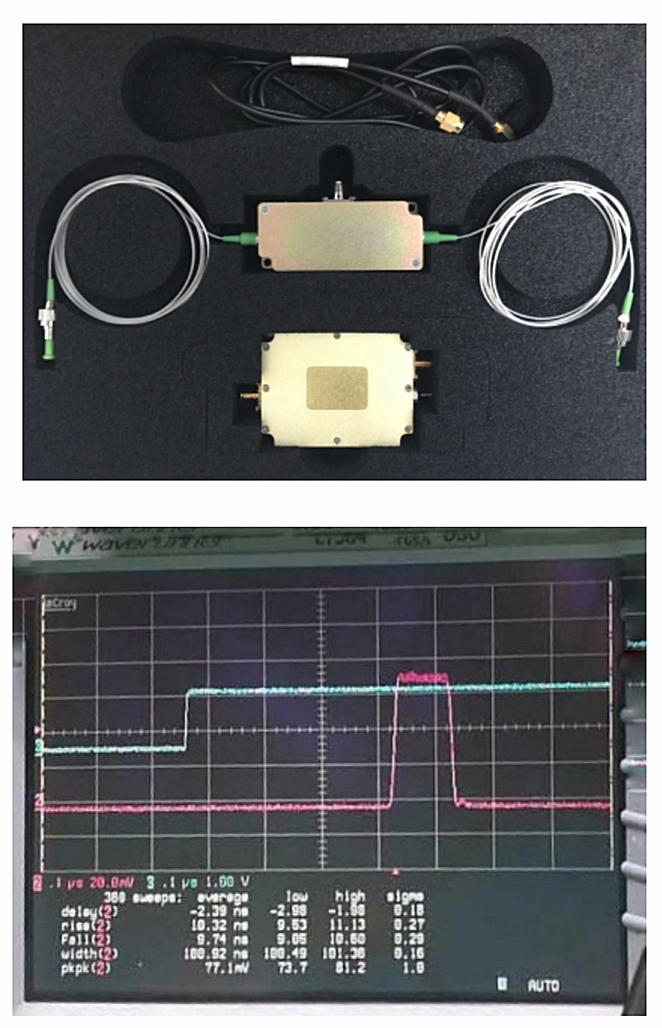

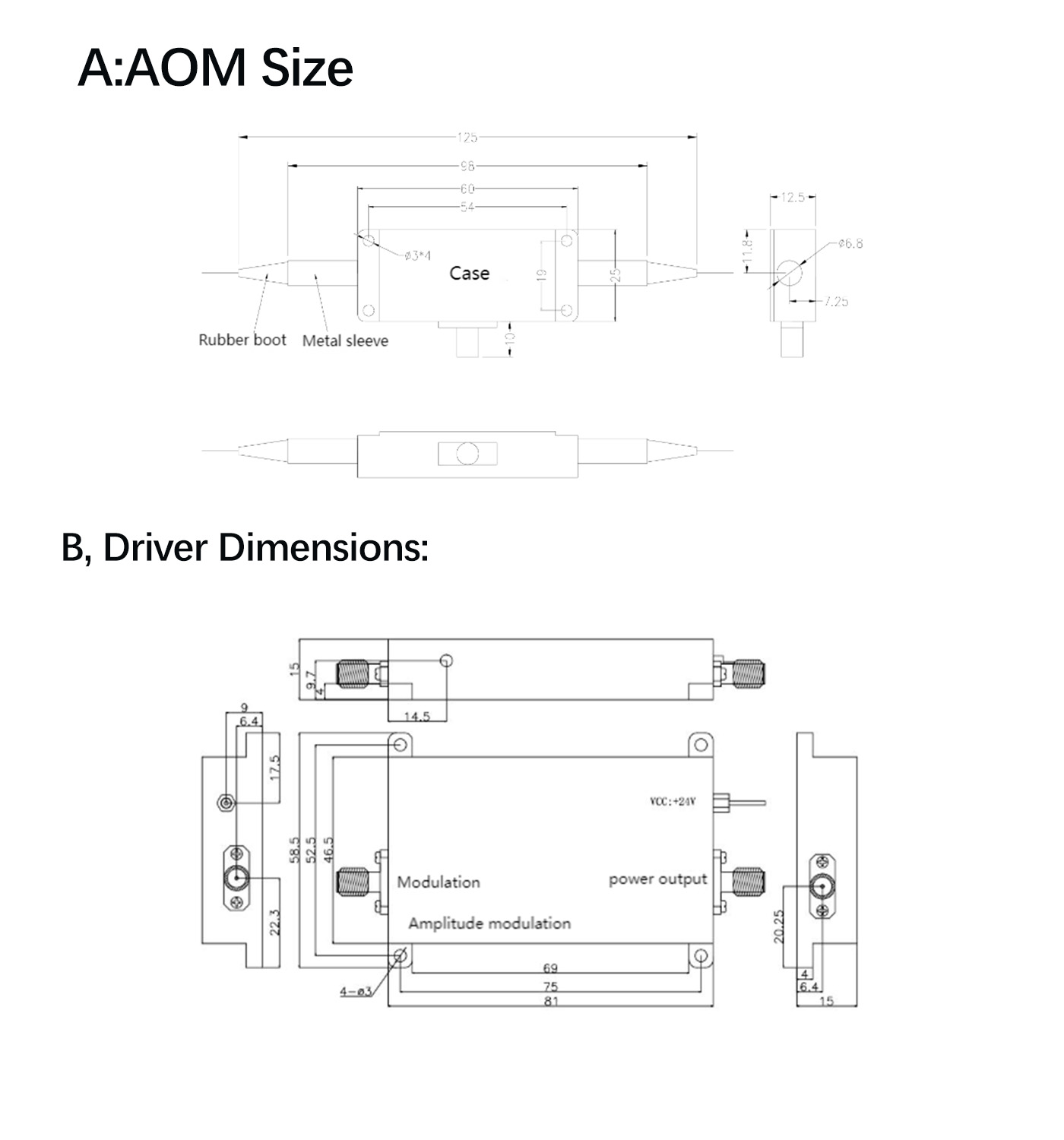

Dimensional Drawing

Specification

General performance parameters

Parameters

Unit

Min.

Max.

convention

Note

Material




TeO2


Wavelength

nm

1520

1580

1550


Average optical power (CW)

W


0.5



Ultrasonic sound velocity

m/s



4200


Insertion loss

dB


2.5



Polarization extinction ratio-

dB

18




Extinction ratio

dB

50




Return loss

dB

40




Rise time

ns


45



Frequency

MHz



80


Frequency shift

MHz



+80


Frequency stability




0. 1%


RF power

W



2.5


VSWR




1.2:1


Input impedance

Ω



50


Device interface




SMA


Fiber type

SM or PM


Fiber length

m



1


Fiber interface




FC/APC


Operating temperature



-20~60


Storage temperature



-30~70





Driver

Parameter

Unit

PN#

D100-02-M-1D

D150-02-M-1D

D200-02-M-1D

Operating frequency

MHz

100

150

200

Drive power

W

≤2.5

≤3

≤3

Electric pulse rise time

ns

≤20

 15

≤7.5

Power switching ratio

dB

≥55

Power supply voltage (DC)

V

24

Harmonic suppression

dBc

≥25

Modulation method

-

TTL

Output impedance

Ω

50

Appearance structure

-

Figure B






General parameters

Modulation curve
