32 Channel Fiber Array
Customized fiber arrays of different fiber types. The fiber types we currently support include single-mode, multi-mode, polarization maintaining. At the same time, we also accept customized fiber arrays with different fiber lengths. Thanks to our many years of processing experience, we can currently provide high-precision fiber grinding and alignment, and we can also glue the fibers together and grind and polish them together. Our high-precision alignment equipment can achieve a polarization-maintaining fiber alignment with an angle deviation better than 0.5deg, and our end-face observer can ensure that the end-face grinding quality meets special application fields, such as interferometers. At the same time, our processing accuracy can reach a spacing as small as 5um. At the same time, we also customize different connectors for different application requirements of customers. Welcome to contact us for processing and customized fiber arrays.
Product features:Supports fiber types SM, MM, PM Fibers、 Any fiber length and spacing、 High precision and high reliability、 Low PDL and low insertion loss、 Compact structure
Application area:Fiber optic sensors、 Optical switches、 Interferometers、 Splitters/combiners、 Integrated devices、 Waveguide coupling devices、 Multiplexers/demultiplexers
Unit Price
Please contact customer service for a discounted quote.
Part Number
FAC - A8-G127-S132-F-1-9-SA
Lead Time
Please contact customer service for lead time.
Stock
Please contact customer service for stock availability.
Add to Inquiry
Inquire online
General Parameters

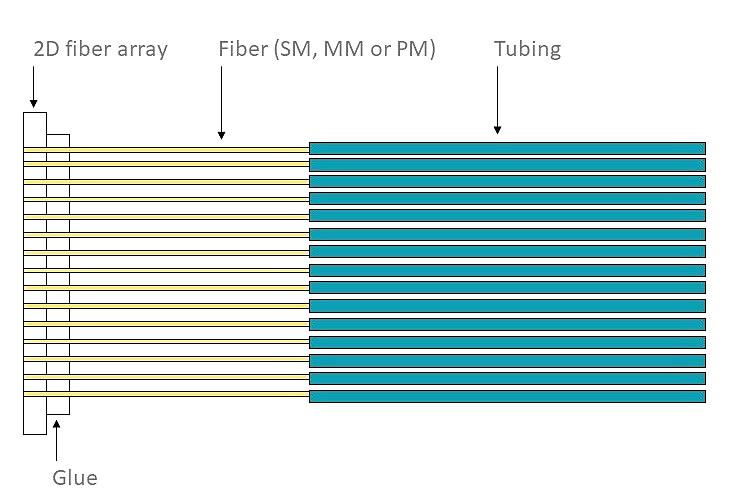

Dimensional Drawing

Main Parameters:

Array size

Customization

Fiber length

From a few centimeters to hundreds of meters

Fiber type

SMF,MMF,PMF or custom

Fiber spacing

Customized according to customer needs

Array position accuracy

+/-  1  um  (  x  and Y  axis)

Grinding angle

 +/-0.5°,8° +/-0.5°, custom

Fiber connector type

FC,LC.SC,SMA ST,MU,E2000,other



Fiber arrays are key components for connecting optical fibers to their waveguides for different applications. We provide unique assembly/cutting/polishing processes to obtain fiber core position accuracy with optimal polishing surface.

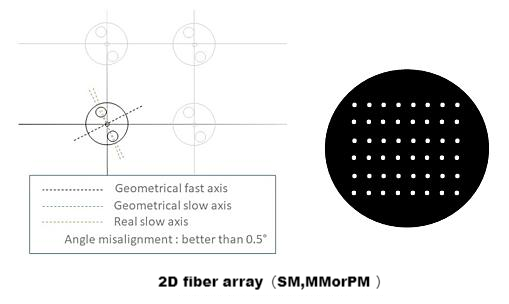

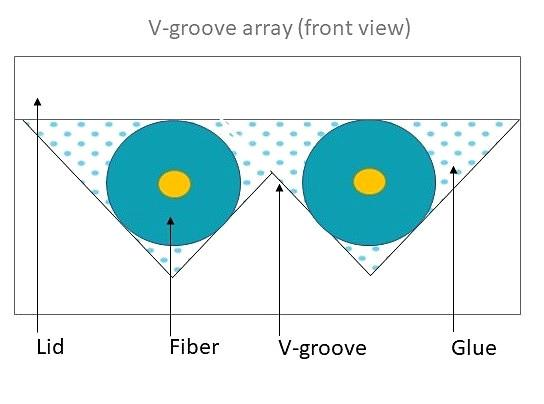

2D Fiber V-Groove Array


Part Number and ordering

Order Info


FAC - A□-G□□□-S○-Material▽-☆-△-XX

A□:Polished Angle

0:0° 8:8°

G□□□:Fiber spacing

1:1mm 2:2mm

S  Fiber Array Structure

12:1x2 22:2x2 65:6x5 56:5x6

Material  :

Q: Quartz S:SiO2

R: Semicircular tube

F: Square tube

  Pigtail Length

05:0.5m

1 1m

10:10m

 Loose Tube

B:Bare Fiber

9:900um Loose Tube

20:2mm Loose Tube

30: 2mm Loose Tube

XX: Fiber and Connector Type

SA =SMF-28E+ FC/APC

SP =SMF-28E+ FC/PC

PA =PM Fiber+ FC/APC

PP =PM Fiber+ FC/PC
