M2x2 Magneto-Optic Switch

The M2x2 optical switch achieves optical path connection by either passing or blocking optical signals. This switch features a non-mechanical configuration and is activated by electrical control signals. It also has built-in circulator and isolator functions. The product is widely used in aerospace and military equipment.

Product features：Solid-state high-speed operation 、High stability and reliability 、No epoxy resin in the optical path 、Fail-safe locking mechanism

Application area：Aerospace equipment 、Configurable for add/drop functionality 、System monitoring 、Sensor systems

Unit Price

Please contact customer service for a discounted quote.

Part Number

YFS-M2x2-B-S-2.5-1550-900-10-FA

Lead Time

Please contact customer service for lead time.

Stock

Please contact customer service for stock availability.

Add to Inquiry

Inquire online

General Parameters

Download Document

Dimensional Drawing

Performance Specifications

Parameter	Unit	Specification
Wavelength Range	nm	1520 ~ 1580
Test Wavelength	nm	1550
Insertion Loss 1, 2	dB	≤ 1.2
TDL	dB	≤ 0.30
PDL	dB	≤ 0.20
Return Loss	dB	≥ 50
Crosstalk	dB	Bi-directional ≥ 20
Crosstalk	dB	Uni-directional ≥ 35
Repeatability	dB	≤ ±0.01
Switching Time	us	≤ 100
Pulse Duration	us	≥ 200
Durability	Cycles	≥10 Billions
Switch Type	NA	Latching
Operating Current	mA	≤ 200
Max Optical Power	mW	≤ 500
Operating Temperature	℃	-5 ~ +70
Storage Temperature	℃	-40 ~ +85
Dimensions	mm	(L)34.0 × (W)7.5 ×(H)7.5 ±0.2
Notes: 1.Tested at room temperature and SOP. 2.Does not include connectors; a pair of connectors has 0.2dB loss.

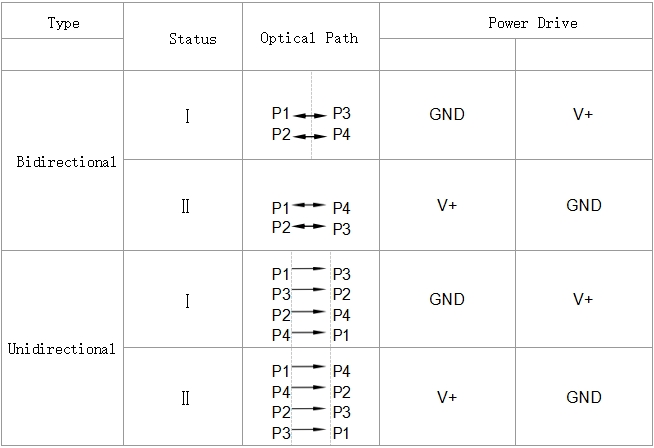

Power Drive

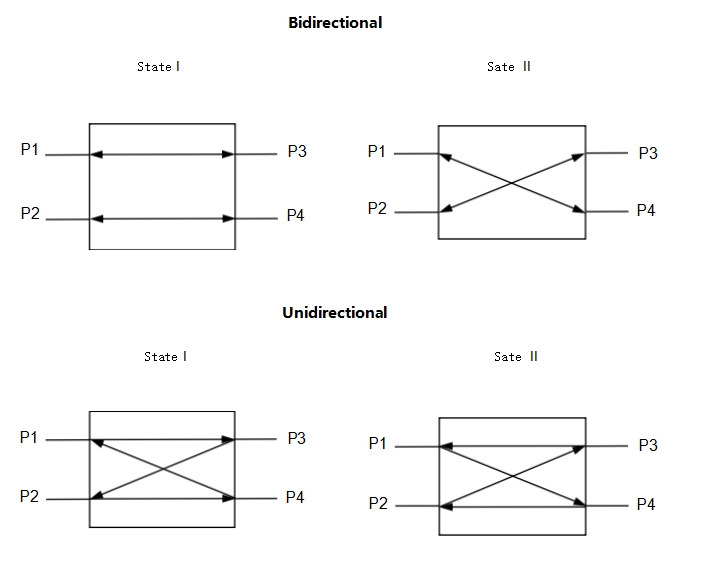

Functional Diagram

Ordering Reference Information

YFS-M2x2-□-□-□-□-□-□-□

—□

—☑

Switch Type

Fiber Type

Voltage

Wavelength

Loose Tube Type

Fiber Length

Connector

B：

Bidirectional

U：

Unidirectional

SM：

SM ，9/125

X：

Others

2.5：

2.5V

5：

5.0V

X：

Others

1550：

1550nm

X：

Others

250：

250um

900：

900um

X：

Others

05：

0.5m±5cm

10：

1.0m±5cm

X：

Others

OO：None

FC：FC/PC

FA：FC/APC

SC：SC/PC

SA：SC/APC

LC：LC/PC

X：Others
